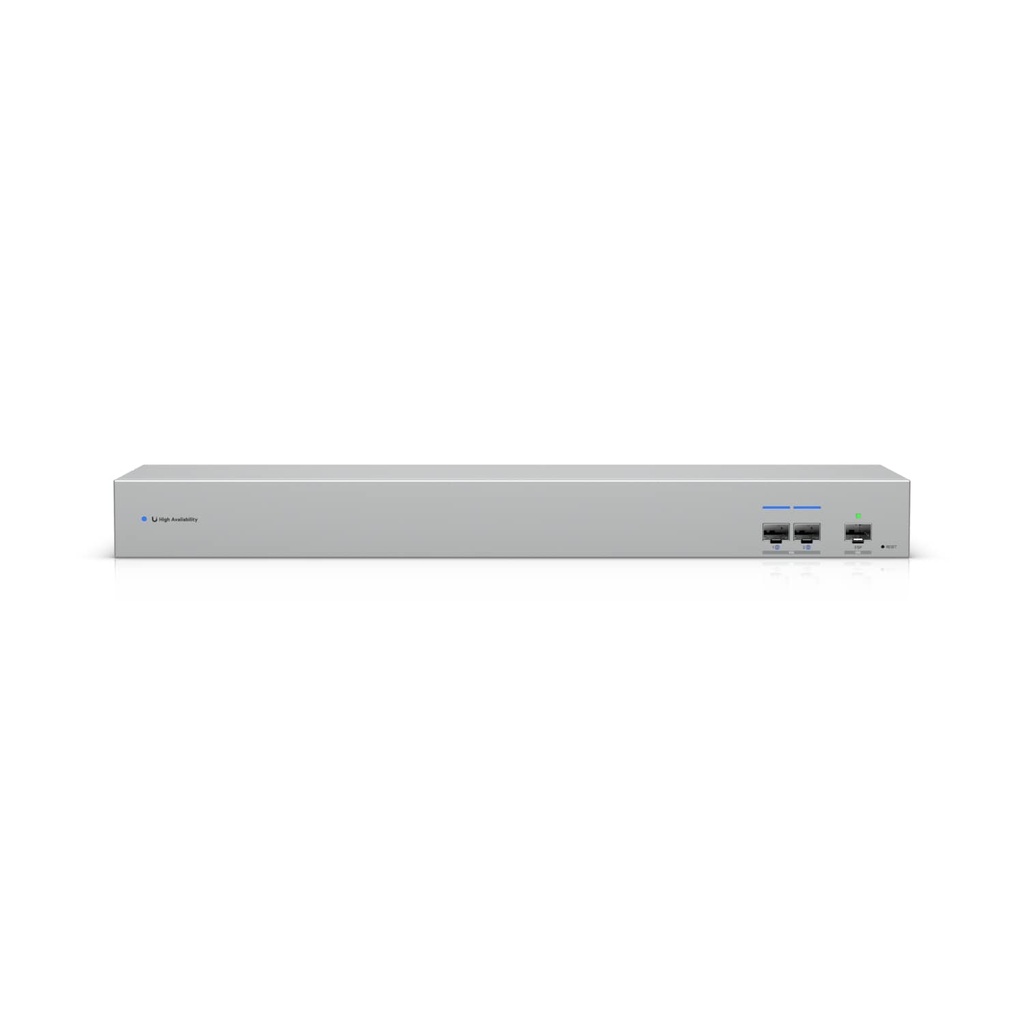

Ubiquiti WAN Switch, 10G SFP+ WAN Switch Linking Two Shadow Mode High Availability UniFi Gateways To Single ISP

Ubiquiti WAN Switch

SKU: USW-WAN

Description:
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

Features:

• Combine with Shadow Mode High Availability to ensure uninterrupted connectivity
• (1) 10G SFP+ ISP uplink and (2) 10G SFP+ downlink ports
• (2) AC inputs for power redundancy
• (1) GbE port for management with UniFi Network
• *Use an additional USW-WAN switch for ISP failover deployments.

Category: Network - UniFi / Switching

Overview

• Dimensions: 442.4 x 120 x 43.7 mm
  (17.4 x 4.72 x 1.7")
• Port Layout
• 1 GbE RJ45: 1
  (1G/100M/10M)
• 10G SFP+: 3
  (10G/1G)
• Redundancy: (2) AC inputs
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 20 Gbps
• Total Non-Blocking Throughput: 10 Gbps
• Forwarding Rate: 15 Mpps

Hardware

• Max. Power Consumption: 13W

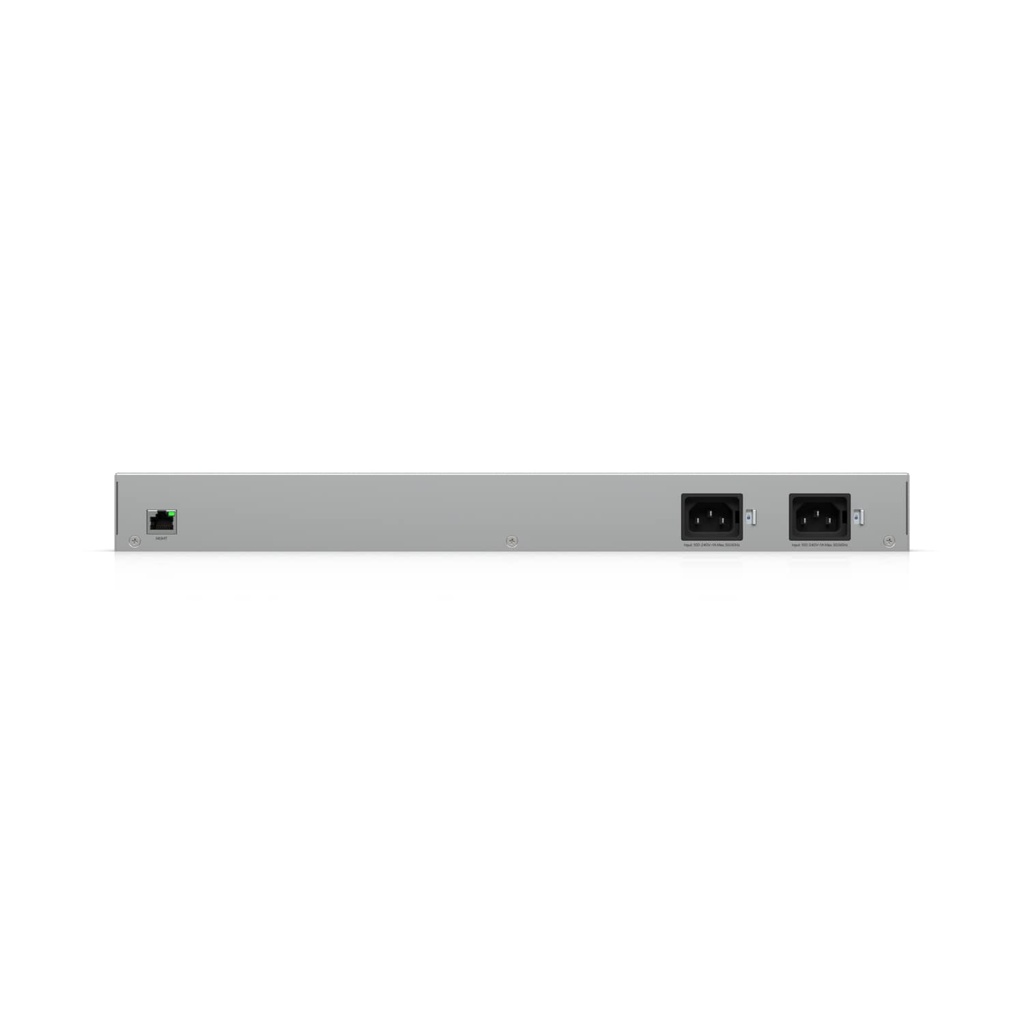

• Power Method: (2) Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: AC input
• Power Supply: (2) AC/DC, internal, 36W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
• Weight: Without mounting brackets: 2.2 kg (4.85 lb)
  With mounting brackets: 2.3 kg (5.1 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• ESD Protection: Air: ± 16kV, contact: ± 22kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• LEDs
• Ethernet: Yes
• SFP+: Yes
• System: Yes
• Certifications: CE, FCC, IC, Anatel: 03715-25-08356
• NDAA Compliant: Yes

Software

• Application Requirements
• UniFi Network: Version 9.1.119 and later
