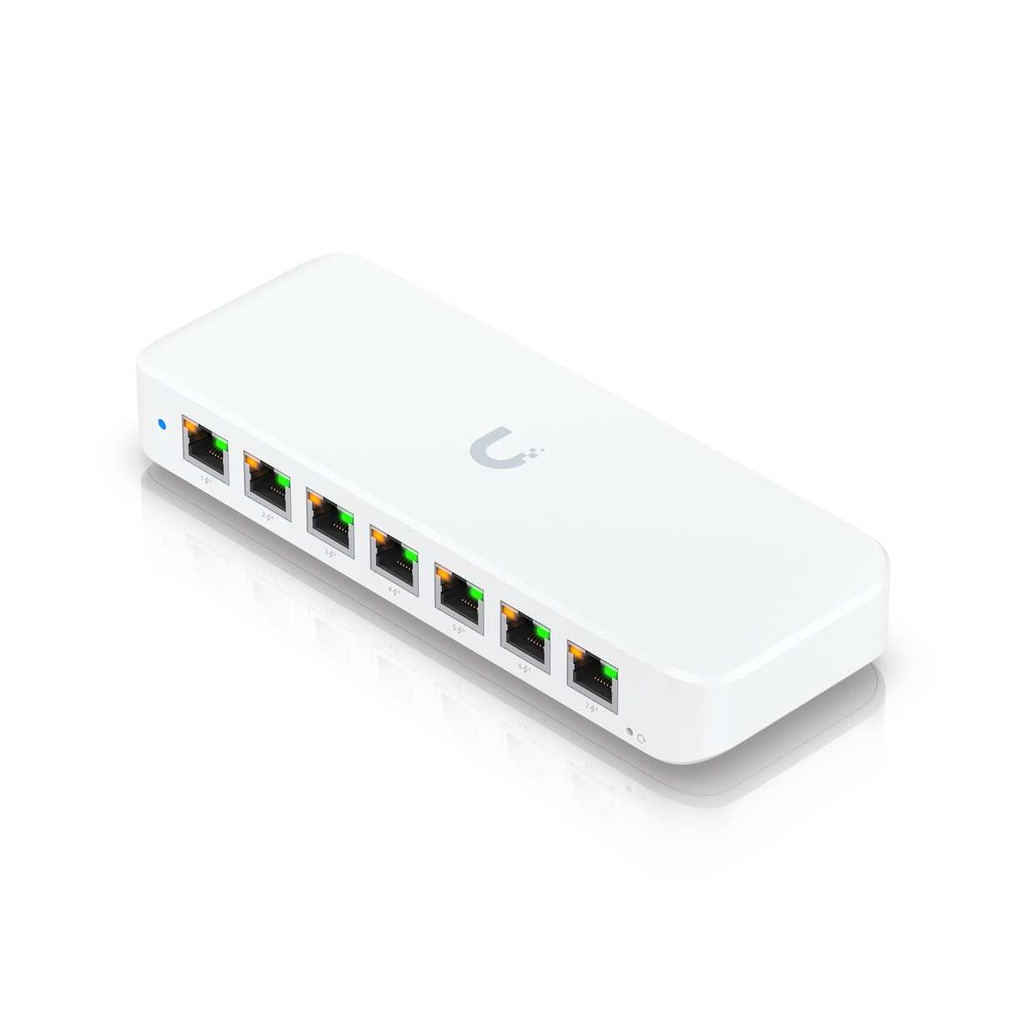

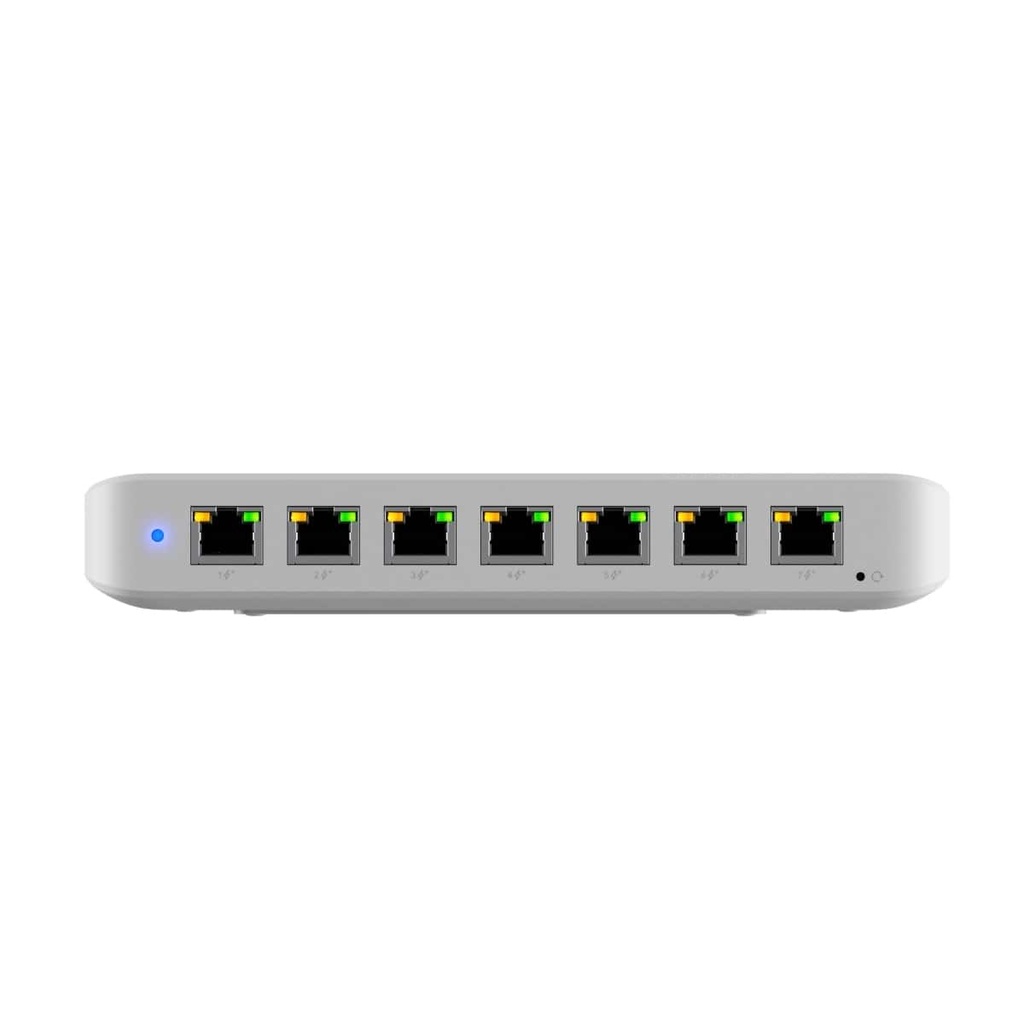

Ubiquiti Ultra 60W, Compact 8-port Layer 2 GbE PoE Switch, Versatile Mounting, 7 GbE PoE+ Output ports, 1 GbE Port, Includes PSU,

Ubiquiti Ultra 60W

SKU: USW-Ultra-60W

Description: A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options.

Features:

• (7) GbE PoE+ output ports
• (1) GbE port with optional PoE++ input

— 52W PoE availability with the included AC power adapter
— 42W PoE availability with PoE++ input
— 17W PoE availability with PoE+ input
— 8W PoE availability with PoE input

• Dimensions: 202.9 x 76 x 33 mm (8 x 3 x 1.3")
• Weight

-Device: 320 g (11.3 oz)
-Wall mount: 45 g (1.6 oz)
-60W adapter: 330 g (11.6 oz)

Category: Network - UniFi / Switching

Overview

• Dimensions: 203 x 76 x 33 mm
  (8 x 3 x 1.3")
• Port Layout
• 1 GbE RJ45: 8 (7 PoE+; 1 PoE++ input)
  (1G/100M/10M) (PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: PoE++ input: 42W
  PoE+ input: 16W
  60W PoE adapter input: 42W
  60W AC adapter input: 52W
  210W AC adapter input: 202W (At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F))
• Form Factor: Compact desktop, wall, magnetic

Performance

• Switching Capacity: 16 Gbps
• Total Non-Blocking Throughput: 8 Gbps
• Forwarding Rate: 12 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 4,000

Layer 2 Features

• STP & RSTP: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• Loop Protection: Yes

Hardware

• PoE Ports
• PoE+: 7
• PoE++: 1
• Max. PoE Wattage per Port by PSE
• PoE+: 30W
• Max. Power Consumption: 9W (Excluding PoE Output) with PoE input
  8W (Excluding PoE Output) with adapter input
  210W (Including PoE Output) with 210W AC adapter input
• Power Method: (1) AC/DC adapter (Included)
  (1) PoE++
• Power Input Method: DC Input
  PoE
• Power Supply: AC/DC, external, 60W
• Supported Voltage Range: 50–57V DC/PoE
• Management: Ethernet
• Heat Dissipation: 31 BTU/hr (Excluding PoE Output)
• Weight: Device: 320 g (11.3 oz)
  Wall mount: 45 g (1.6 oz)
  Adapter: 330 g (11.6 oz)
• Enclosure Material: Polycarbonate
• Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F)
  60W AC adapter input: -20 to 45° C (-4 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06367-24-08356

Software

• Application Requirements
• UniFi Network: Version 8.0.7 and later
