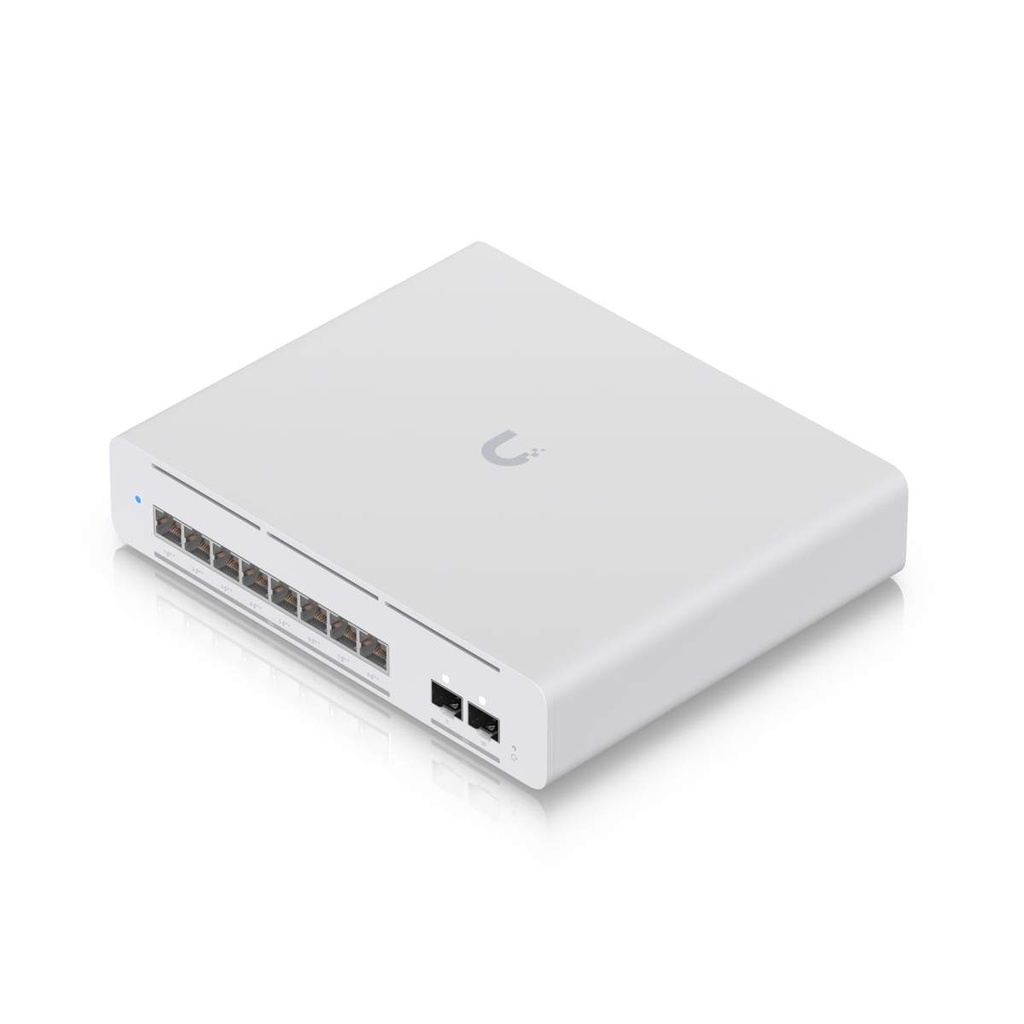

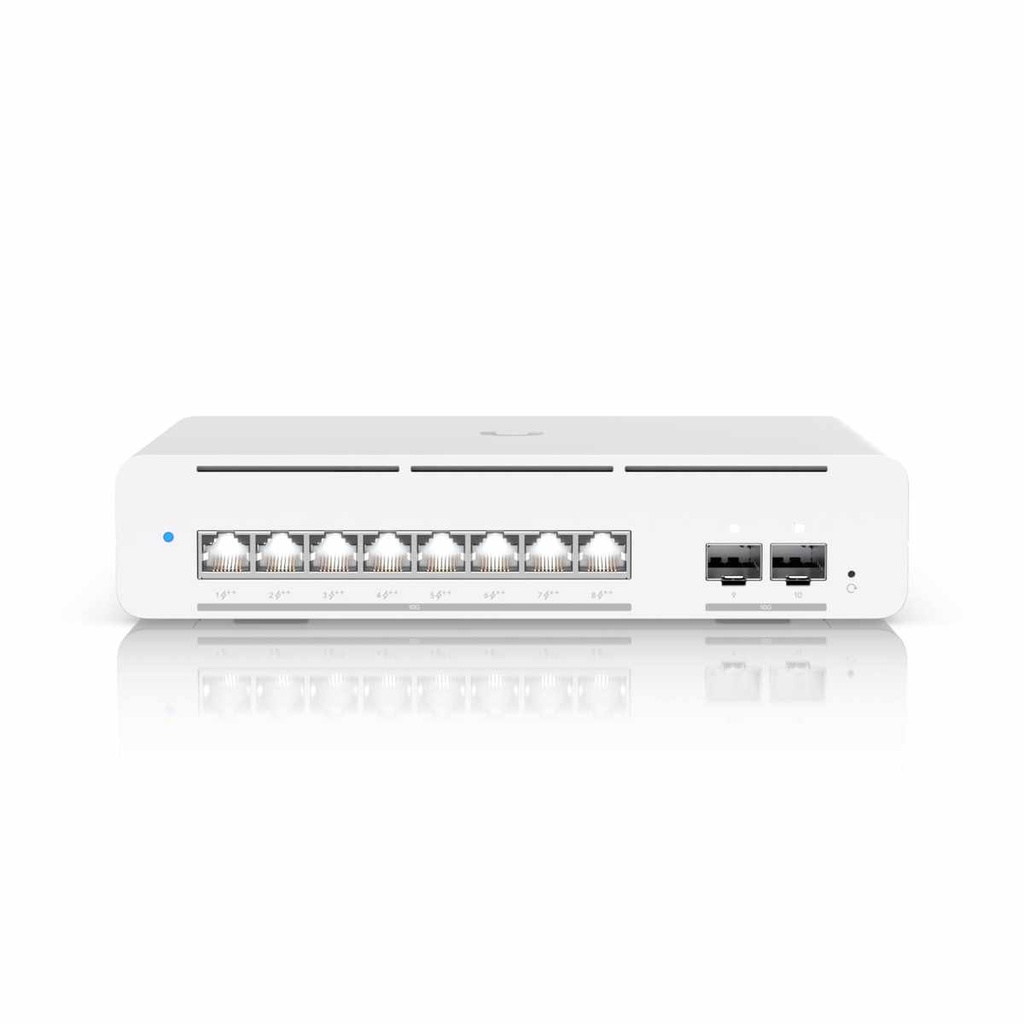

Ubiquiti Pro XG 8 PoE, Compact Desktop/Wall-mountable, Professional-grade 8-port, Layer 3 Etherlighting PoE++ Switch With (8) 10 GbE, (2) 10G SFP+

Ubiquiti Pro XG 8 PoE

SKU: USW-Pro-XG-8-PoE

Description:
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

Features:

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (8) 10 GbE PoE++ ports
• (2) 10G SFP+ ports
• 155W total PoE availability
• Versatile desktop and wall, mounting
• *Pair with UniFi Enterprise Patch Cable for optimal brightness.

Category: Network - UniFi / Switching

Overview

• Dimensions: 210.4 x 173.8 x 43.7 mm
  (8.28 x 6.84 x 1.7")
• Port Layout
• 10 GbE RJ45: 8 (All PoE++)
  (10G/5G/2.5G/1G/100M)
• 10G SFP+: 2
  (10G/1G)
• Max. PoE Output: Up to PoE++
• Total PoE Availability: 155W
• Layer 3: Yes
• Form Factor: Compact desktop, wall
• Etherlighting™: Yes

Performance

• Switching Capacity: 200 Gbps
• Total Non-Blocking Throughput: 100 Gbps
• Forwarding Rate: 149 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 2 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE++: 8
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W
• Max. Power Consumption: 61W (Excluding PoE output)
  210W (Including PoE output)
• Power Method: AC/DC Adapter (included)
• Power Input Method: DC input
• Power Supply: AC/DC, external, 210W
• Supported Voltage Range: 50–57V DC
• Management: Ethernet
• Weight: 1.6 kg (3.5 lb)
• Enclosure Material: SGCC steel
• Mount Material: Polycarbonate
• ESD Protection: Air: ± 30kV, contact: ± 30kV
• Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• Ethernet: Yes
• SFP+: Yes
• LEDs
• System: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 04322-25-08356

Software

• Application Requirements
• UniFi Network: Version 9.0.114 and later
