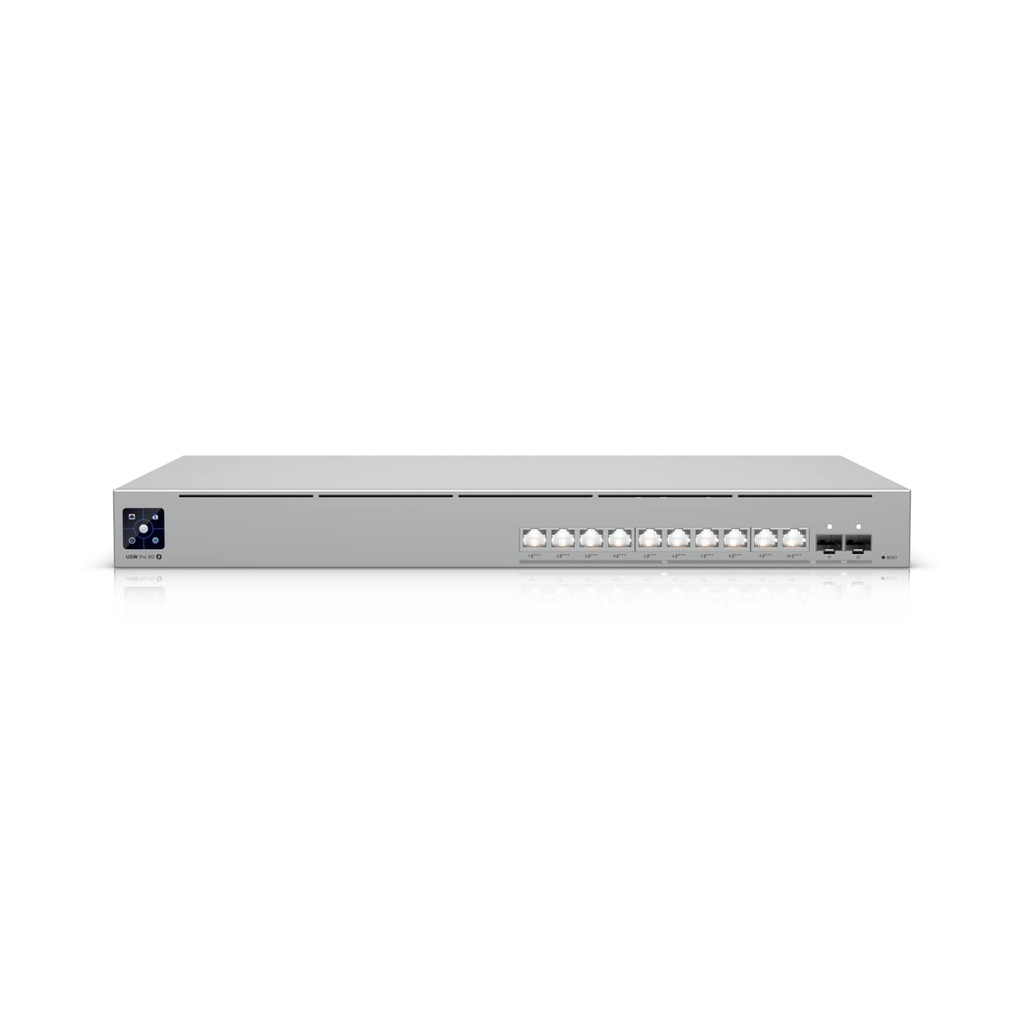

Ubiquiti Pro XG 10 PoE, 1U,Professional-grade 10-port, Layer 3 Etherlighting PoE+++ Switch,(10) 10 GbE and (2) 10G SFP+ Ports,

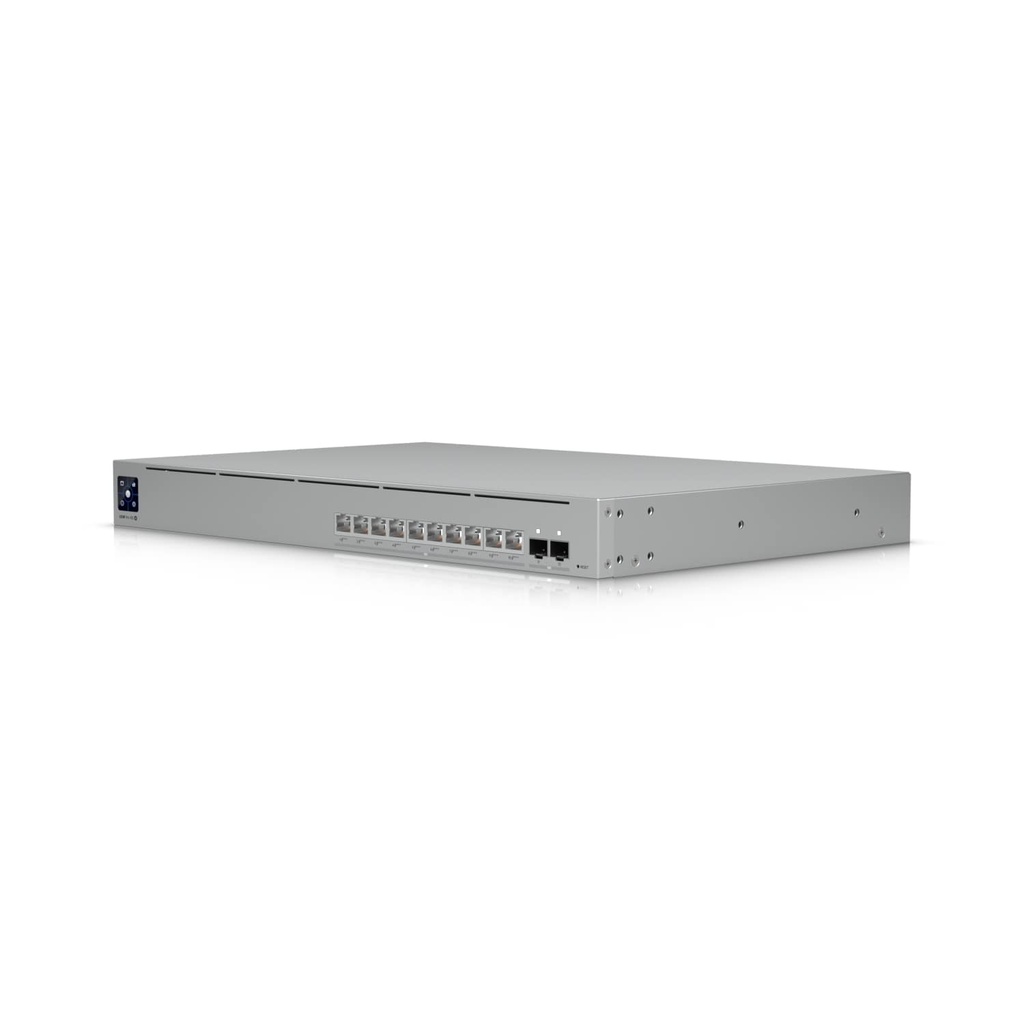

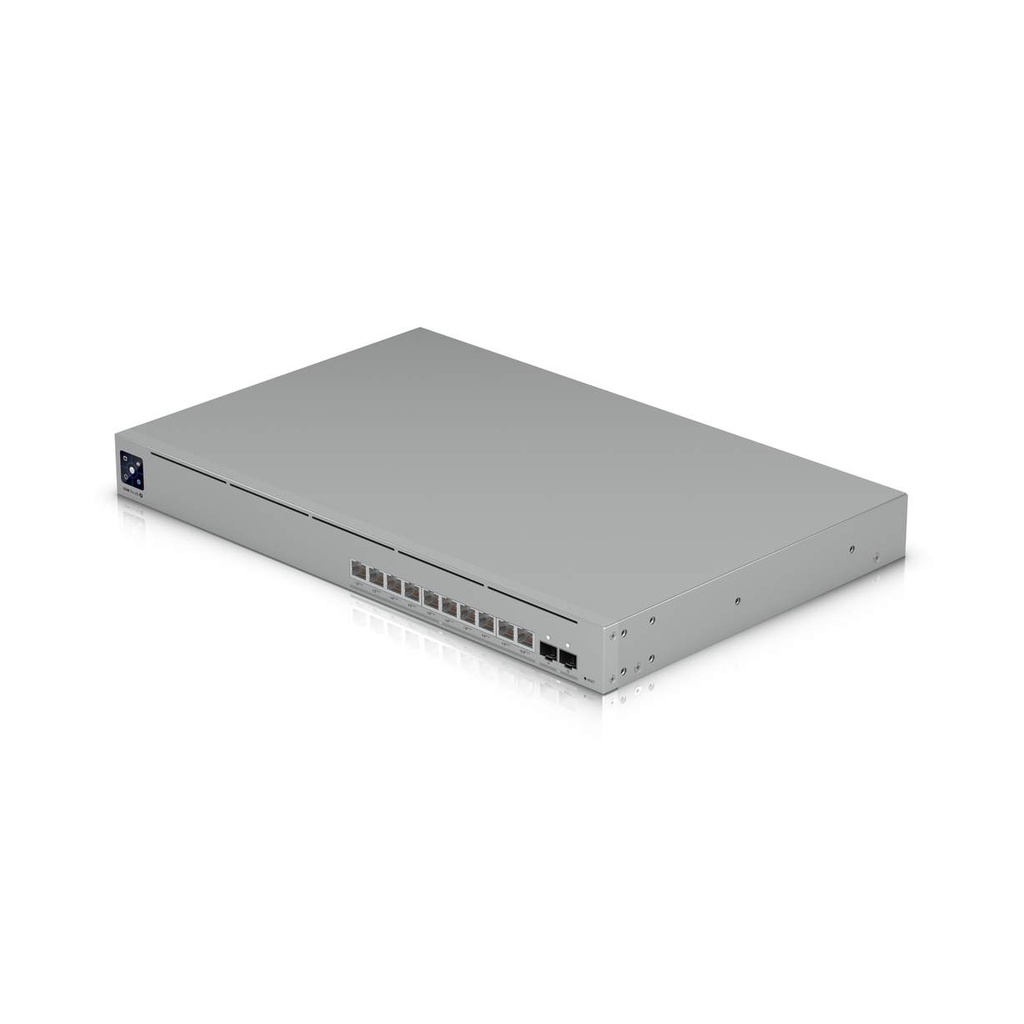

Ubiquiti Pro XG 10 PoE

SKU: USW-Pro-XG-10-PoE (400W)

Description:
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Features:

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (10) 10 GbE PoE+++ ports
• (2) 10G SFP+ ports
• DC power backup ready**
• 400W total PoE availability
• *Pair with UniFi Enterprise Patch Cable for optimal brightness.
• **Requires UniFi RPS.

Category: Network - UniFi / Switching

Overview

• Dimensions: 442.4 x 285 x 44 mm
  (17.4 x 11.2 x 1.7")
• Port Layout
• 10 GbE RJ45: 10 (All PoE+++)
  (10G/5G/2.5G/1G/100M)
• 10G SFP+: 2
  (10G/1G)
• Max. PoE Output: Up to PoE+++ (802.3bt Type 4, Class 8)
• Total PoE Availability: 400W
• Redundancy: DC Power Backup (With UniFi RPS)
• Layer 3: Yes
• Form Factor: Rack mount (1U)
• Etherlighting™: Yes

Performance

• Switching Capacity: 240 Gbps
• Total Non-Blocking Throughput: 120 Gbps
• Forwarding Rate: 179 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 2 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+++: 10
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W
• PoE+++: 90W
• Max. Power Consumption: 65W (Excluding PoE output)
  520W (Including PoE output)
• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
  (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 550W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Weight: Without mounting brackets: 4.6 kg (10.14 lb)
  With mounting brackets: 4.7 kg (10.36 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2"")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 30kV, contact: ± 30kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• Ethernet: Yes
• SFP+: Yes
• LEDs
• RPS: Yes
• System: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 05660-25-08356

Software

• Application Requirements
• UniFi Network: Version 9.1.120 and later
