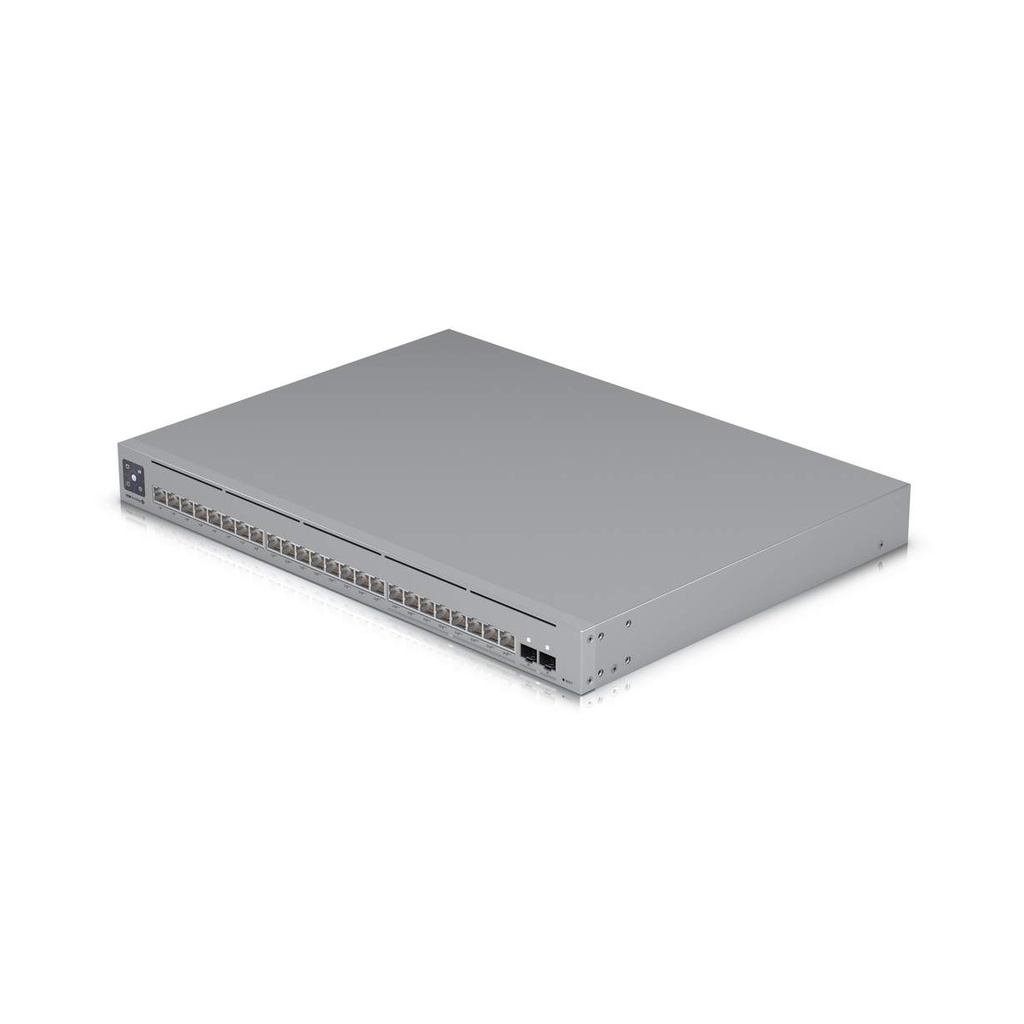

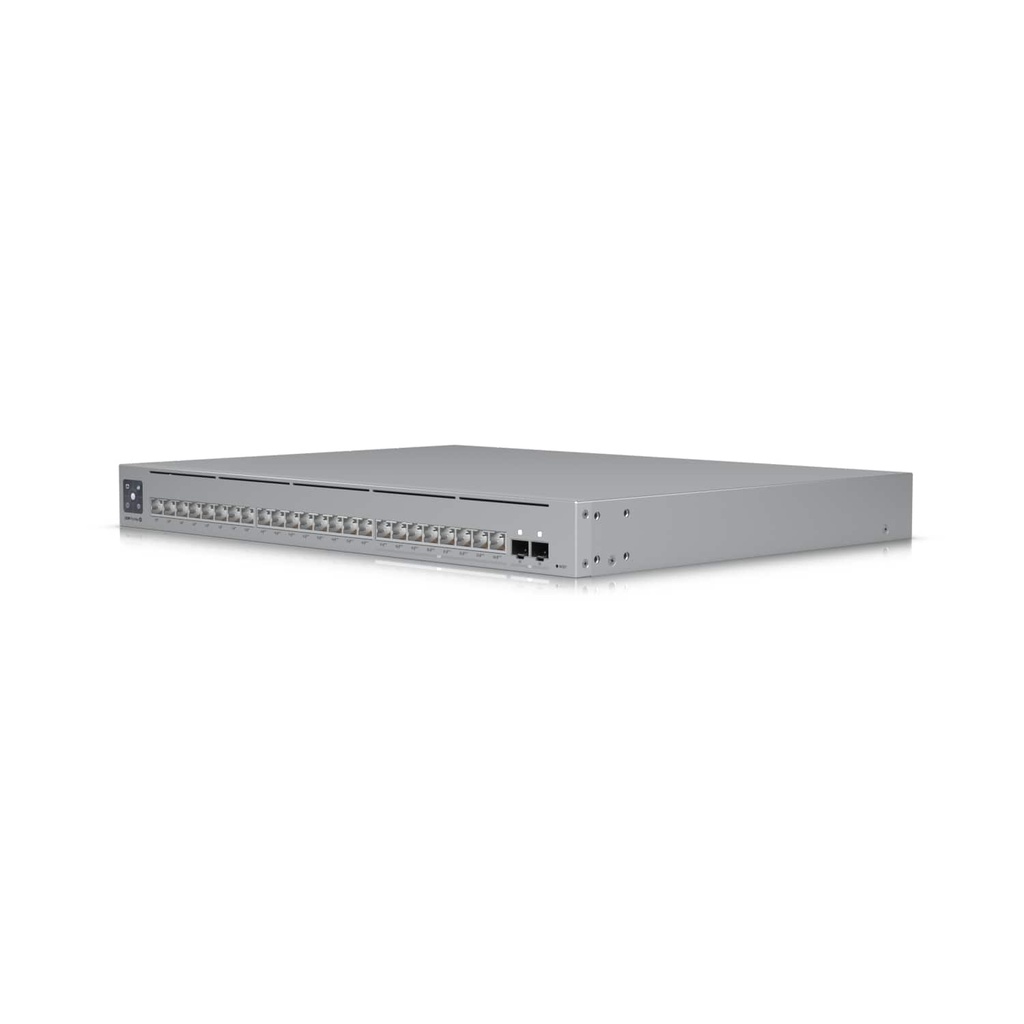

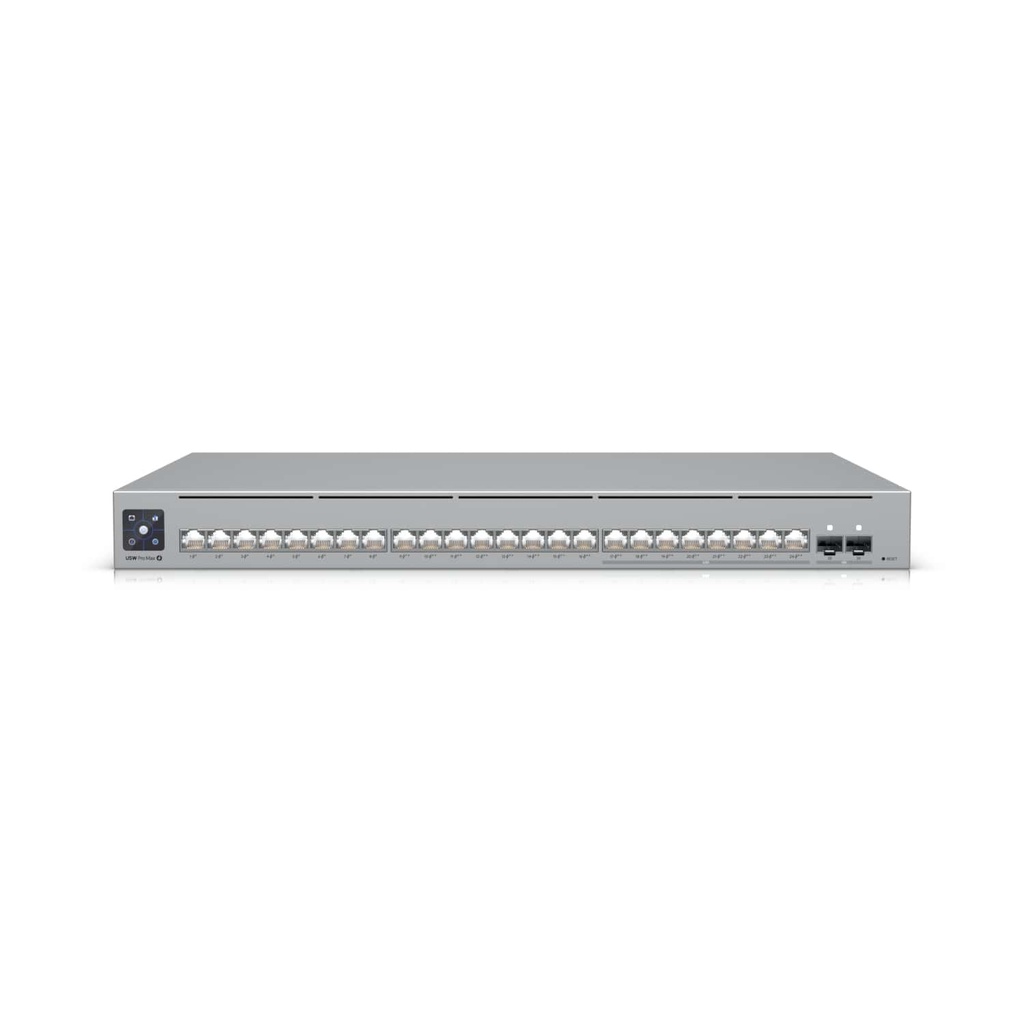

Ubiquiti UniFi Network, 24-Port, POE 400W, (8) 2.5GbEPoE++, (16) GbE Ports - (8) PoE+, (8) PoE++, (2)10G SFP+, Layer3, Rack Mount,

Ubiquiti Professional Max 24 PoE

SKU: USW-Pro-Max-24-PoE

Description: A 24-port, Layer 3 Etherlighting switch capable of high-power PoE++ output.

Features:

• Etherlighting ports that illuminate to indicate port location, speed/link, and VLAN*
• (8) 2.5 GbE PoE++ ports
• (16) GbE ports including (8) PoE+ and (8) PoE++
• (2) 10G SFP+ ports
• DC power backup ready
• 400W total PoE availability

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 325 x 44 mm
  (17.4 x 12.8 x 1.7")
• Port Layout
• 1 GbE RJ45: 16 (8 PoE+; 8 PoE++)
  (1G/100M/10M)
• 2.5 GbE RJ45: 8 (All PoE++)
  (2.5G/1G/100M/10M)
• 10G SFP+: 2
  (10G/1G)
• Max. PoE Output: Up to PoE++
• Total PoE Availability: 400W
• Redundancy: DC Power Backup (With UniFi RPS)
• Layer 3: Yes
• Form Factor: Rack mount (1U)
• Etherlighting™: Yes

Performance

• Switching Capacity: 112 Gbps
• Total Non-Blocking Throughput: 56 Gbps
• Forwarding Rate: 83 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+: 8
• PoE++: 16
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 32W
• PoE++: 60W
• Max. Power Consumption: 50W (Excluding PoE Output)
  450W (Including PoE Output)

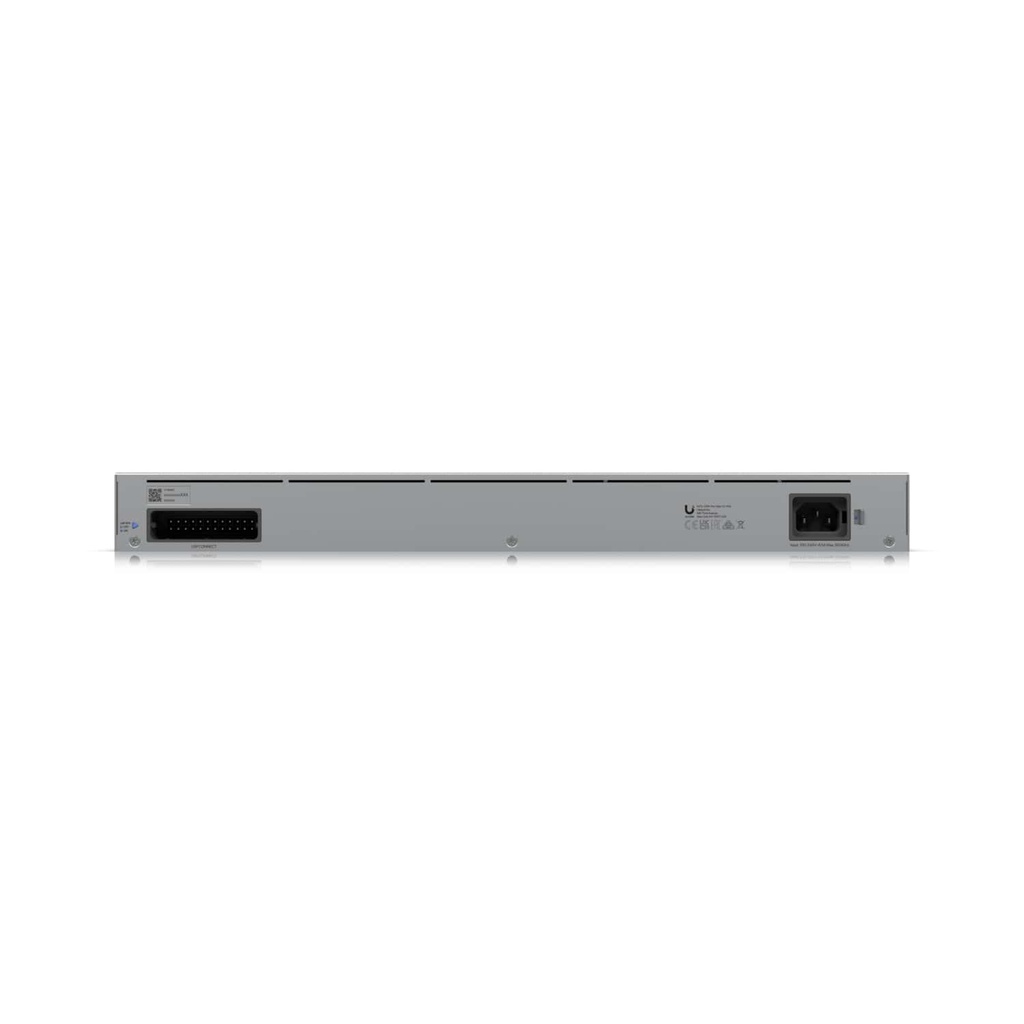

• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
  (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 550W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 119 BTU/hr (Excluding PoE Output)
• Weight: Without mounting brackets: 5.1 kg (11.3 lb)
  With mounting brackets: 5.2 kg (11.5 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• Ethernet: Yes
• SFP+: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06374-24-08356

Software

• Application Requirements
• UniFi Network: Version 8.0.24 and later
