Ubiquiti UniFi Network, UniFi Network, 8-Port, POE 120W, (4) GbE PoE+,(4) GbE PoE++ Ports, (1) GbE Port, Rack Mount,

Ubiquiti UniFi Network Mission Critical

SKU: USW-Mission-Critical

Description:A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.

Features:

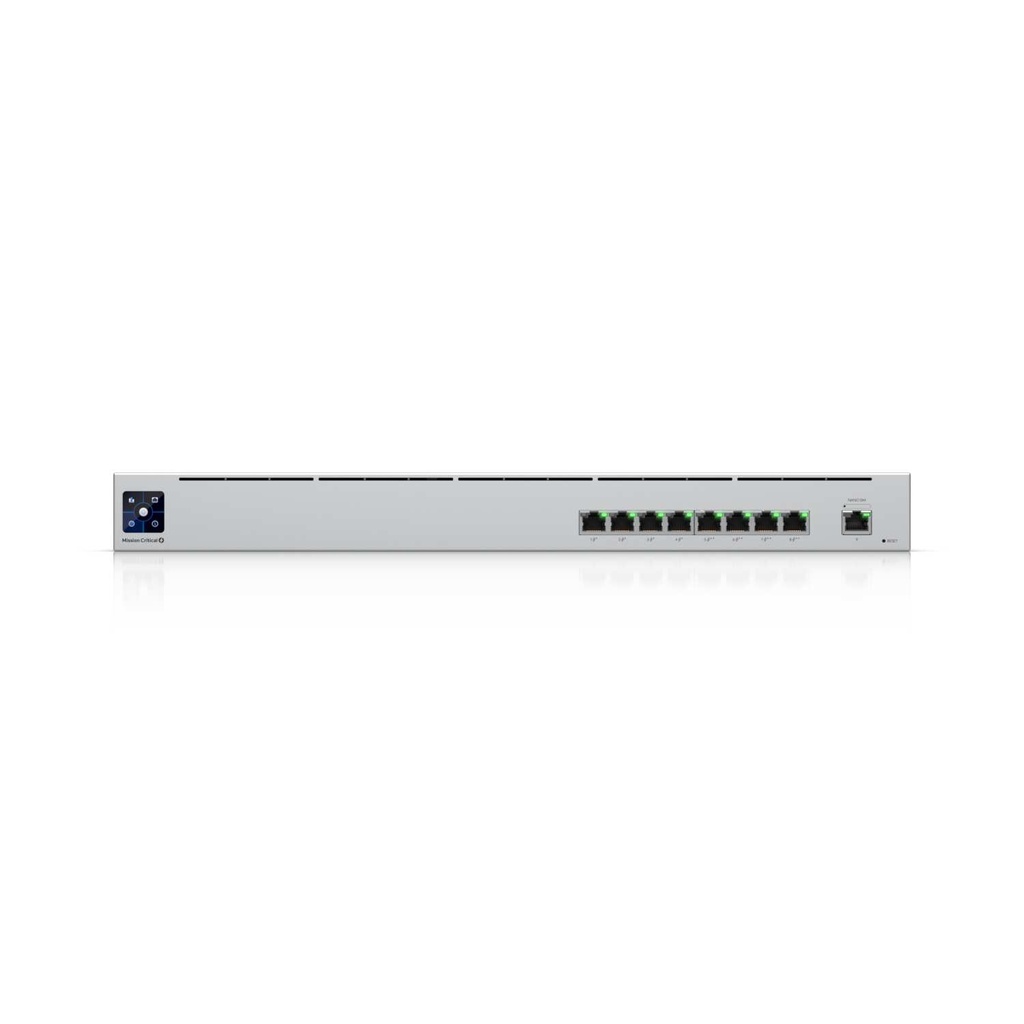

• (4) GbE, PoE+ RJ45 ports
• (4) GbE, PoE++ RJ45 ports
• (1) GbE RJ45 port

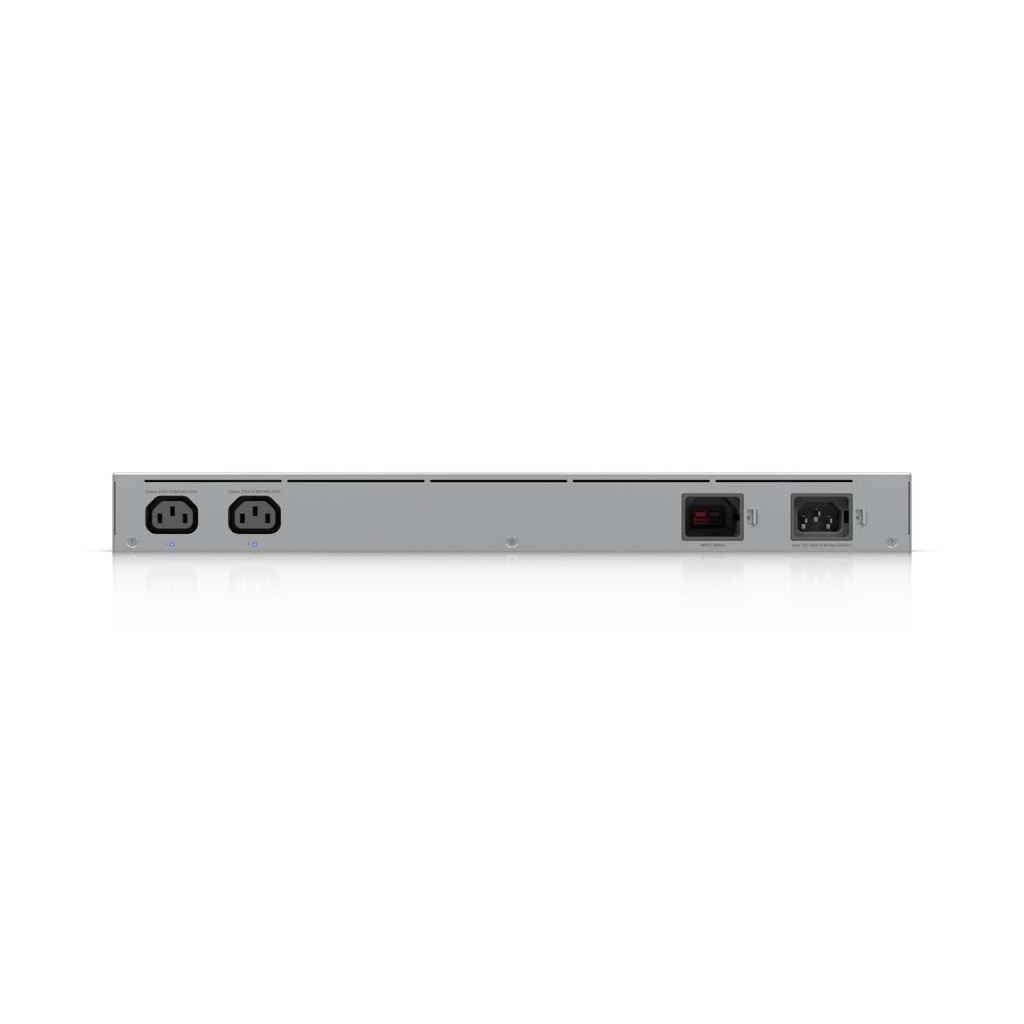

• (2) 230V, AC power outputs for a gateway and modem
• (1) DC terminal block for an external 48V DC battery (not included)
• Managed with the UniFi Network application: Version 6.2.26 and later

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 480 x 44 mm
  (17.4 x 18.9 x 1.7")
• Port Layout
• 1 GbE RJ45: 9 (4 PoE+; 4 PoE++)
  (1G/100M/10M)
• Max. PoE Output: Up to PoE++
• Total PoE Availability: 120W
• Redundancy: Battery Power Backup
• Layer 3: Yes
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 18 Gbps
• Total Non-Blocking Throughput: 9 Gbps
• Forwarding Rate: 13 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+: 4
• PoE++: 4
• Max. PoE Wattage per Port by PSE
• PoE+: 32W
• PoE++: 60W
• Max. Power Consumption: 50W (Excluding PoE Output)
  240W (Including PoE Output and AC Output)
• Power Method: Universal input, 100–240V AC, 50/60 Hz
  External battery input, 48V DC
• Power Input Method: AC input
  DC input (Backup)
• Power Supply: AC/DC, internal, 240W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 170.6 BTU/hr (Excluding PoE Output)
• Weight: Without mount: 9 kg (19.9 lb)
  With mount: 9.2 kg (20.3 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks
  Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
• LCM Display: 1.3" touchscreen
• ESD Protection: Air/contact: ± 24kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06679-25-08356

Software

• Application Requirements
• UniFi Network: Version 6.2.26 and later
