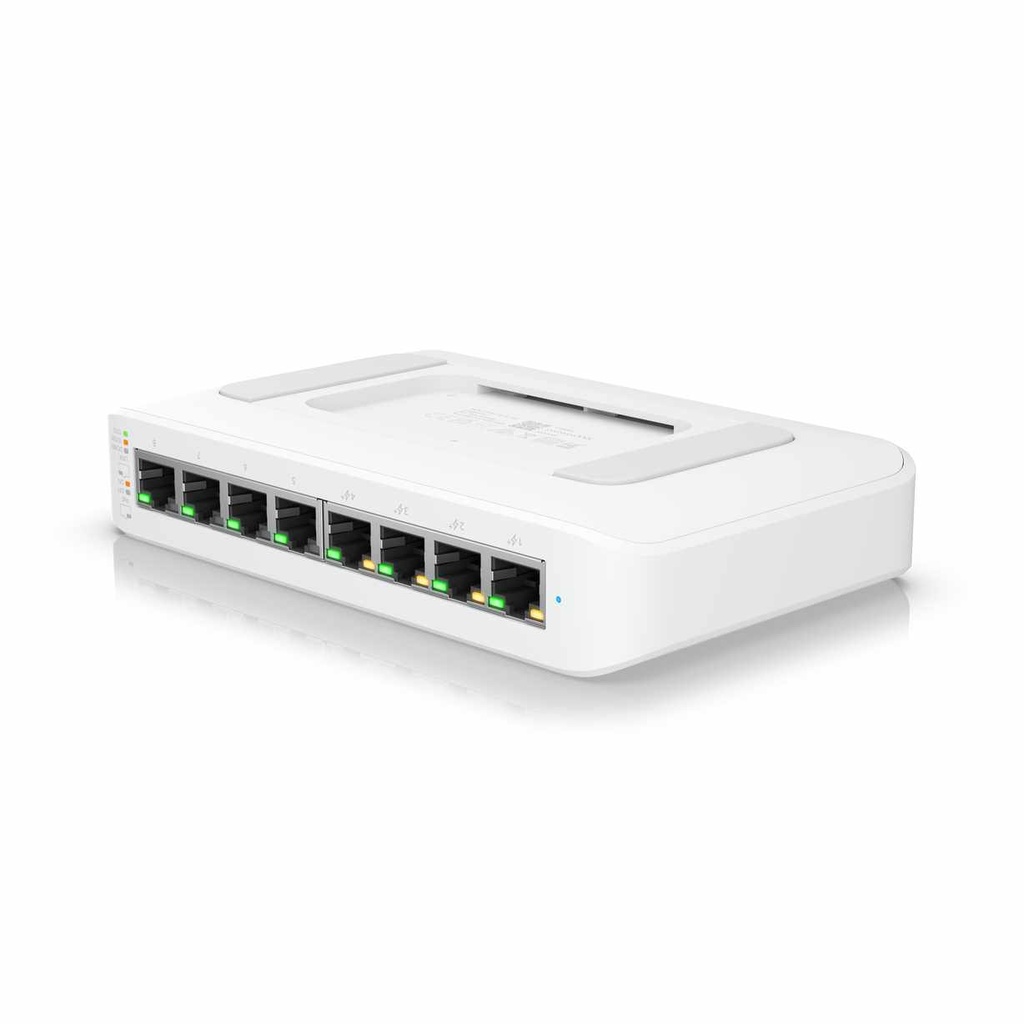

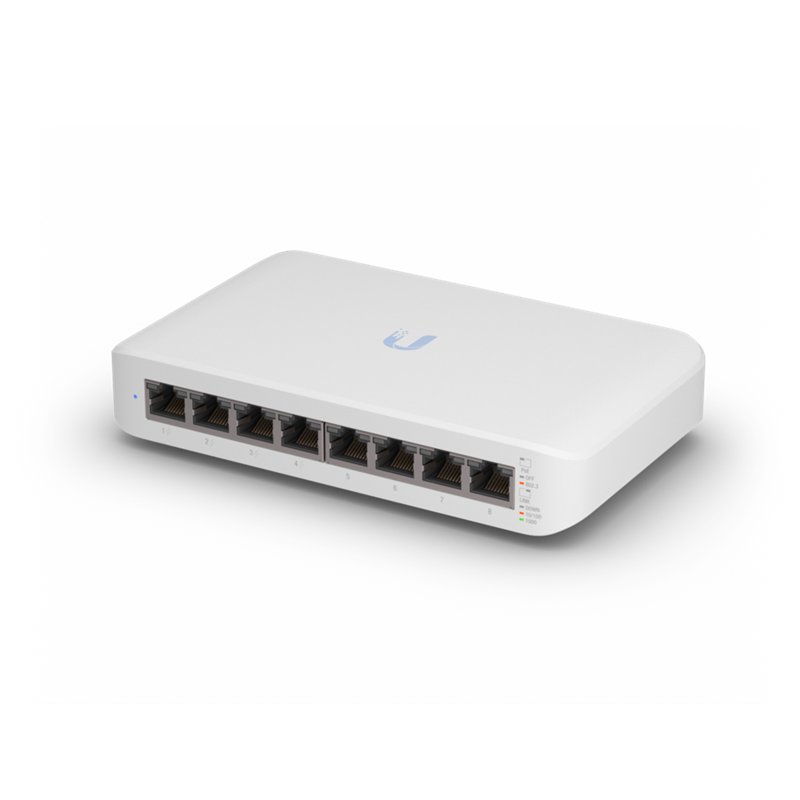

Ubiquiti UniFi Switch USW-Lite-8-POE, 4x PoE Output Ports, 52W PoE Supply, Fanless, Wall Mount Kit Included,

Ubiquiti Lite 8 PoE

SKU: USW-Lite-8-POE

Description:An 8-port, Layer 2 PoE switch supporting silent fanless cooling.

Features:

• (4) GbE PoE+, (4) GbE ports
• 52W total PoE availability*

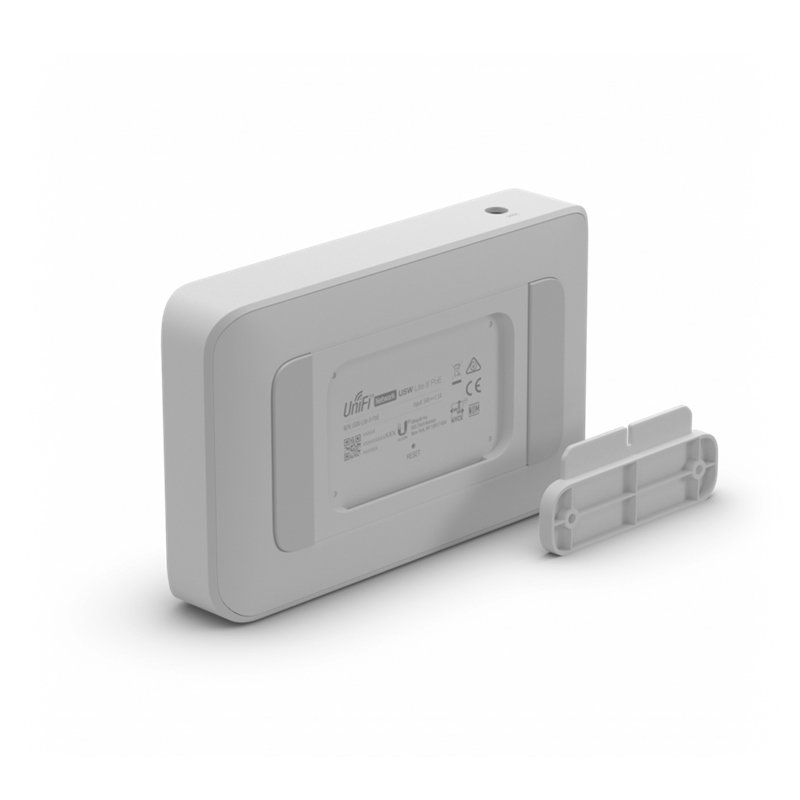

• Wall mountable

Category: Network - UniFi / Switching

Overview

• Dimensions: 99.6 x 163.7 x 31.7 mm
  (4 x 6.4 x 1.3")

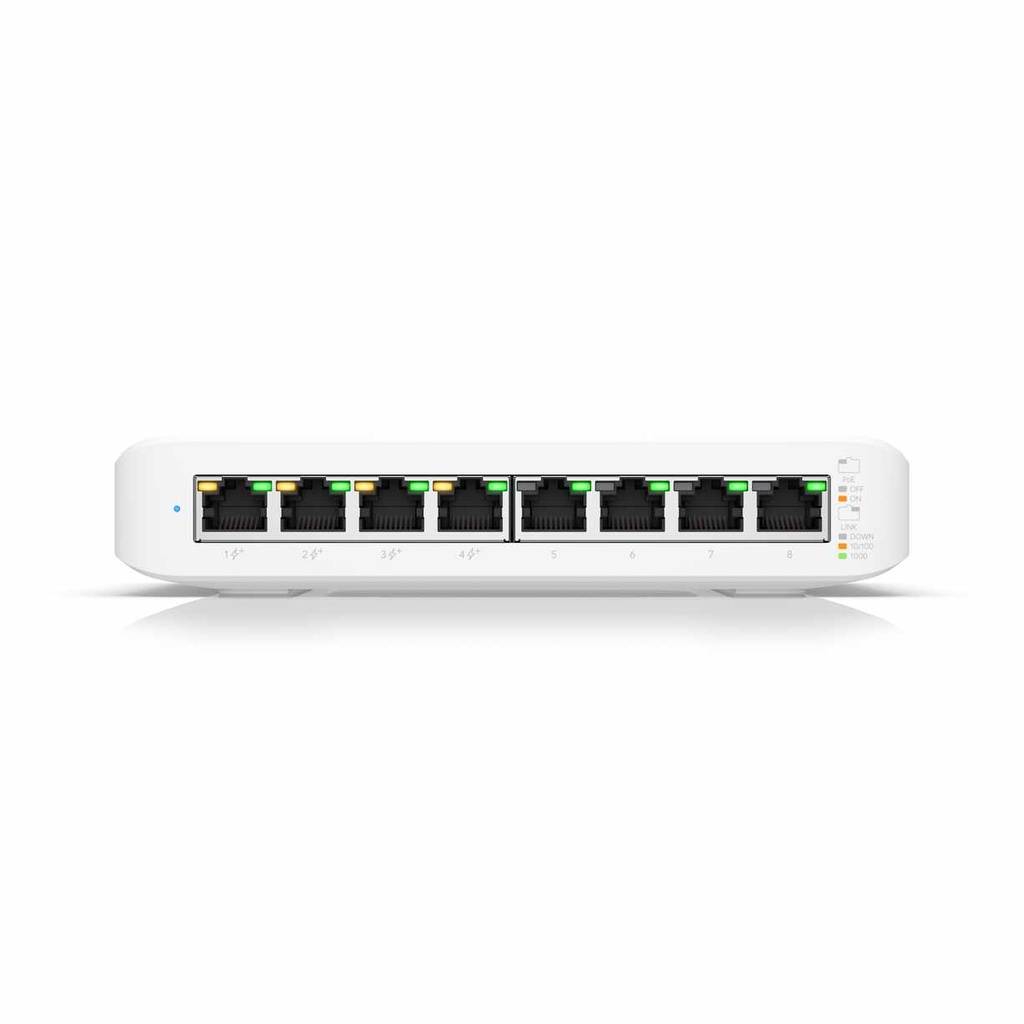

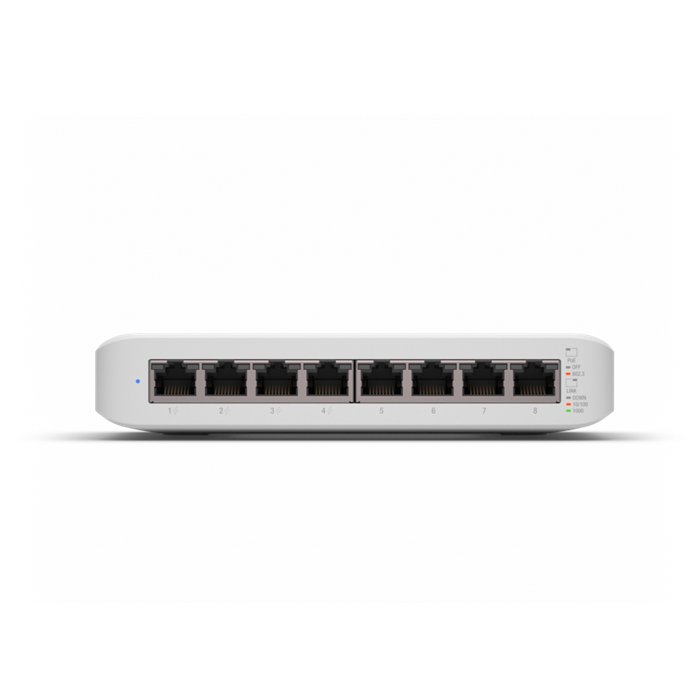

• Port Layout
• 1 GbE RJ45: 8 (4 PoE+)
  (1G/100M/10M)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: 52W (With an external 60W power adapter)
• Form Factor: Compact desktop, wall

Performance

• Switching Capacity: 16 Gbps
• Total Non-Blocking Throughput: 8 Gbps
• Forwarding Rate: 12 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+: 4
• Max. PoE Wattage per Port by PSE
• PoE+: 30W
• Max. Power Consumption: 8W (Excluding PoE Output)
  60W (Including PoE Output)

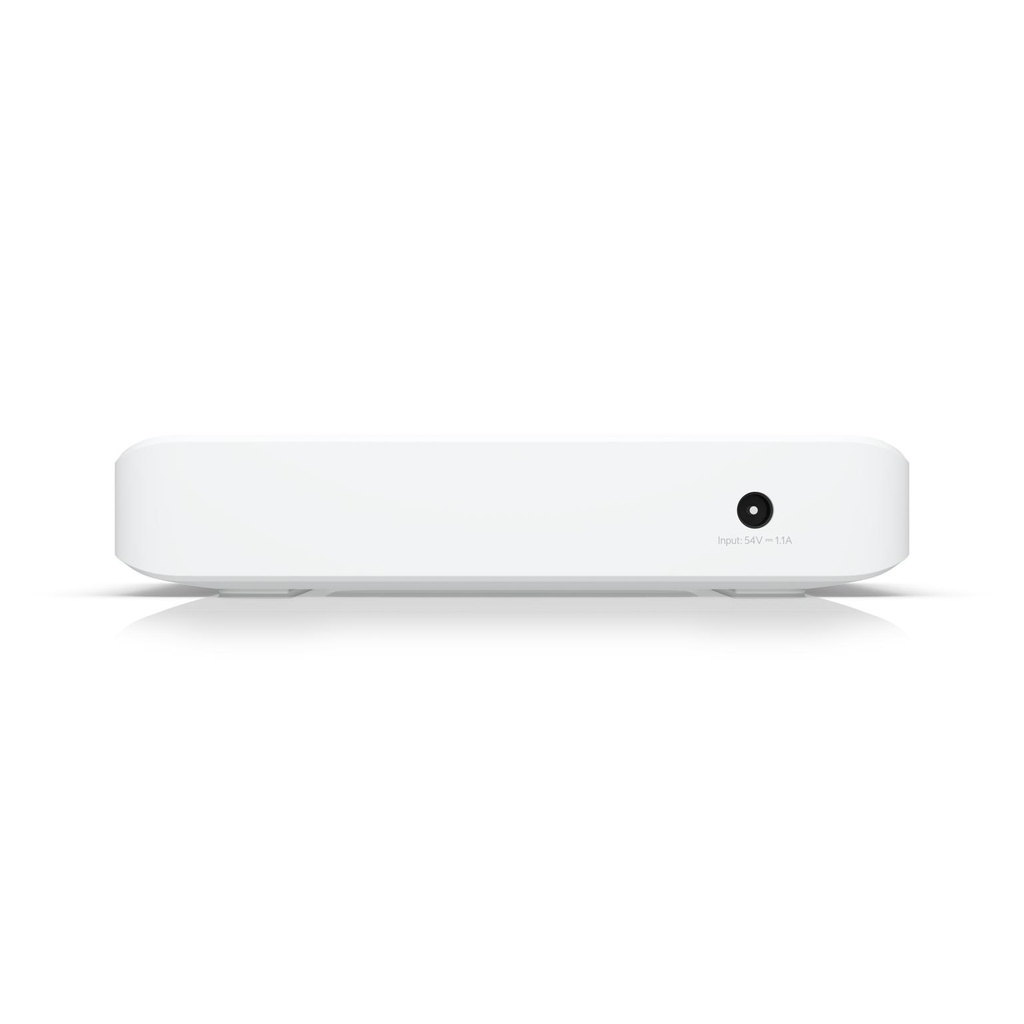

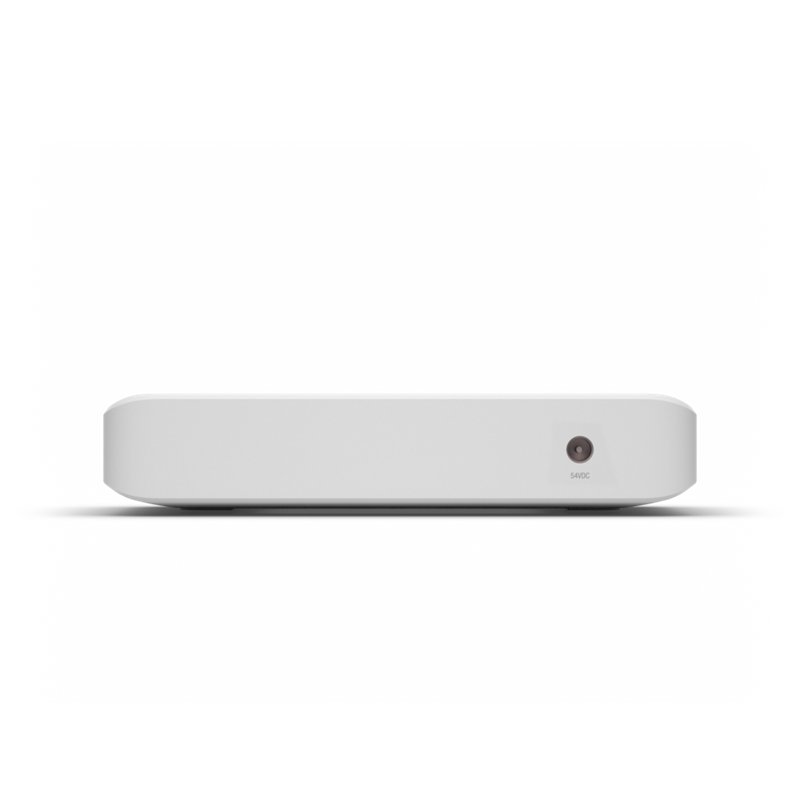

• Power Method: AC/DC Adapter (included)
• Power Input Method: DC input
• Power Supply: AC/DC, external, 60W
• Supported Voltage Range: 50–57V DC
• Management: Ethernet
• Heat Dissipation: 27.3 BTU/hr (Excluding PoE Output)
• Weight: 295 g (10.4 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Ambient Operating Temperature: -15 to 40° C (5 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 04479-21-08356

Software

• Application Requirements
• UniFi Network: Version 7.2.94 and later
