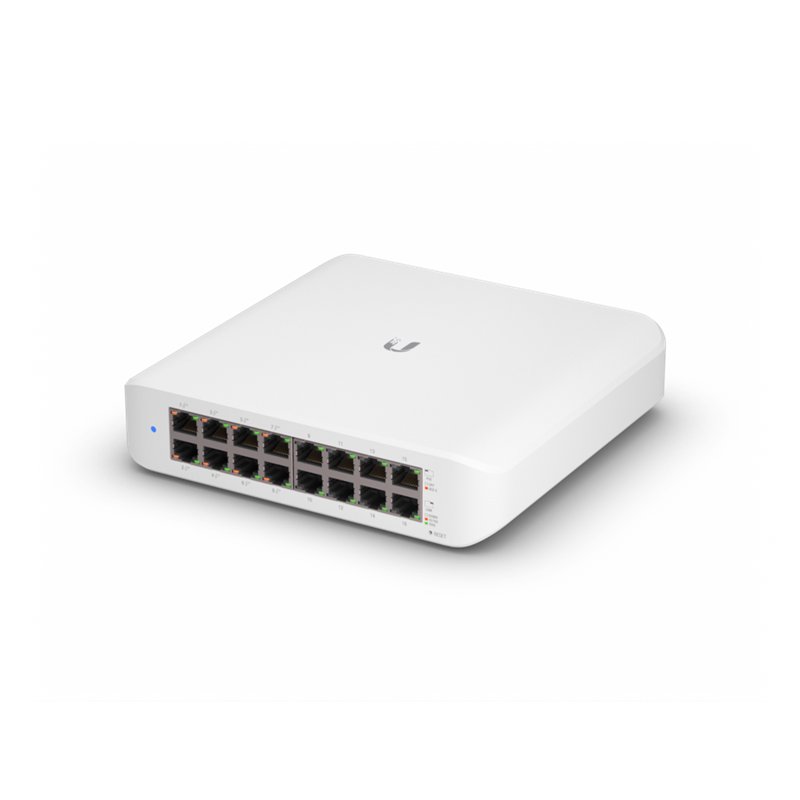

Ubiquiti UniFi Switch Lite 16 PoE, Layer 2, 16x GbE RJ45 Ports, 8x 802.3at PoE+ Ports, 45W PoE, Silent Operation, Wallmount Kit Include,

Ubiquiti Lite 16 PoE

SKU:USW-Lite-16-POE

Description: A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

Features:

• (8) GbE PoE+, (8) GbE ports
• 45W total PoE availability

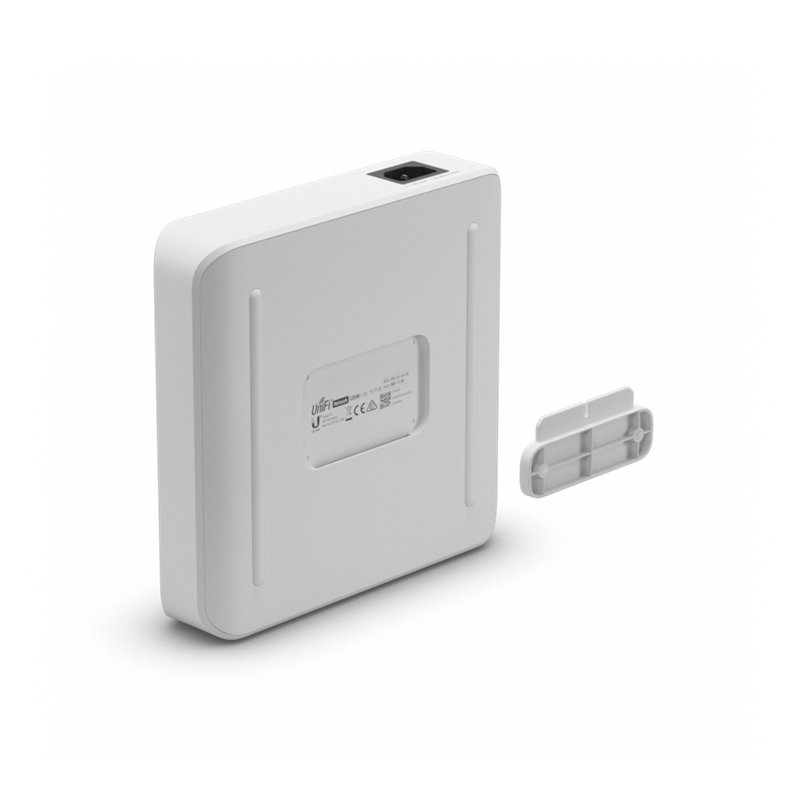

• Wall mountable

Category: Network - UniFi / Switching

Overview

• Dimensions: 192 x 185 x 44 mm
  (7.6 x 7.3 x 1.7")

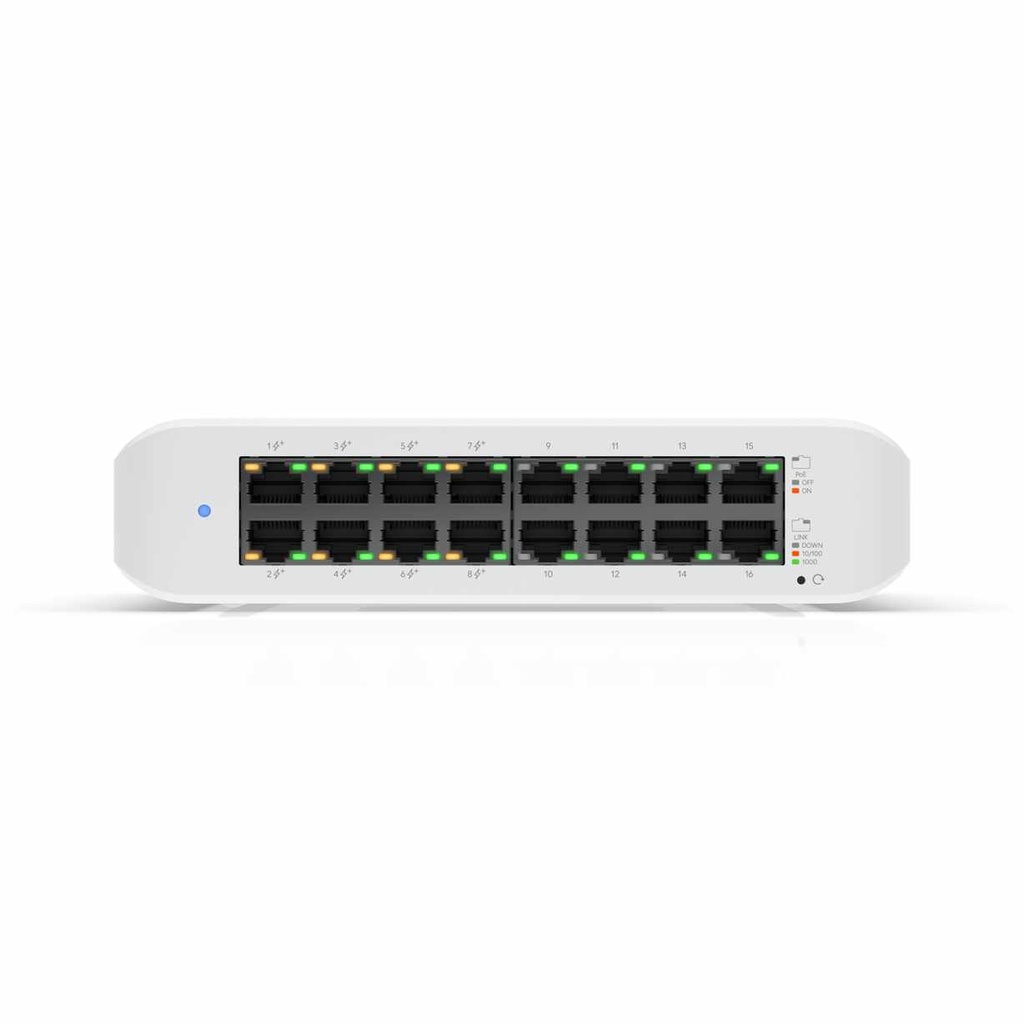

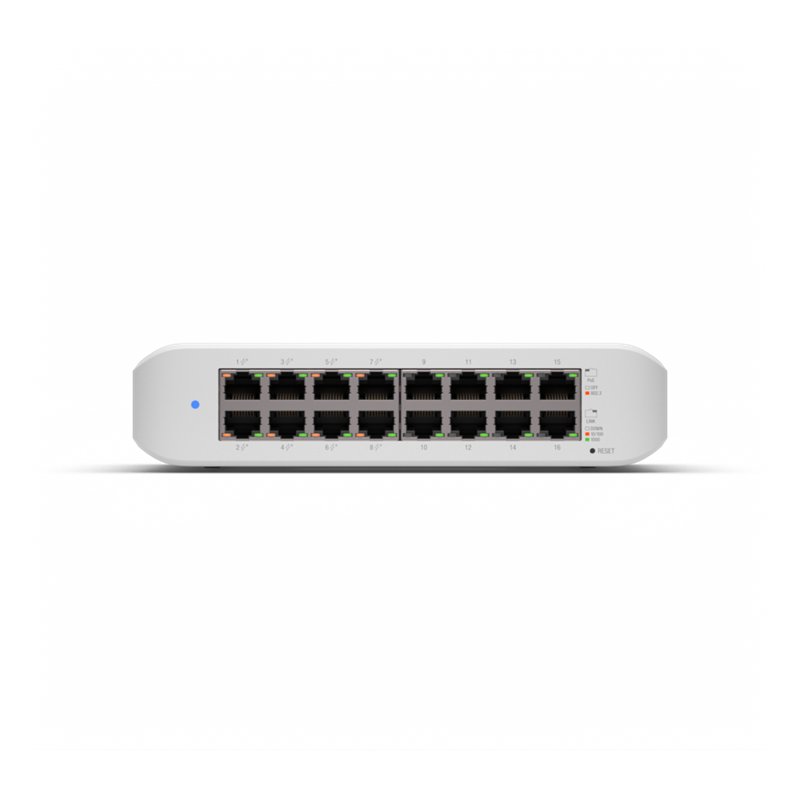

• Port Layout
• 1 GbE RJ45: 16 (8 PoE+)
  (1G/100M/10M)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: 45W
• Form Factor: Compact desktop, wall

Performance

• Switching Capacity: 32 Gbps
• Total Non-Blocking Throughput: 16 Gbps
• Forwarding Rate: 24 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+: 8
• Max. PoE Wattage per Port by PSE
• PoE+: 32W
• Max. Power Consumption: 15W (Excluding PoE Output)
  60W (Including PoE Output)
• Power Method: Universal input, 100–240V AC, 50/60 Hz

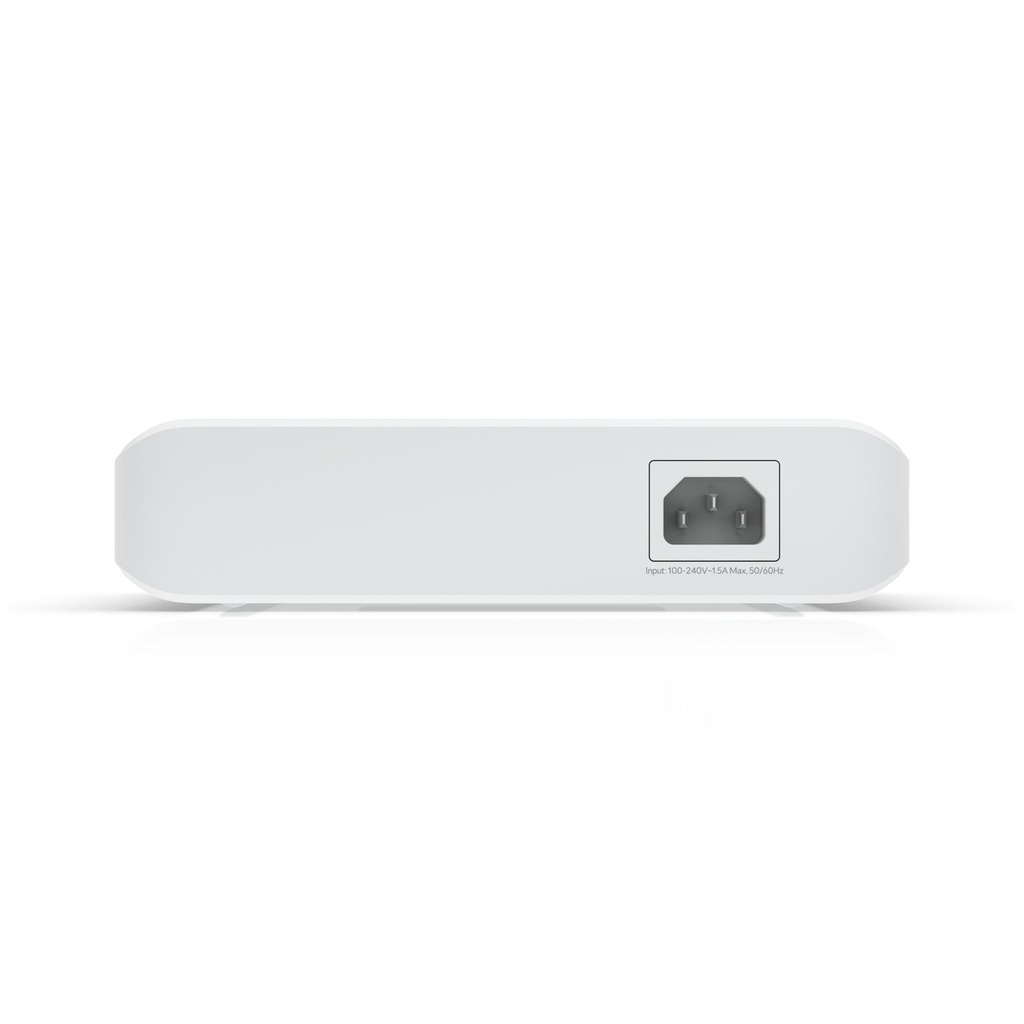

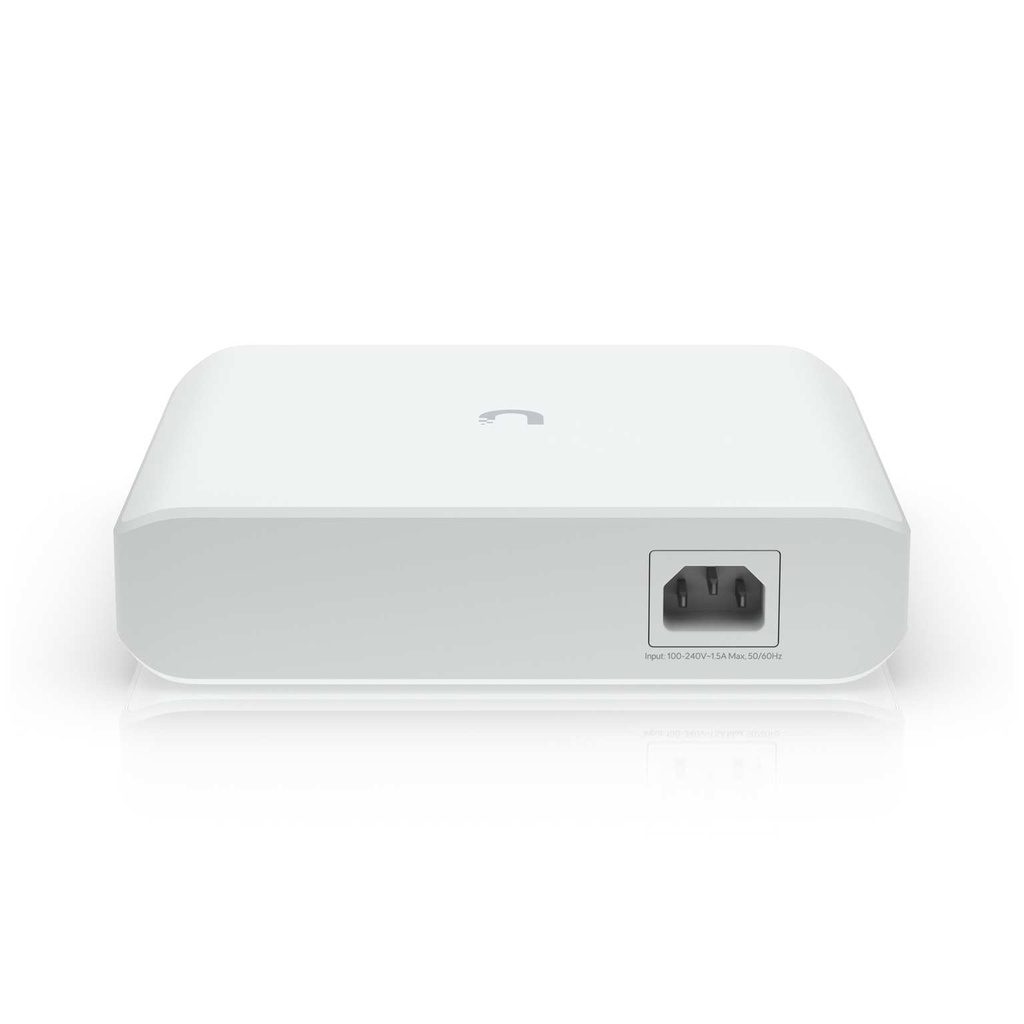

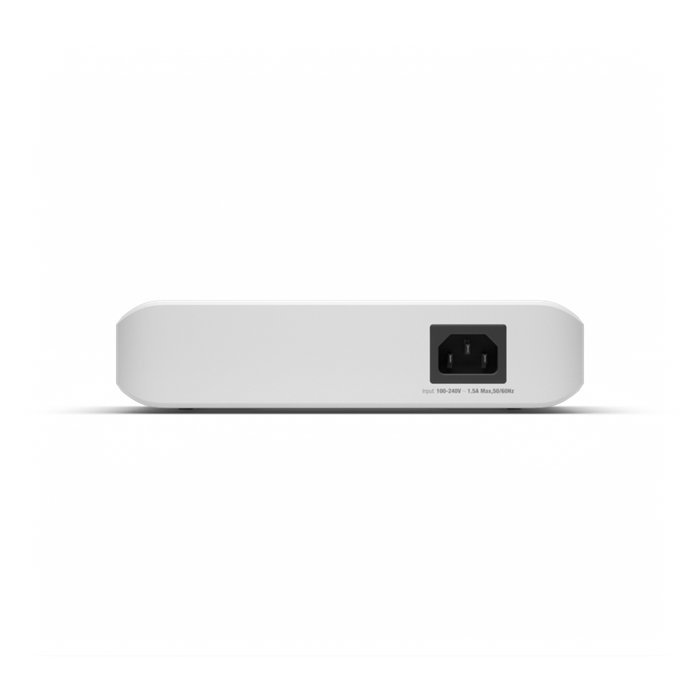

• Power Input Method: AC input
• Power Supply: AC/DC, internal, 60W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
• Heat Dissipation: 51.2 (Excluding PoE Output)
• Weight: 1.2 kg (2.6 lb)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Ambient Operating Temperature: -15 to 40° C (5 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 04479-21-08356

Software

• Application Requirements
• UniFi Network: Version 7.2.94 and later
