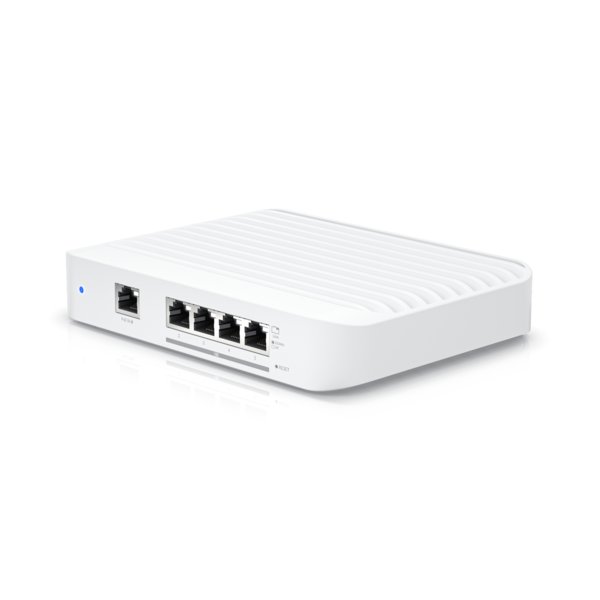

Ubiquiti UniFi Switch Flex XG - Layer 2 Switch with (4) 10GbE RJ45 Ports and (1) GbE, 802.3at PoE+ RJ45 Input,

Ubiquiti Flex 10 GbE

USW-Flex-XG

Description:
The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

• (4) 10 GbE ports
• (1) GbE PoE+ input port for power
• Compact, slim housing
• Can be powered with a 5V, 5A USB-C adapter

*Fanless Switch, Do not stack other hardware on the USW Flex XG, will affect heat dissipation

Category: Network - UniFi / Switching

Overview

• Dimensions: 135 x 185 x 32 mm
  (5.3 x 7.3 x 1.3")
• Port Layout
• 1 GbE RJ45: 1
  (1G/100M/10M)
• 10 GbE RJ45: 4
• Form Factor: Compact desktop, wall

Performance

• Switching Capacity: 82 Gbps
• Total Non-Blocking Throughput: 41 Gbps
• Forwarding Rate: 61 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• Packet Buffer Size: 1.5 MB
• Access Lists
• IPv4: 12
• MAC: 10

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 25W
• Power Method: (1) PoE+
  (1) USB Type-C, 5V DC, 5A
• Power Input Method: USB Input
  PoE
• Power Supply: AC/DC, external, 25W
• Supported Voltage Range: 4.8—5.2V DC/USB
  44V—57V PoE
• Management: Ethernet
• Heat Dissipation: 85.3 BTU/hr
• Weight: 1.2 kg (2.7 lb)
• Enclosure Material: Polycarbonate
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06606-25-08356

Software

• Application Requirements
• UniFi Network: Version 6.1.67 and later
