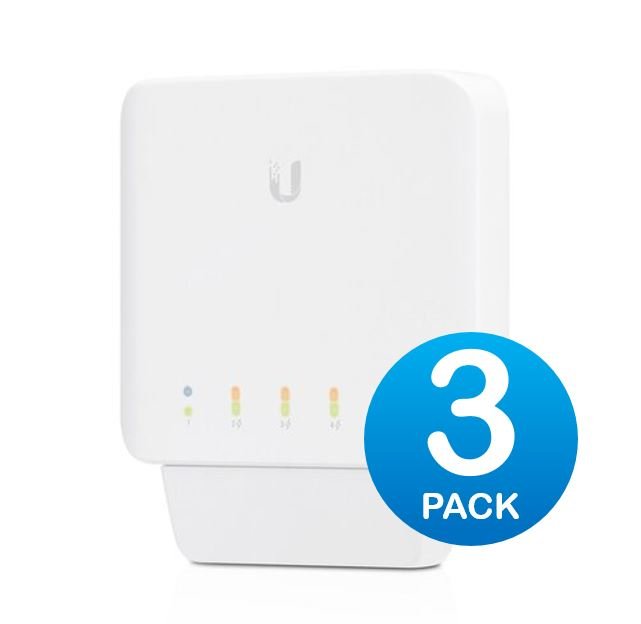

Ubiquiti USW Flex 3 Pack- Managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support. 1x PoE In, 4x PoE Out,

Ubiquiti USW Flex, 3 Pack

SKU: USW-Flex-3

Description:Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++. Come with 3 pack

Features:

• (4) GbE PoE+ ports
• (1) GbE PoE++ input port for power

— 46W PoE availability* PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input

• Indoor/Outdoor

Category: Network - UniFi / Switching

Overview

• Dimensions: 122.5 x 107.1 x 28 mm
  (4.8 x 4.2 x 1.1")

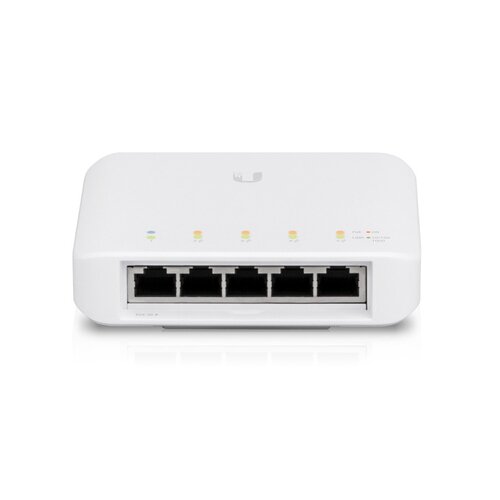

• Port Layout
• 1 GbE RJ45: 5 (4 PoE+; 1 PoE++)
  (1G/100M/10M)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: PoE++/60W PoE adapter input: 46W
  PoE+ input: 20W
  PoE input: 8W (60W PoE adapter sold separately)

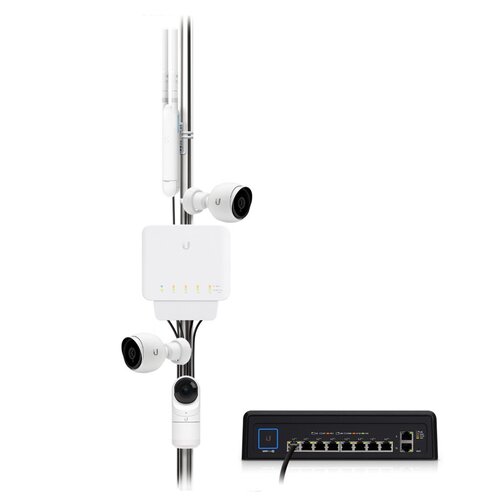

• Form Factor: Compact desktop, wall, pole (Pole mounting requires USW-Flex-Utility accessory)

Performance

• Switching Capacity: 10 Gbps
• Total Non-Blocking Throughput: 5 Gbps
• Forwarding Rate: 7 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 2,000

Layer 2 Features

• Egress Rate Limit: Yes
• Flow Control: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes

Hardware

• PoE Ports
• PoE+: 4
• PoE++: 1
• Max. PoE Wattage per Port by PSE
• PoE+: 25W
• Max. Power Consumption: 5W (Excluding PoE Output)
  51W (Including PoE Output)
• Power Method: PoE++
• Power Input Method: PoE
• Supported Voltage Range: 50–57V PoE
• Management: Ethernet
• Heat Dissipation: 17.1 BTU/hr (Excluding PoE Output)
• Outdoor Ready: Yes
• Weight: 230 g (8.1 oz)
• ESD Protection: Air/contact: ± 16kV
• Ambient Operating Temperature: 46W PoE output: -40 to 55° C (-40 to 131° F)
  25W PoE output: -40 to 65° C (-40 to 149° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 14502-20-08356

Software

• Application Requirements
• UniFi Network: Version 5.10.3 and later
