Ubiquiti Flex 2.5G, Flexible,8-port 2.5 GbE Switch,10 GbE RJ45/SFP+ Combination Uplink Port,Powered With USB-C (Included)/PoE+ adapter ( Not Included)

UbiquitiFlex 2.5G

SKU: USW-Flex-2.5G-8

Description:Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.

Features:

• (8) 2.5 GbE ports
• (1) 10 GbE PoE+ input port for power / SFP+ port combo
• 2 Power way

1) PoE+ adapter ( Not Included)

2) PSU USB-C (Included ) - Optional powering with 5V, 3A USB-C adapter

Category: Network - UniFi / Switching

Overview

• Dimensions: 212.9 x 76 x 33.5 mm
  (8.4 x 3 x 1.3")

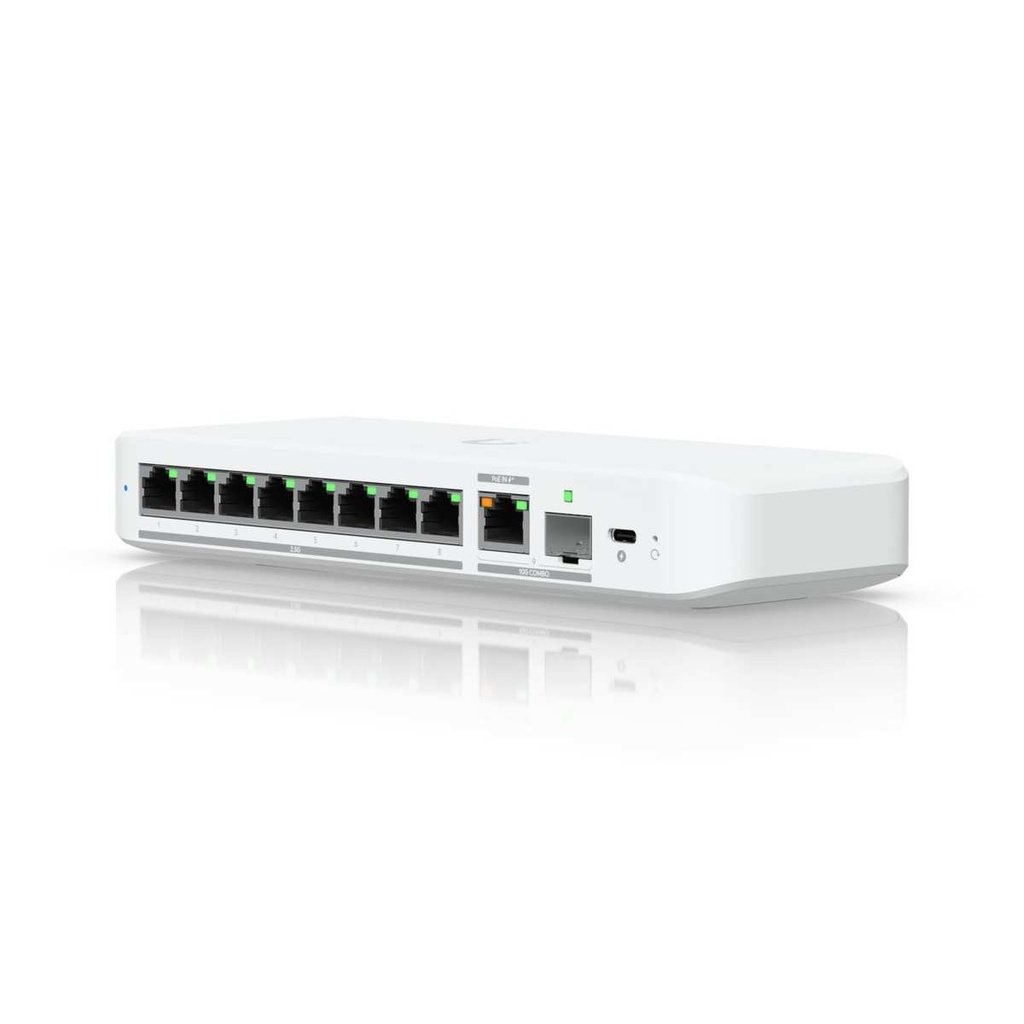

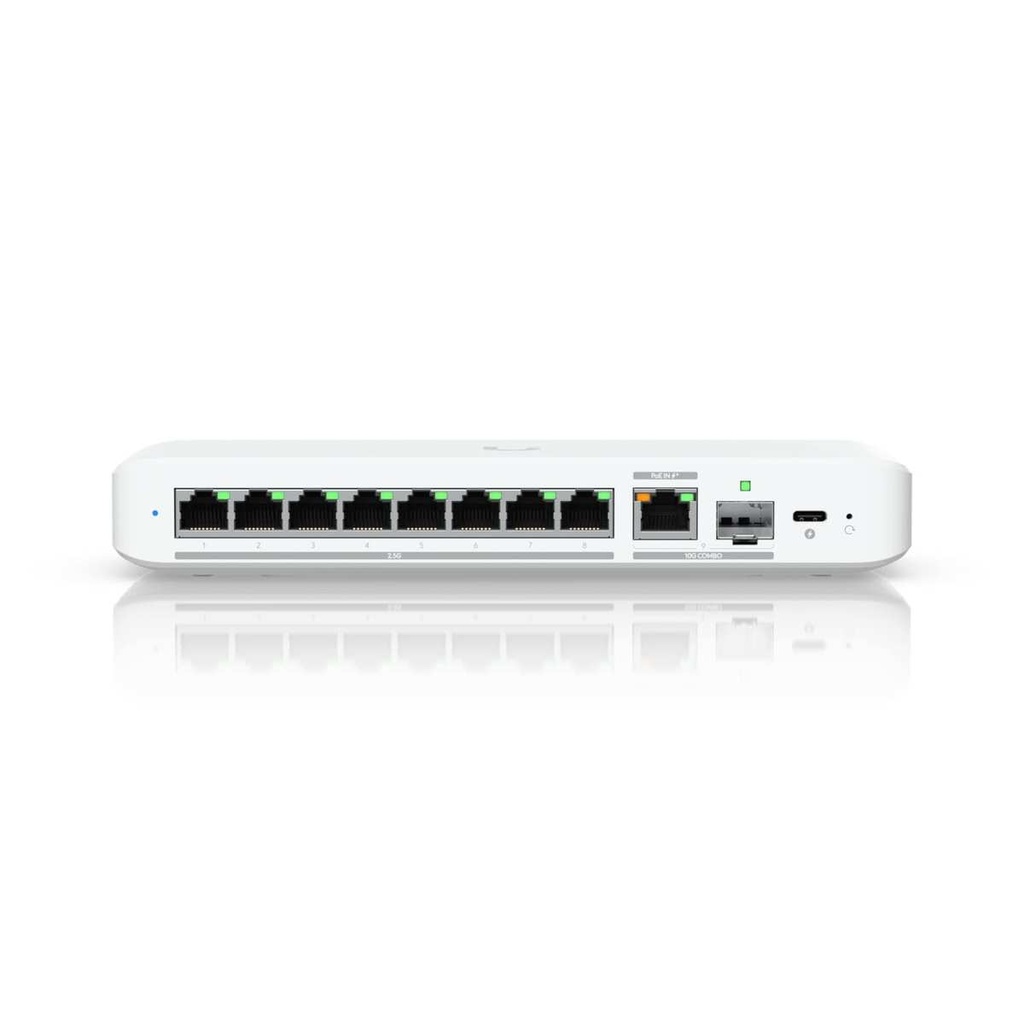

• Port Layout
• 2.5 GbE RJ45: 8
  (2.5G/1G/100M/10M)
• 10 GbE RJ45: 1
  (10G/5G/2.5G/1G/100M) (Combo port)
• 10G SFP+: 1
  (10G/1G) (Combo port)
• Form Factor: Compact Desktop, wall, DIN, magnetic (DIN and Magnetic are sold separately)

Performance

• Switching Capacity: 60 Gbps
• Total Non-Blocking Throughput: 30 Gbps
• Forwarding Rate: 45 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 4,000

Layer 2 Features

• STP & RSTP: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• Loop Protection: Yes

Hardware

• Max. Power Consumption: 14W with PoE input
  14W with AC adapter input
• Power Method: (1) USB Type-C, 5V DC, 3A
  (1) PoE+
• Power Input Method: USB Input
  PoE
• Power Supply: AC/DC, external, 15W
• Supported Voltage Range: 4.8—5.2V DC/USB
  44V—57V PoE
• Management: Ethernet
• Weight: 395 g (0.87 lb)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel

Software

• Application Requirements
• UniFi Network: Version 9.0.114 and later
