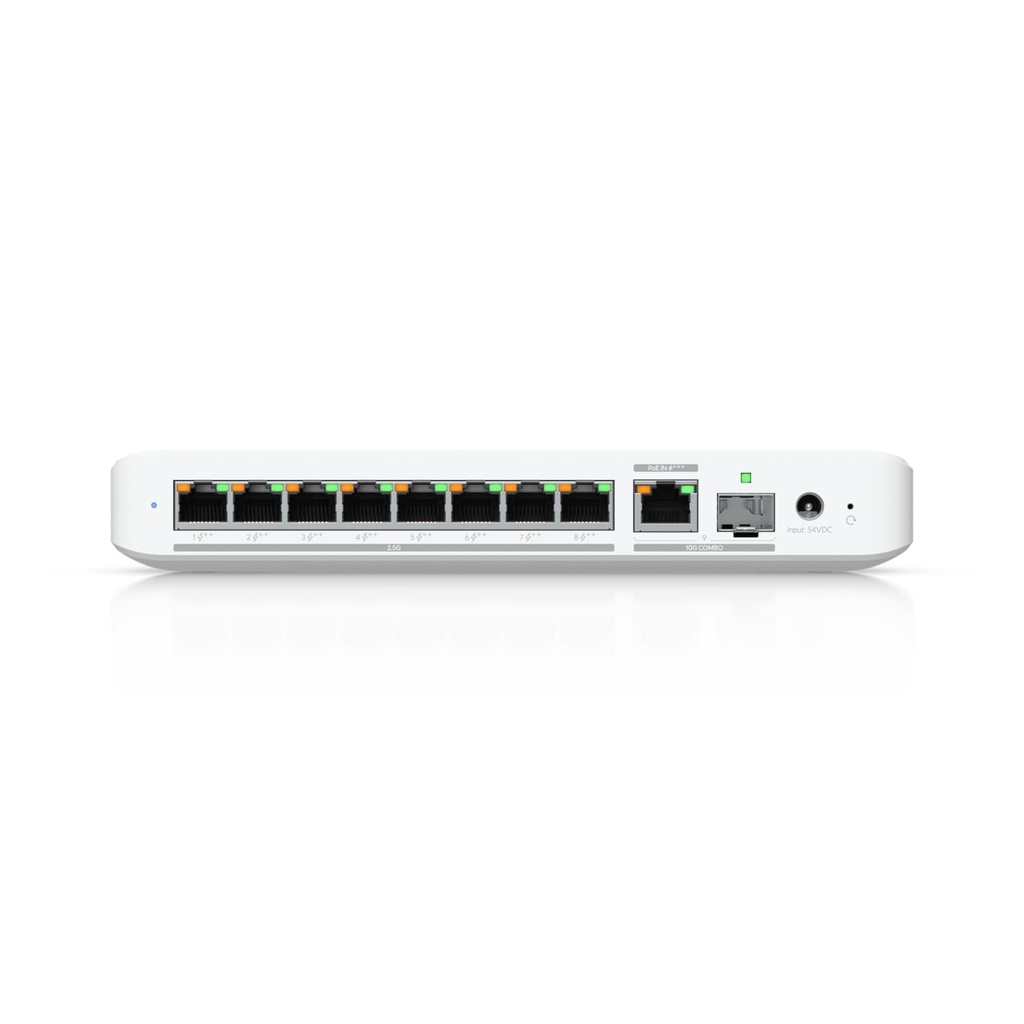

Ubiquiti Flex 2.5G PoE, 8-port 2.5 GbE PoE++ Switch,10 GbE RJ45/SFP+ Combination Uplink Port,Powered With PoE+++ & PSU (Sold Separately )

Ubiquiti Flex 2.5G PoE

SKU: USW-Flex-2.5G-8-PoE

Description: Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.

Features:

• (8) 2.5 GbE PoE++ output ports
• (1) 10 GbE PoE+++ input port for power / SFP+ port combo
• — 57W PoE availability with PoE+++ input
• — 37W PoE availability with PoE++ input
• — 12W PoE availability with PoE+ input
• 196W PoE availability with optional AC power adapter*
• 2 Power way

1) POE input POE+++ which they can use another switch or POE injector (Sold Separately) - NHU-UACC-POE+++-10G

2) PSU ADAPTER210W (Sold Separately ) - NHU-UACC-ADAPTER210W

Category: Network - UniFi / Switching

Overview

• Dimensions: 212.9 x 99.4 x 33.5 mm
  (8.4 x 3.9 x 1.3")
• Port Layout
• 2.5 GbE RJ45: 8 (All PoE++)
  (2.5G/1G/100M/10M)
• 10 GbE RJ45: 1 (PoE+++)
  (10G/5G/2.5G/1G/100M) (Combo port)
• 10G SFP+: 1
  (10G/1G) (Combo port)
• Max. PoE Output: Up to PoE++
• Total PoE Availability: PoE+++ input: 76W
  PoE++ input: 46W
  PoE+ input: 16W
  210W AC adapter input: 196W
• Form Factor: Compact Desktop, wall, DIN, magnetic (DIN and Magnetic are sold separately)

Performance

• Switching Capacity: 60 Gbps
• Total Non-Blocking Throughput: 30 Gbps
• Forwarding Rate: 45 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 4,000

Layer 2 Features

• STP & RSTP: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• Loop Protection: Yes

Hardware

• PoE Ports
• PoE++: 8
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 32W
• PoE++: 64W
• Max. Power Consumption: 14W (Excluding PoE output) with PoE input
  17W (Excluding PoE output) with AC adapter input
  210W (Including PoE Output)
• Power Method: (1) AC/DC adapter (Excluded)
  (1) PoE+++ (AC power adapter sold separately.)
• Power Input Method: DC Input
  PoE
• Supported Voltage Range: 50–57V DC/PoE
• Management: Ethernet
• Weight: 567 g (20 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC

Software

• Application Requirements
• UniFi Network: Version 9.0.114 and later
