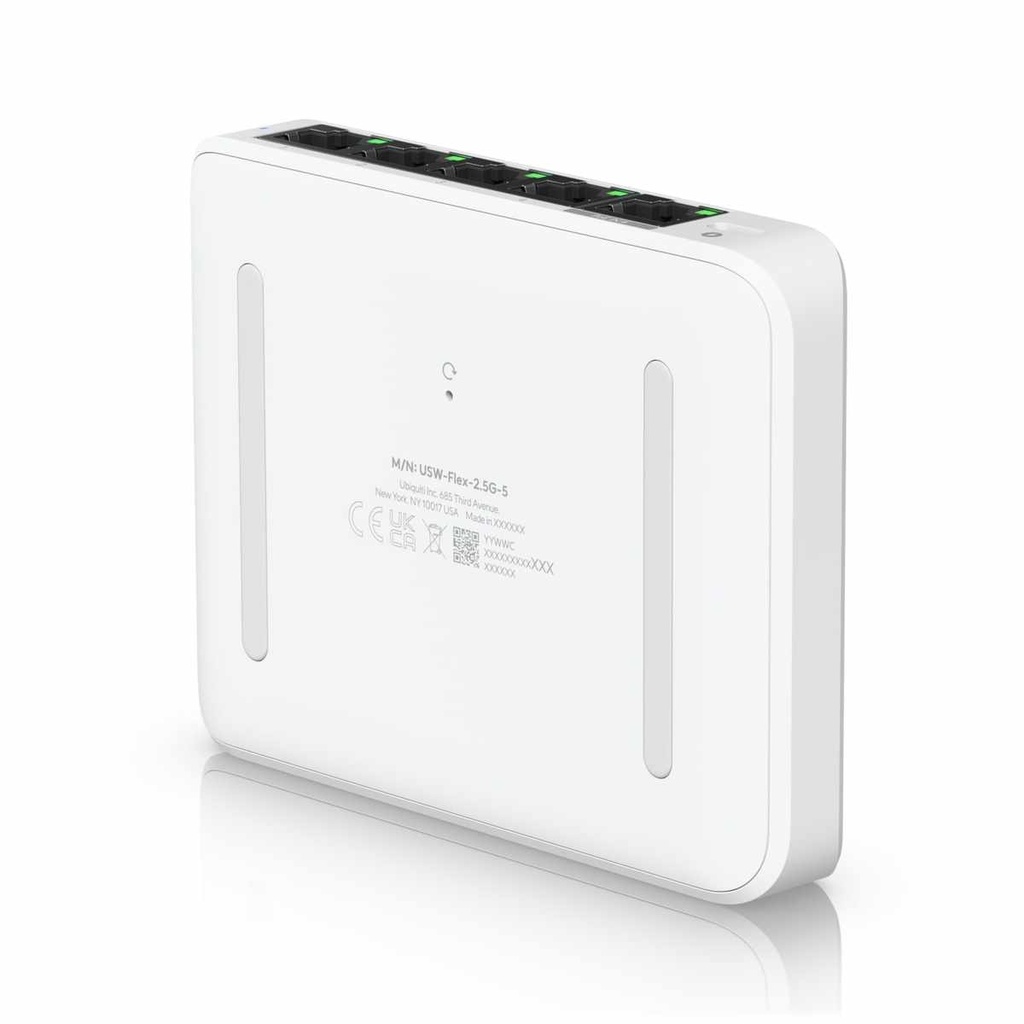

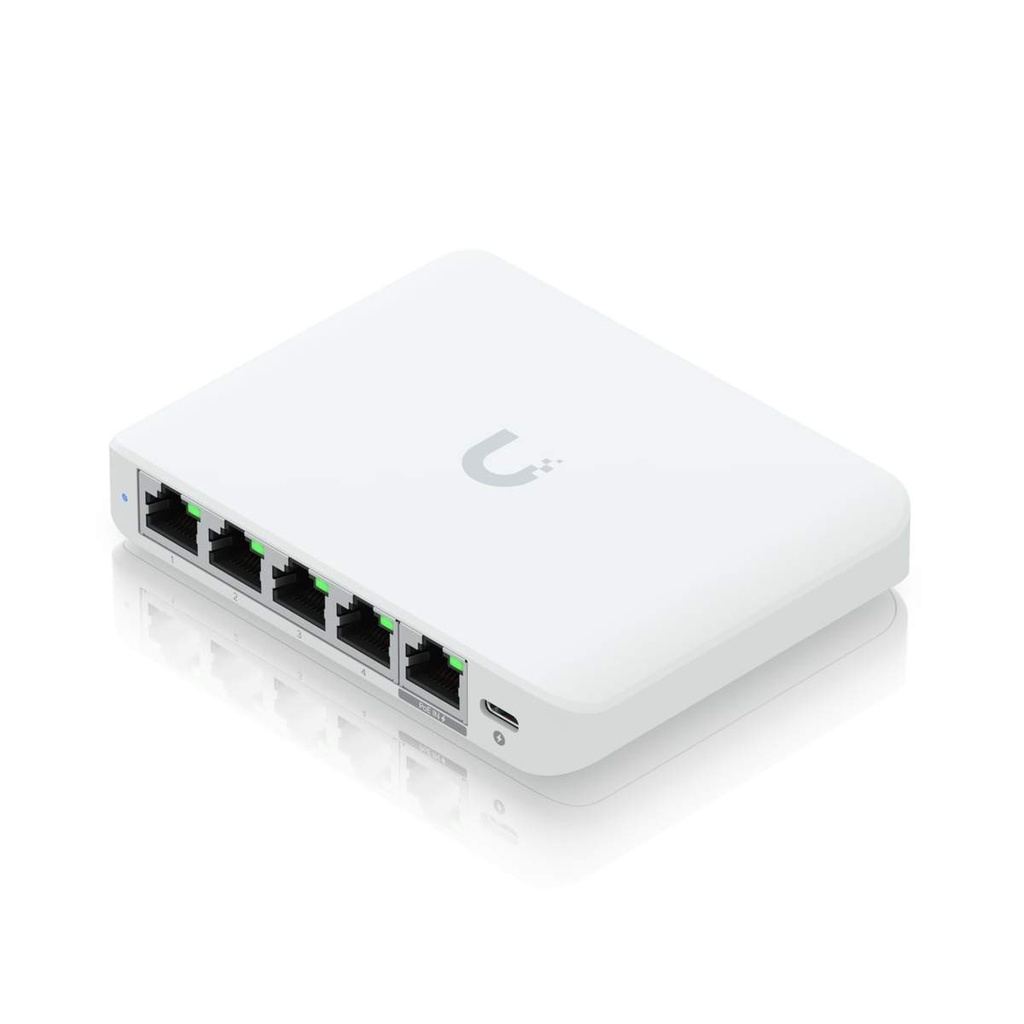

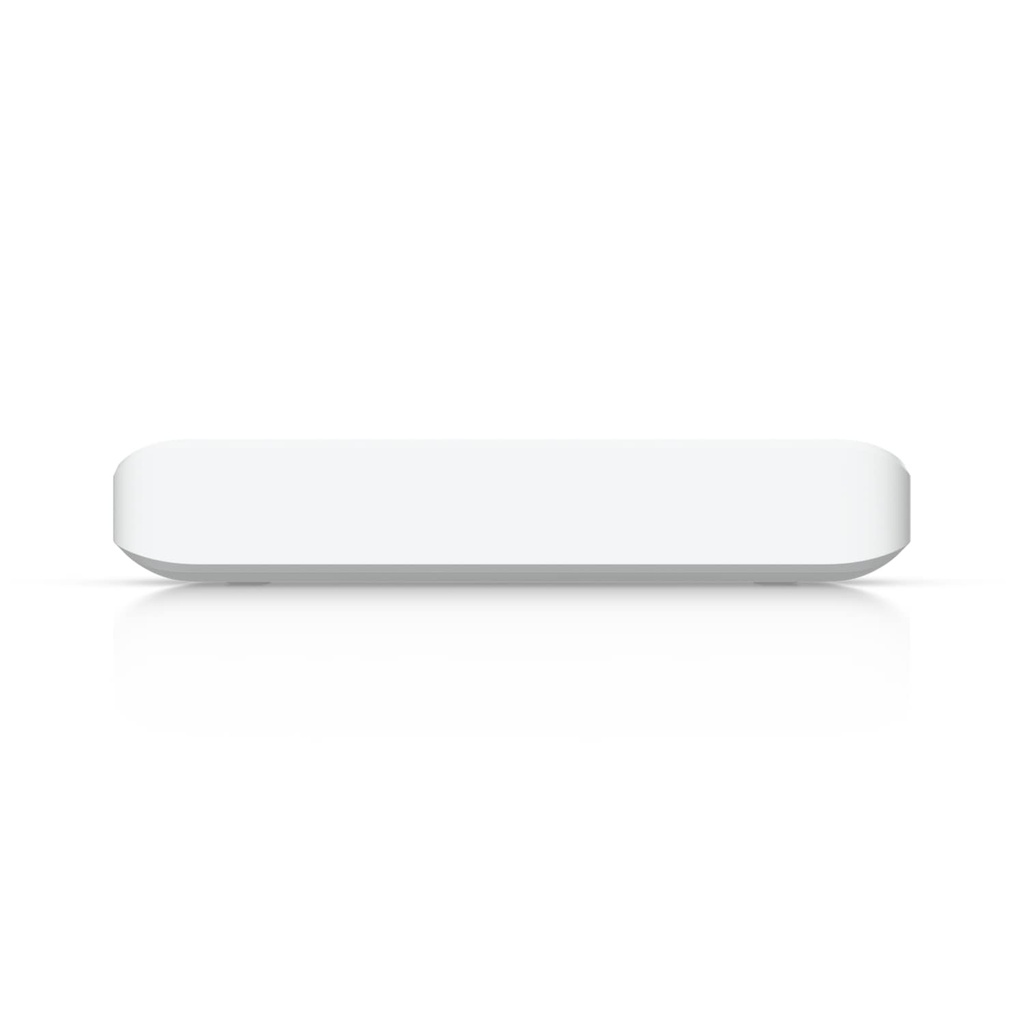

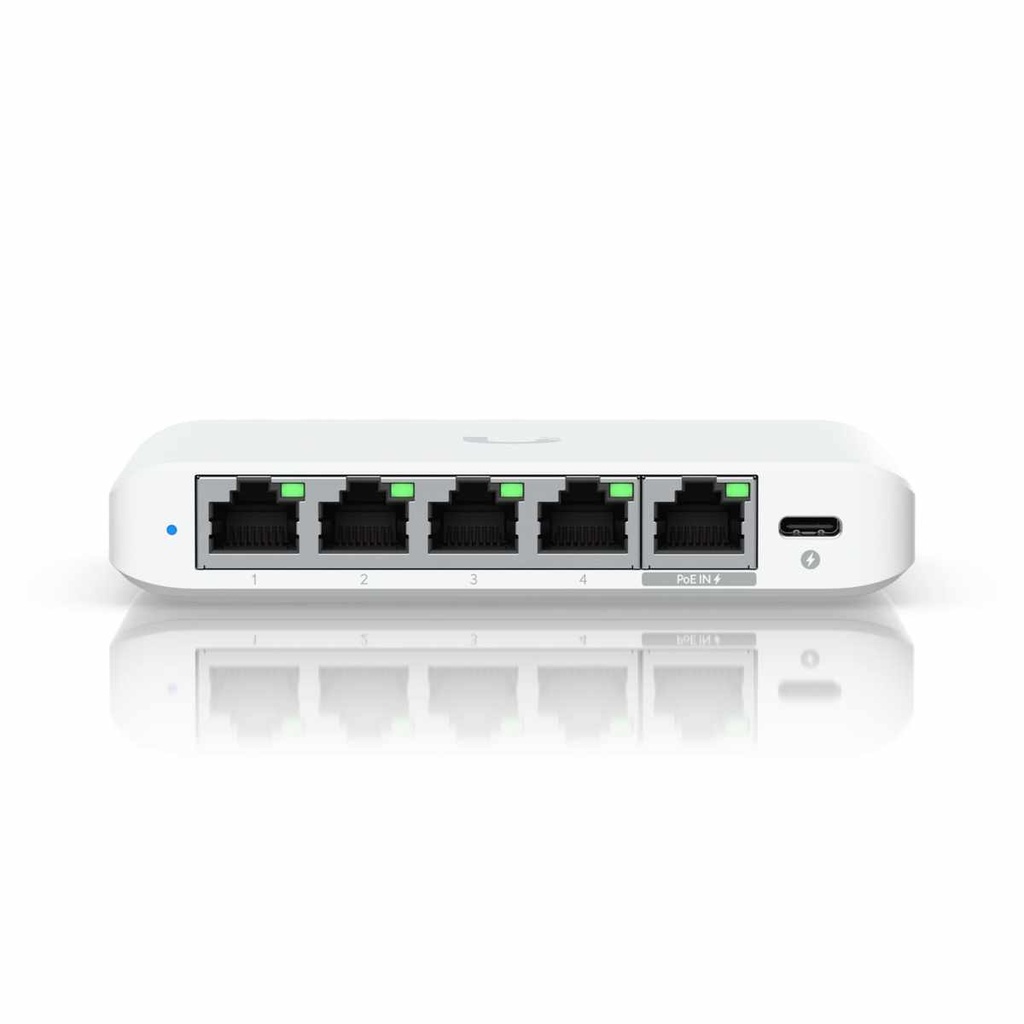

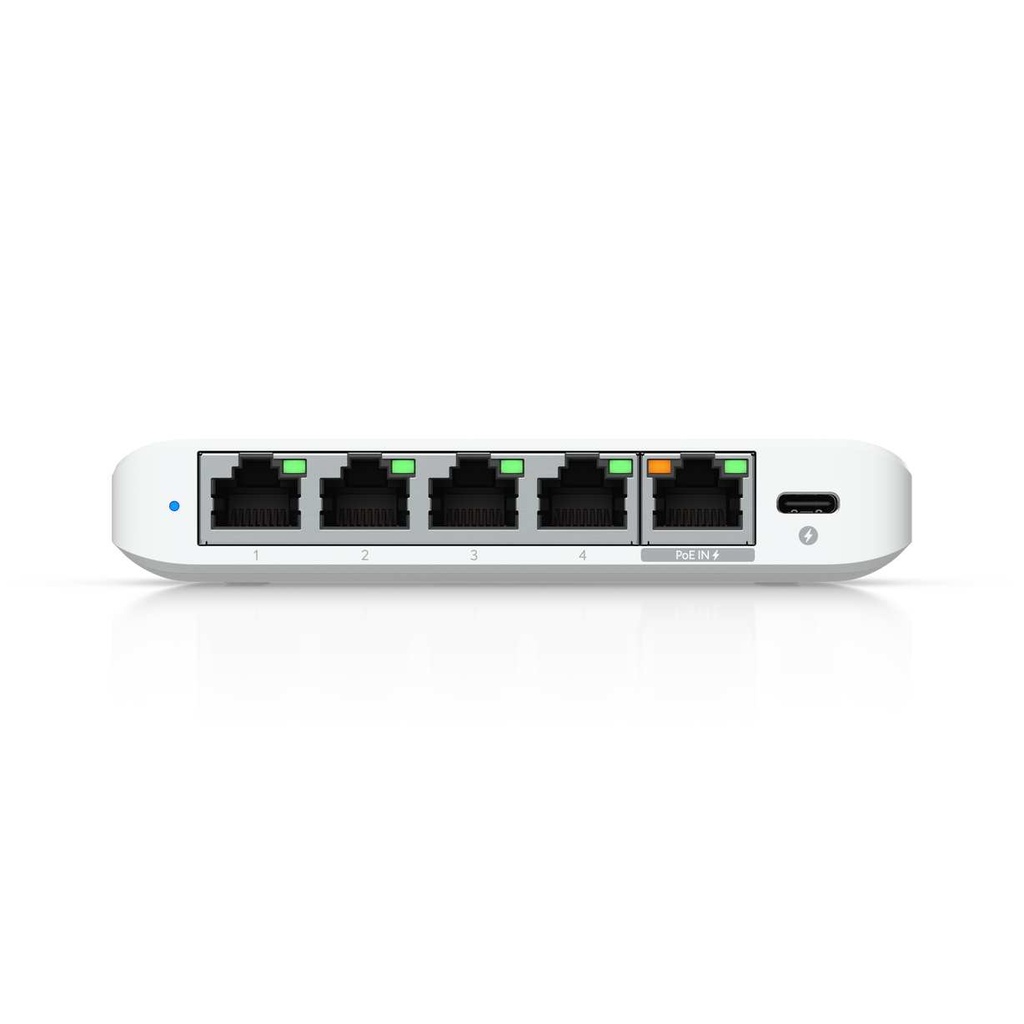

Ubiquiti Flex Mini 2.5G, (4) 2.5 GbE Ports, (1) 2.5 GbE PoE Input Port for Power,

Ubiquiti Flex Mini 2.5G

SKU: USW-Flex-2.5G-5

Description: Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.

Features:

• (4) 2.5 GbE ports
• (1) 2.5 GbE PoE input port for power
• Optional powering with included 5V, 1A USB-C adapter

Category: Network - UniFi / Switching

Overview

• Dimensions: 117.1 x 90 x 21.2 mm
  (4.6 x 3.5 x 0.8")
• Port Layout
• 2.5 GbE RJ45: 5
  (2.5G/1G/100M/10M)
• Form Factor: Compact desktop

Performance

• Switching Capacity: 25 Gbps
• Total Non-Blocking Throughput: 12.5 Gbps
• Forwarding Rate: 19 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 4,000

Layer 2 Features

• STP & RSTP: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• Loop Protection: Yes

Hardware

• Max. Power Consumption: 5W (AC/DC input)
  6.4W (PoE input)
• Power Method: (1) USB Type-C, 5V DC, 1A
  (1) PoE
• Power Input Method: USB Input
  PoE
• Power Supply: AC/DC, external, 5W
• Supported Voltage Range: 4.8—5.2V DC/USB
  44V—57V PoE
• Management: Ethernet
• Weight: 206 g (7.3 oz)
• Enclosure Material: Polycarbonate
• Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel

Software

• Application Requirements
• UniFi Network: Version 8.6.9 and later
