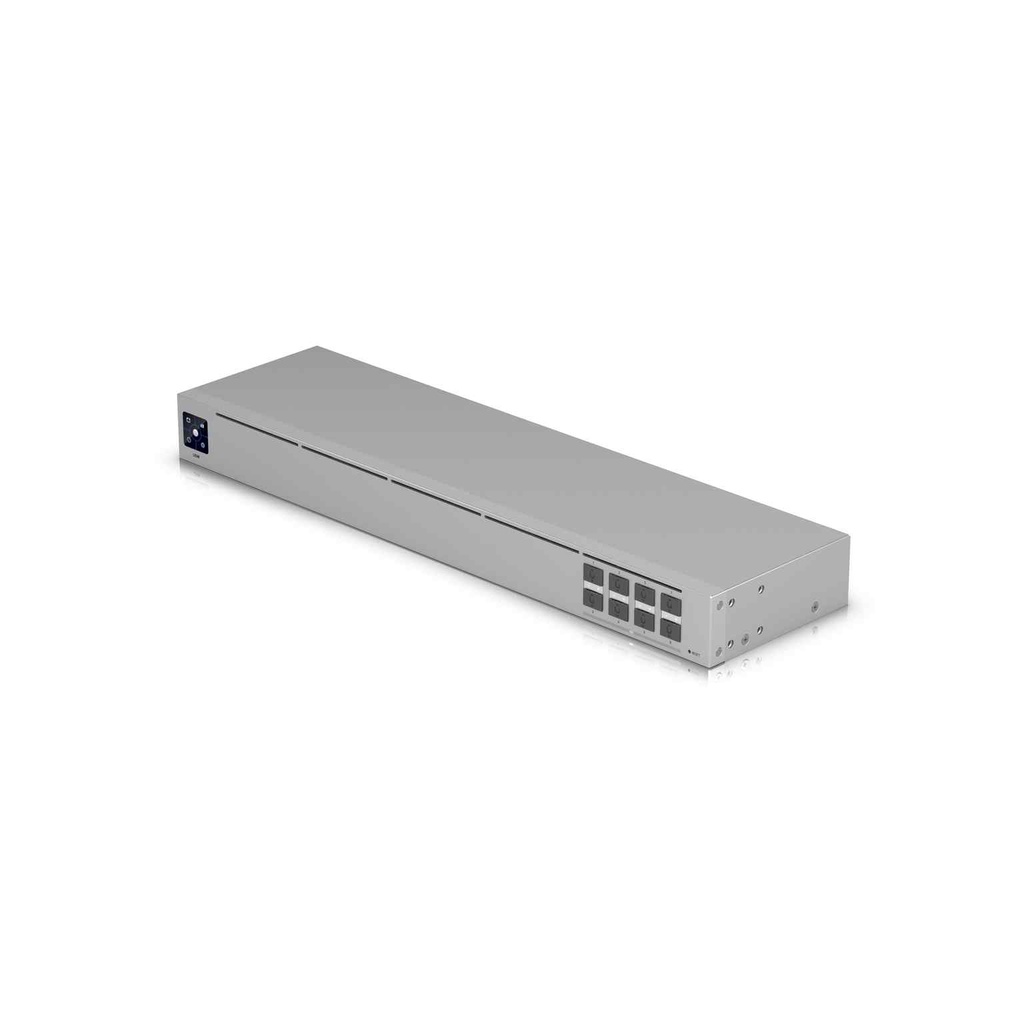

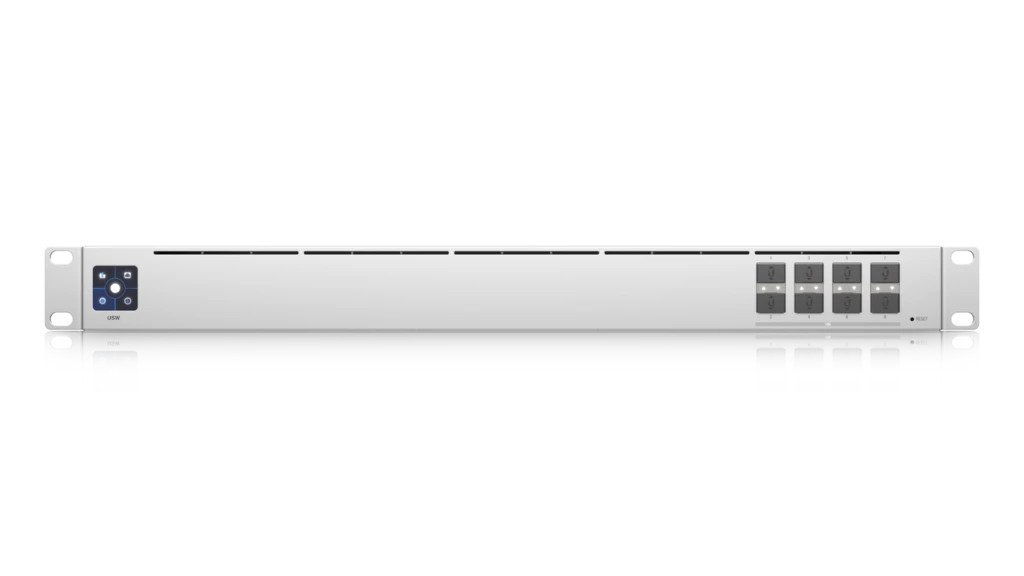

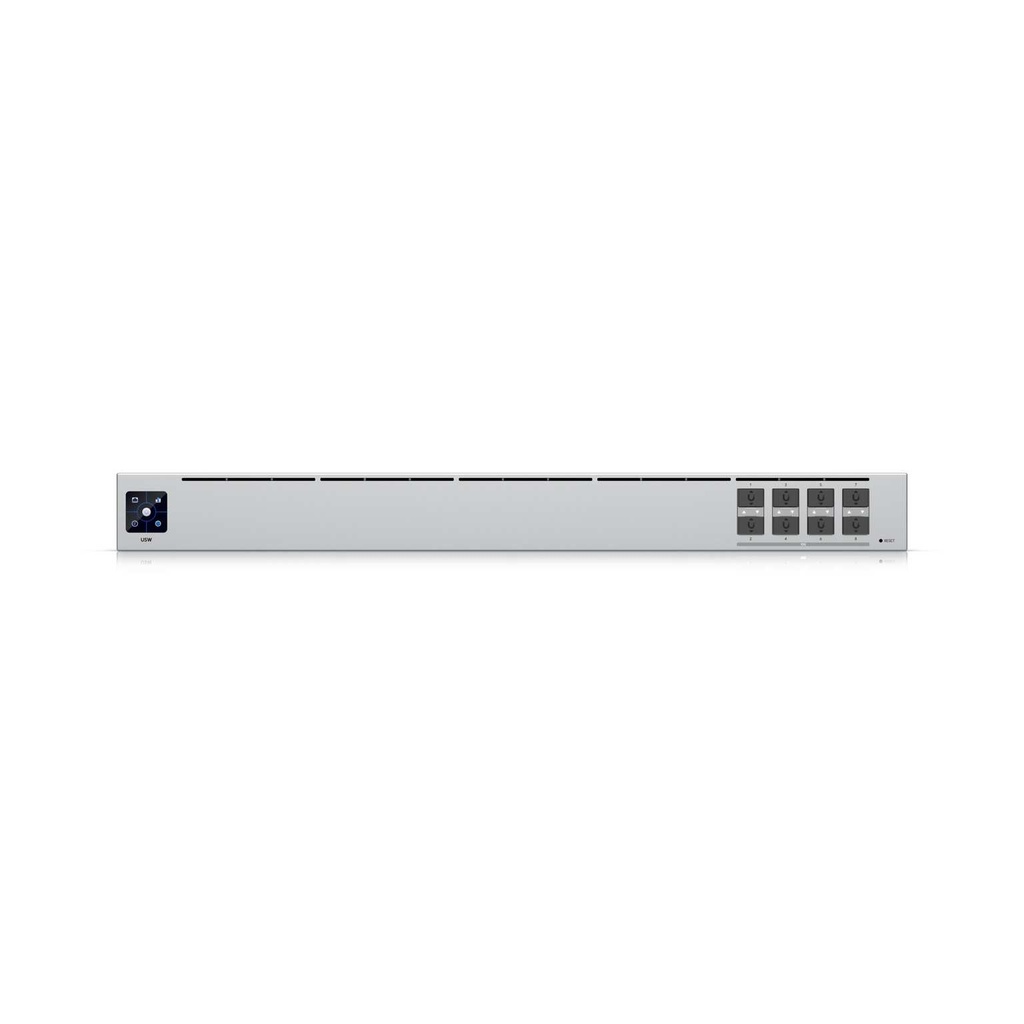

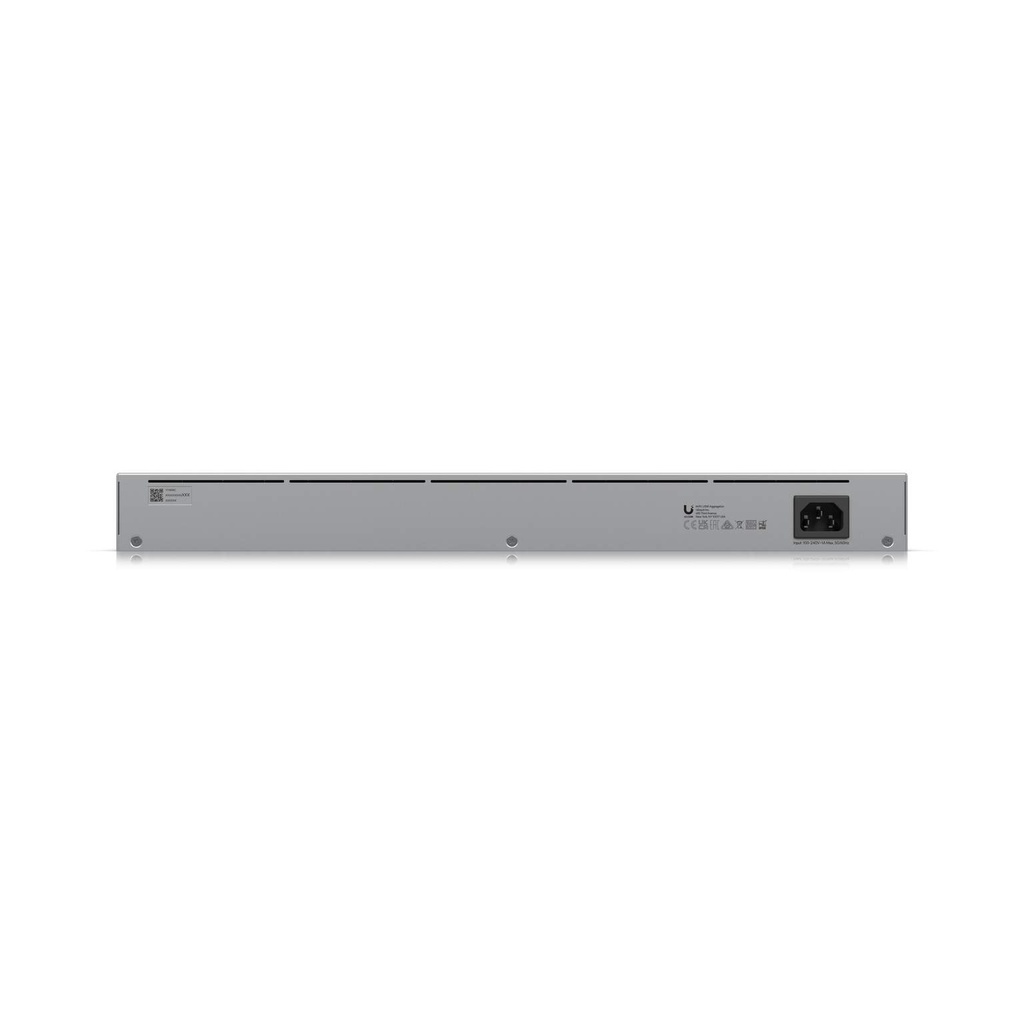

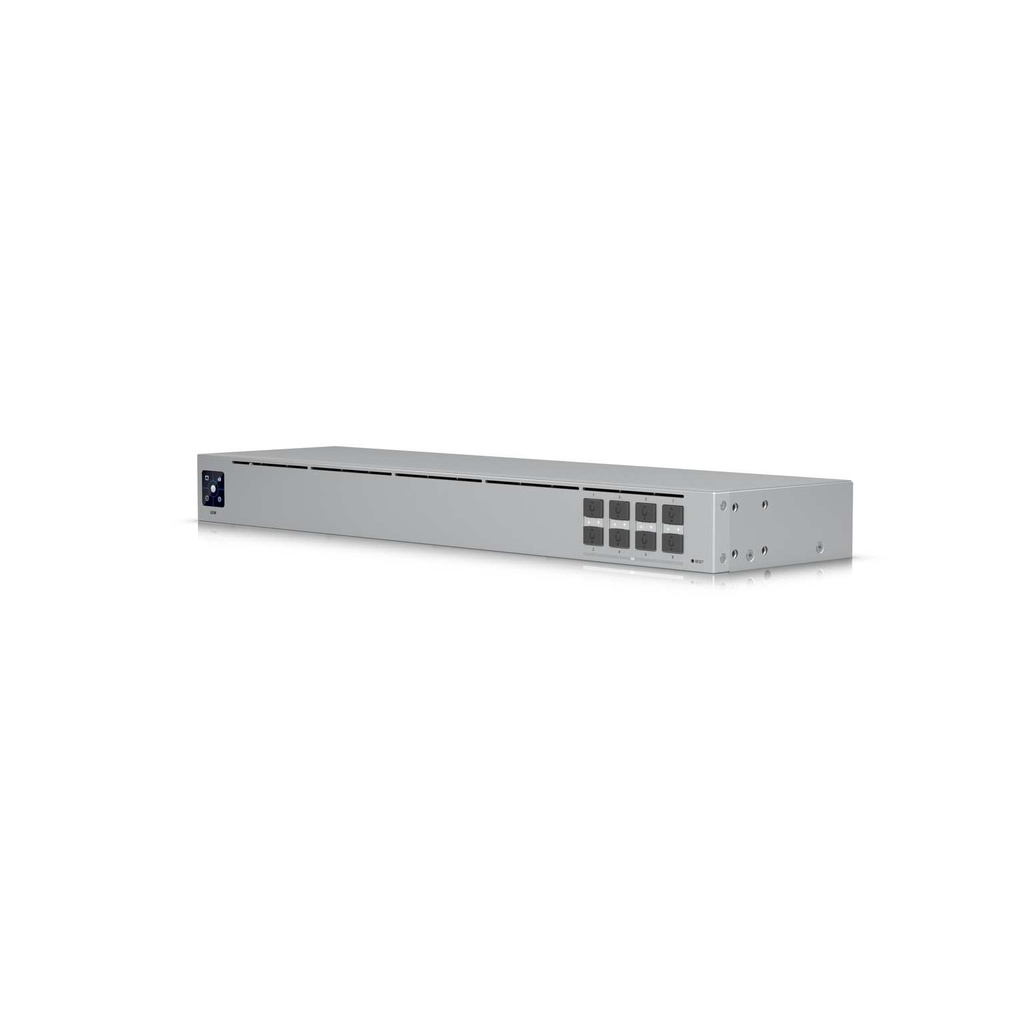

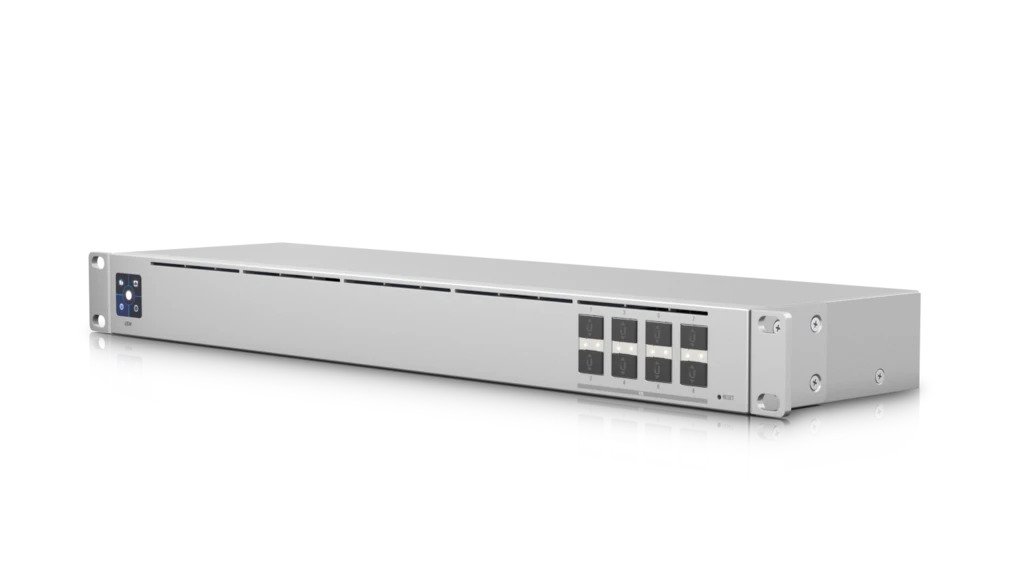

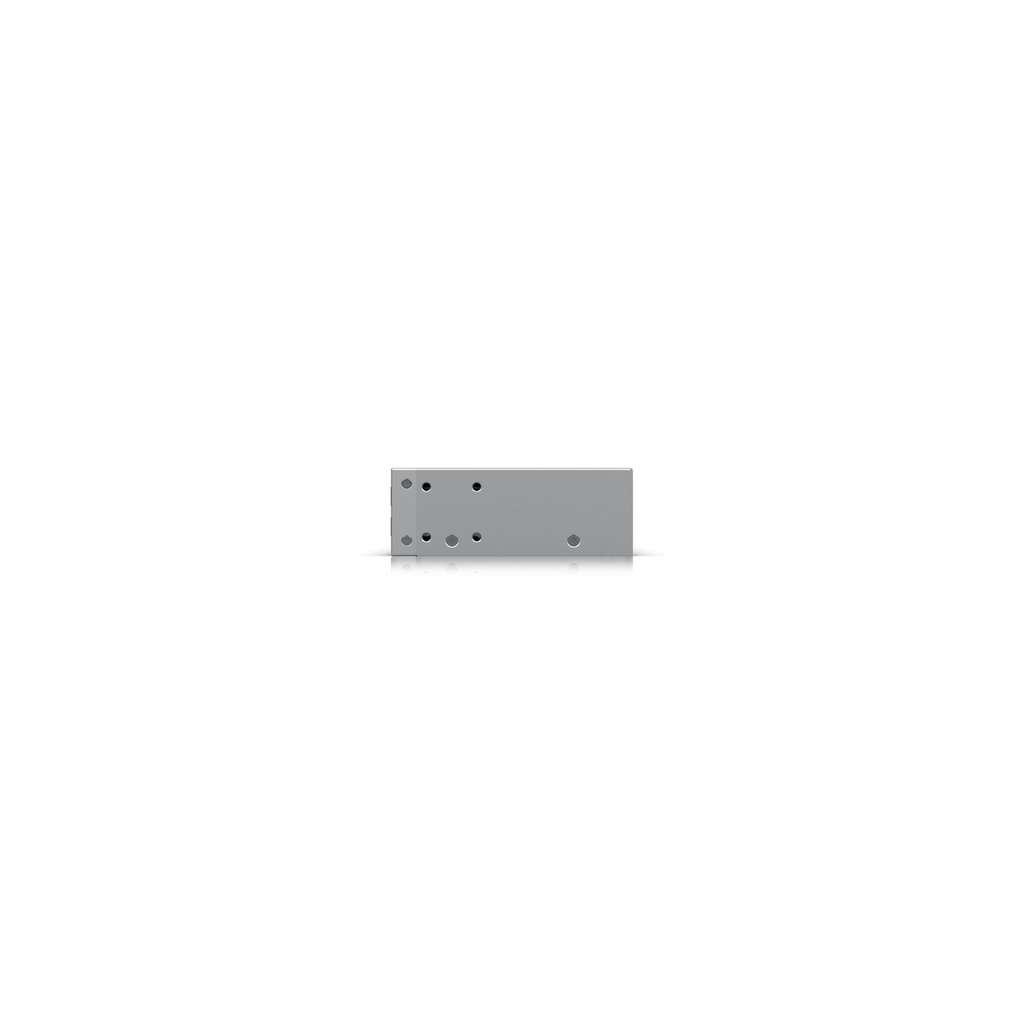

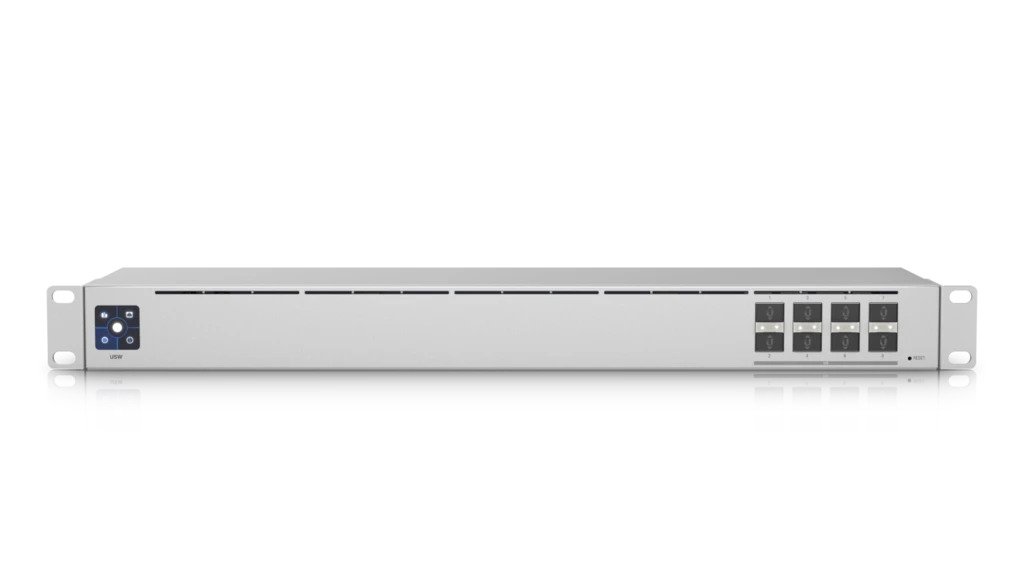

Ubiquiti UniFi USW-Aggregation, 8-port 10G SFP+ Aggregation Switch, Layer 2 Switch, Fanless, 1U Rackmount,

Ubiquiti Aggregation

SKU: USW-Aggregation

Description:USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports highbandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.

Features:

• (8) 10G SFP+ ports
• Fanless, silent cooling
• Total Non-Blocking Throughput:80 Gbps
• Switching Capacity: 160 Gbps
• Forwarding Rate: 119.04 Mpps
• Max. Power Consumption: 30W
• Power Method Universal AC Input: 100-240VAC, 50/60 Hz
• Power Supply AC/DC, Internal: 36W
• Management Interface: EthernetIn-Band
• Modes: SMB Layer 2 GigabitEthernetSwitch

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 120 x 43.7 mm
  (17.4 x 4.7 x 1.7")
• Port Layout
• 10G SFP+: 8
  (10G/1G)
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 160 Gbps
• Total Non-Blocking Throughput: 80 Gbps
• Forwarding Rate: 119 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• Packet Buffer Size: 1.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 36W (Including SFP modules)
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 36W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 102 BTU/hr
• Weight: Without mounting brackets: 2.6 kg (5.8 lb)
  With mounting brackets: 2.7 kg (6 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 04456-21-08356

Software

• Application Requirements
• UniFi Network: Version 5.14.12 and later
