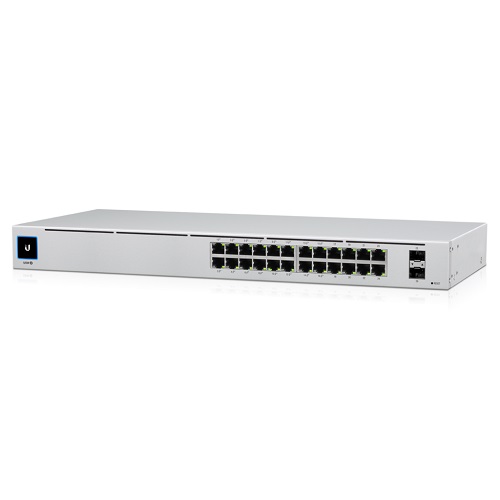

Ubiquiti UniFi 24 Port Managed Gigabit Switch, 16x PoE+ Ports, 8x Gigabit Ethernet Ports, 2xSFP - 95W - Touch Display - Fanless - GEN2,

Ubiquiti Standard 24 PoE

SKU: USW-24-POE

Description:
A 24-port, Layer 2 PoE switch with a fanless cooling system.
Iis a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features:

• (16) GbE PoE+, (8) GbE ports
• (2) 1G SFP ports
• 95W total PoE availability
• Fanless, silent cooling

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 200 x 44 mm
  (17.4 x 7.9 x 1.7")
• Port Layout
• 1 GbE RJ45: 24 (16 PoE+)
  (1G/100M/10M)
• 1G SFP: 2
  (1G)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: 95W
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 52 Gbps
• Total Non-Blocking Throughput: 26 Gbps
• Forwarding Rate: 39 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+: 16
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 32W
• Max. Power Consumption: 25W (Excluding PoE output)
  120W (Including PoE Output)
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 120W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 85.3 BTU/hr (Excluding PoE Output)
• Weight: Without mounting brackets: 3 kg (6.6 lb)
  With mounting brackets: 3.1 kg (6.8 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 00593-21-08356

Software

• Application Requirements
• UniFi Network: Version 7.2.94 and later
