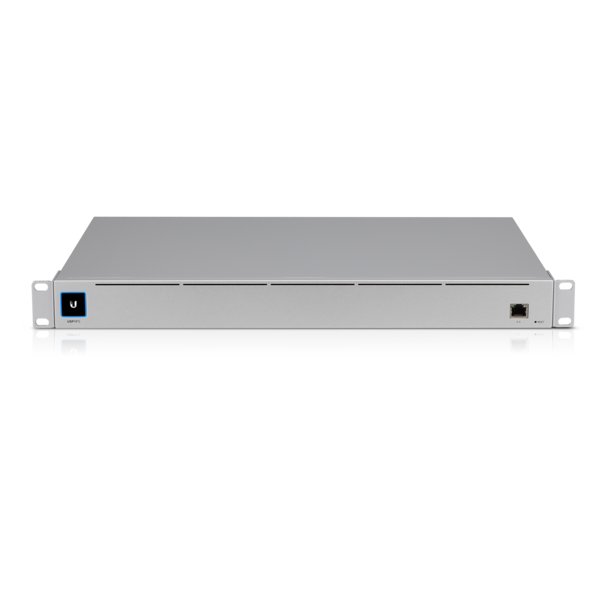

Ubiquiti UniFi Redundant Power System - Protect Up 6 Rackmount Ubiquiti Gen2 Devices - 950W DC Power Budget, Touch Screen Info Display

Ubiquiti UniFi Redundant Power Backup System

Description:
950W backup power unit that provides full redundancy for rack-mounted UniFi devices.
The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.

Features:

• 950W DC power availability
• (6) USP DC output ports
• (1) Ethernet port
• 1U Rackmountable (kit included)
• 1.3" Touchscreen display with status information
• Managed by UniFi Network Controller version: 5.12.11 or later

Category: Network - UniFi / Switching Accessories

Mechanical

• Dimensions: 442.4 x 325.6 x 43.7 mm
  (17.4 x 12.8 x 1.7")
• Weight: Without mount brackets : 5.5 kg (12.1 lb)
  With mount brackets: 5.6 kg (12.3 lb)
• Enclosure Material: SGCC steel

Hardware

• Management: Ethernet
• Networking Interface: (1) GbE RJ45 port
• Power Method: (1) Universal AC input, 100–240V AC
• Power Supply: 54V DC output: AC/DC, internal, 645W
  12V DC output: AC/DC, internal, 350W
• Supported Voltage Range: 100–240V AC
• Max. Power Consumption: 995W
• Power Output: (6) RPS DC ports
• Max. Power Output: 52V DC: 11.54A (600W)
  11.5V DC: 30.44A (350W)
• Max. Output Power per RPS Port: 52V DC: 11.54A (600W)
  11.5V DC: 30.44A (350W)
• ESD/EMP Protection: Air: ± 16kV, contact: ± 12kV
• Display: 1.3" touchscreen
• Buttons: (1) Factory reset
• LEDs
• System: Status
• USP RPS: Activity
• Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC
