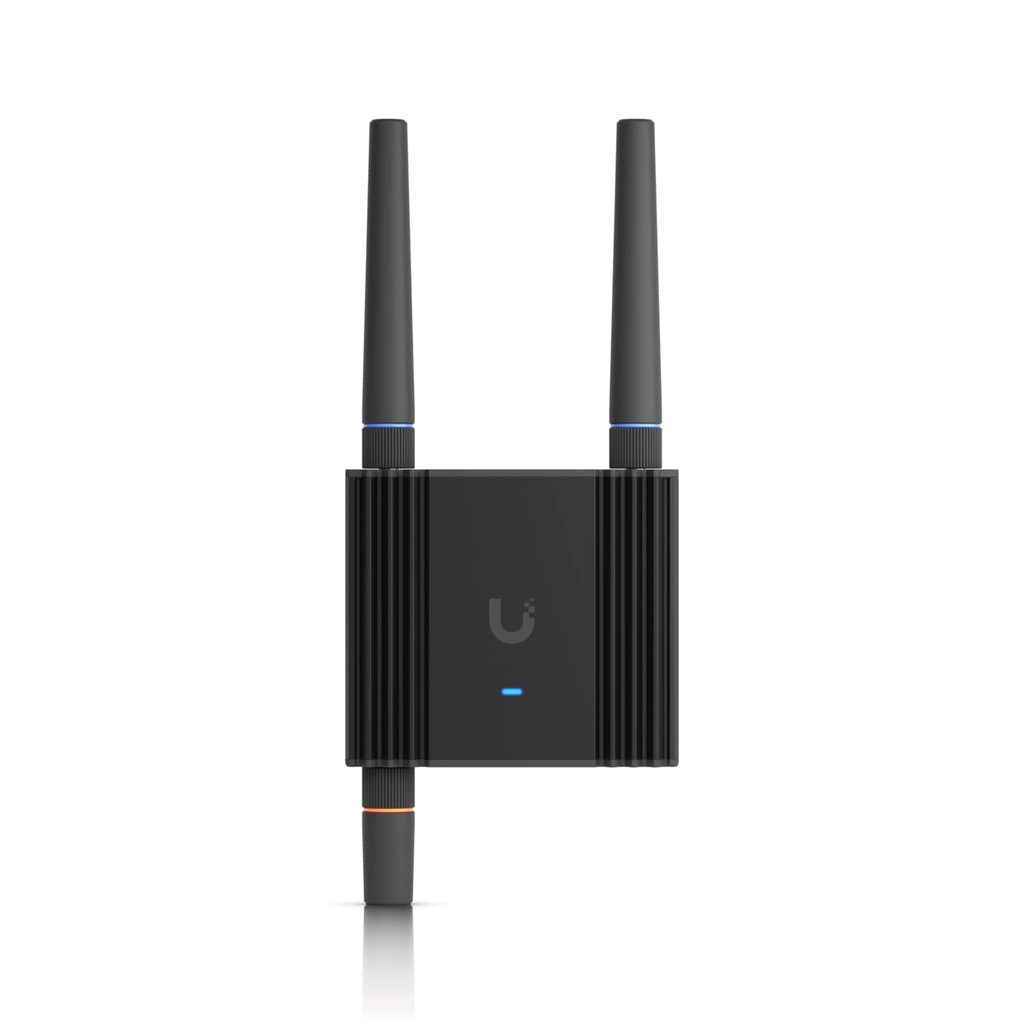

Ubiquiti UMR-Ultra, Ultra-compact Managed LTE Mobile Router, IoT Applications Integrated WiFi, WAN Failover,DC Power Input Support

Ubiquiti Mobile Router Industrial

SKU: UMR-Ultra

Description: Ultra-compact managed LTE mobile router for IoT applications with integrated WiFi, WAN failover, and DC power input support

Features:

• Site-to-site VPN and VPN client routing
• (2) FE RJ45 ports
• Automatic failover among LTE, wired WAN and WiFi
• Powered using USB Type-C or 4-pin DC power socket
• Wall and DIN rail mount options
• Optional Mobility Cloud Subscription
• WiFi 4 single chain 2.4 GHz radio
• Note: Power adapter and cable not included; please use a 10W USB-C or ATX power supply.

Category: Network - UniFi / Mobility LTE

Overview

• Dimensions: Without antennas: 84 x 82 x 26 mm
  (3.3 x 3.2 x 1")
  With antennas: 193.5 x 82 x 26 mm
  (7.6 x 3.2 x 1")
• Networking Interface: (2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4
• SIM: Nano SIM
• LTE Bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
• Mounting: DIN rail, Wall (Mounts Included)

Mechanical

• Weight: Device: 200 g (7.1 oz)
  DIN rail/wall mounts: 20 g (0.7 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Wall Mount: Polycarbonate
  DIN Rail Mount: Steel

Features

• WAN
• Priority & Fallback: Yes
• Cellular: Yes
• WiFi: Yes
• Ethernet: Yes
• LTE Passthrough mode: Yes
• Ethernet Bridge Mode: Yes
• VPN Client
• OpenVPN: Yes
• WireGuard: Yes
• Site-to-Site VPN
• IPsec: Yes
• WireGuard: Yes
• WiFi Standard: WiFi 4 (2.4 GHz, 20/40 MHz)
• Port Forwarding: Yes
• Firewall: Yes
• Static Routes: Yes

Networking

• Supported Data Rates
• 802.11n: 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps

Hardware

• Management: Ethernet
  WiFi
• LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
• Antennas
• Ports: (1) Mobile 1: SMA female (1Rx)
  (1) Mobile 2: SMA female (1Tx/1Rx)
  (1) WiFi: RP-SMA female
• Type: (2) External LTE antenna
  (1) External WiFi
• Max. TX Power: 17 dBm
• WiFi MIMO: 1 x 1
• Max. Power Consumption: 5.7W
• Power Method: USB Type-C (5V DC/2A)
  4-pin ATX DC (9—30V DC)
• Buttons: (1) Factory reset
• Ambient Operating Temperature: -30 to 70° C (-22 to 158° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
