Ubiquiti UniFi Dream Machine BEAST, Hyperscale-class Cloud Gateway, 25 Gbps IPS/IDS, 7,500+ client capacity, full UniFi application platform

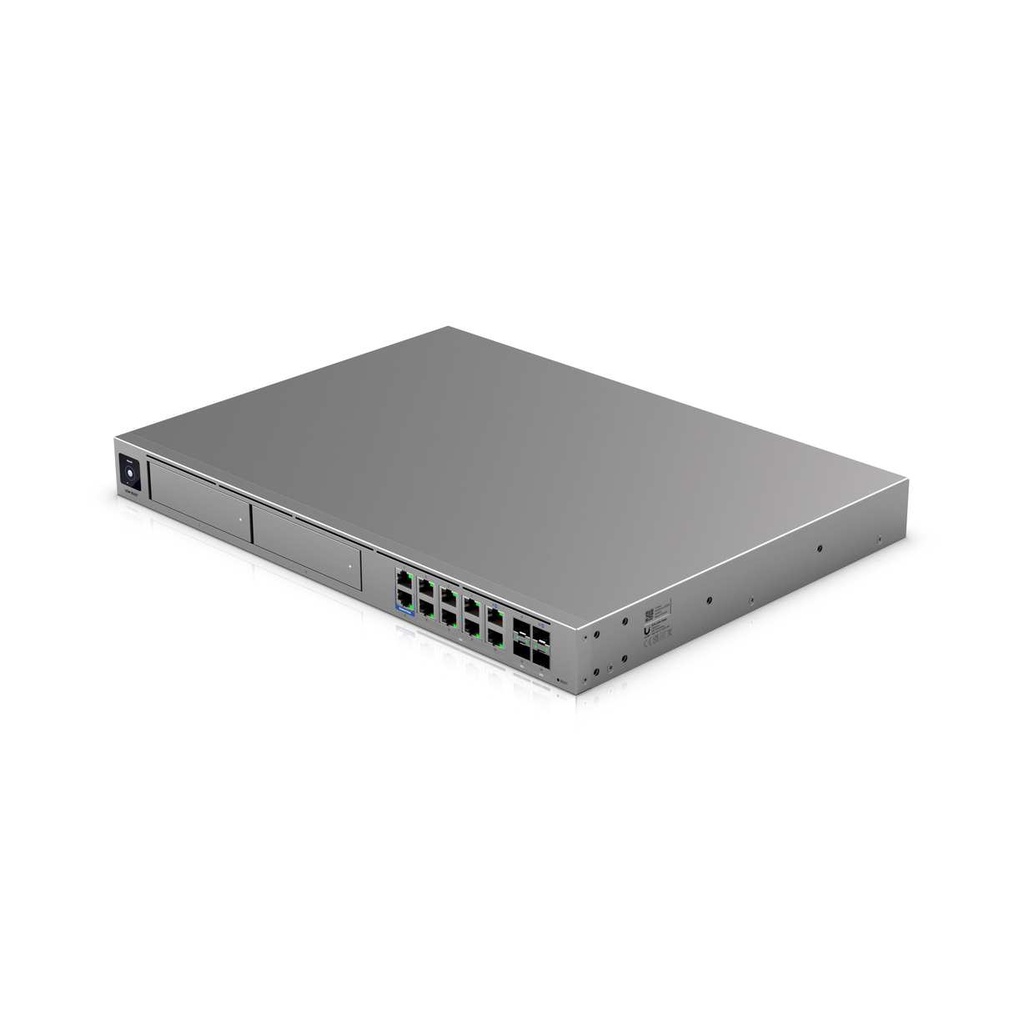

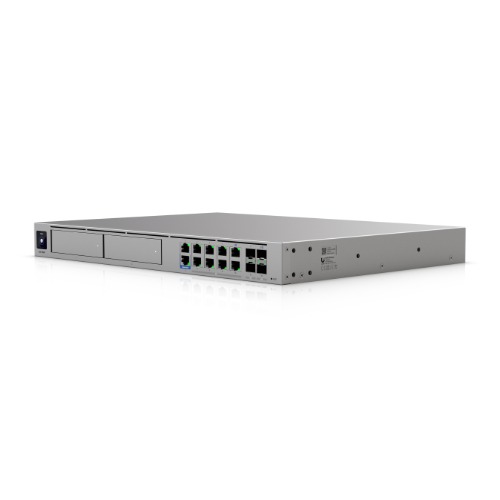

Ubiquiti Dream Machine BEAST

SKU; UDM-BEAST

Description:Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

Features:

• Includes full UniFi application suite for device management

Managed UniFi Devices - 750+
Managed Cameras - (100) HD, (60) 2K, (40) 4K
Managed Access Hubs - 200
Simultaneous Users Connected - 7,500+
Max. WAN Port Count - 8
Default WAN Ports - (1) 25G SFP28, (1) 10 GbE RJ45

Category: Network - UniFi / Console / Gateway

Overview

• Dimensions: 442.4 x 43.7 x 325 mm
  (17.4 x 1.7 x 12.8")
• UniFi Application Suite
• Network: Yes
• Protect: Yes
• Access: Yes
• Talk: Yes
• Connect: Yes
• Managed UniFi Devices: 750+
• Managed Cameras: (100) HD
  (60) 2K
  (40) 4K
• Managed Access Hubs: 200
• Simultaneous Users Connected: 7,500+
• Max. WAN Port Count: 8
• Default WAN Ports: (1) 25G SFP28
  (1) 10 GbE RJ45

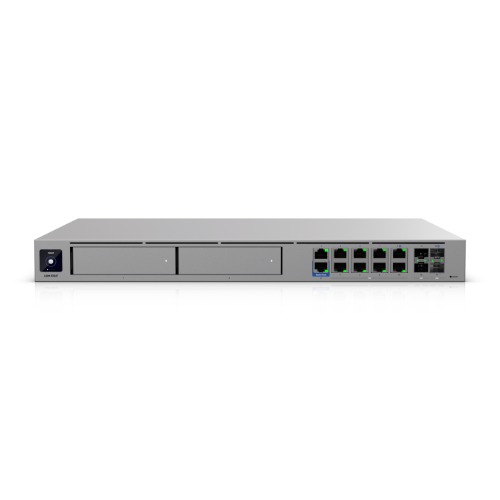

• Port Layout
• 1 GbE RJ45: 2
  (1G/100M/10M)
• 10 GbE RJ45: 8
  (10G/5G/2.5G/1G/100M)
• 10G SFP+: 2
  (10G/1G)
• 25G SFP28: 2
  (25G/10G/1G)
• Console: 1
• IDS/IPS Throughput: 25 Gbps

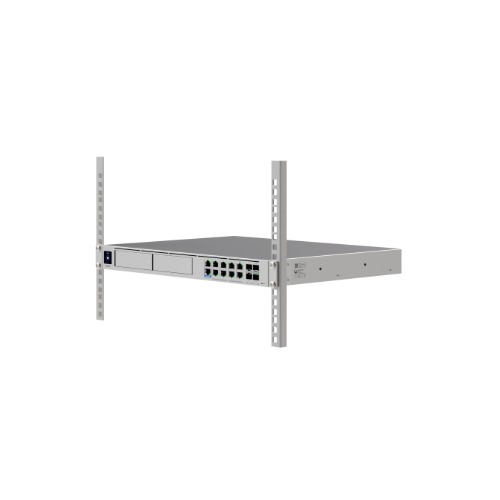

• Form Factor: Rack mount (1U)
• Redundancy: Shadow Mode (VRRP) Gateway Failover
  DC Power Backup (Enable DC power backup using UniFi RPS)

Security

• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Yes
• DPI & Traffic Identification: Yes
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
• Content Filtering: Yes
• Intrusion Prevention (IPS/IDS): Yes
• Ad Blocking: Yes
• IDS/IPS Signatures: 55,000+ with CyberSecure

VPN & SD-WAN

• License-Free SD-WAN: Yes
• Site-to-Site VPN
• Site Magic: Yes
• IPsec: Yes
• OpenVPN: Yes
• VPN Server
• Identity Endpoint One-Click VPN: Yes
• Teleport Zero-Configuration VPN: Yes
• WireGuard: Yes
• OpenVPN: Yes
• L2TP: Yes
• VPN Client
• OpenVPN: Yes
• WireGuard: Yes

Networking

• Multi-WAN Load Balancing: Yes
• Shadow Mode (VRRP) High Availability: Yes
• LACP Port Aggregation: Yes
• Dynamic Routing
• OSPF: Yes
• BGP: Yes
• Advanced QoS: Yes
• Multicast DNS (mDNS): Yes
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
• Integrated RADIUS Server: Yes
• RADIUS over TLS (RadSec): Yes
• Additional Internet Failover with UniFi LTE Backup: Yes
• Internet Quality and Outage Reporting: Yes
• MAC Address Table Size: 32,000
• Policy-based WAN and VPN Routing: Yes
• Customizable DHCP Server: Yes
• IPv6 ISP Support: Yes
• IGMP Proxy: Yes
• All Traffic Flows: Yes

Hardware

• NVR Storage: (2) 3.5" NVR HDD bays
  Built-in 128 GB SSD for Faster Experience
• Max. Power Consumption: 100W
• Power Method: (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
  (1) USP-RPS DC input, 11.5V DC, 13.05A
• Power Supply: AC/DC, internal, 150W
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 342 BTU/hr
• Processor: Octa-core ARM® v9 at 2.1 GHz
• System Memory: 16 GB
• On-board Storage: Integrated 128 GB SSD
• Weight: 5.5 kg (12.13 lb)
• Enclosure Material: Aluminium CNC, SGCC steel
• Mount Material: SGCC steel
• LCM Display: 1.3" touchscreen
• Management: Ethernet
  Bluetooth
• LEDs
• Ethernet: Yes
• SFP+: Yes
• SFP28: Yes
• RPS: Yes
• HDD: Yes
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC

Software

• Application Requirements
• Mobile App: UniFi iOS™: Version 10.34.0 and later
  UniFi Android™: Version 10.37.1 and later
