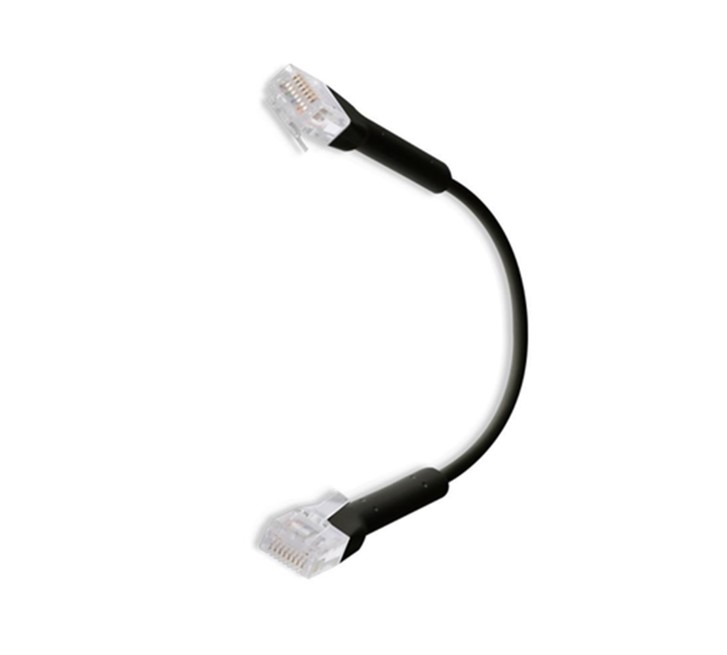

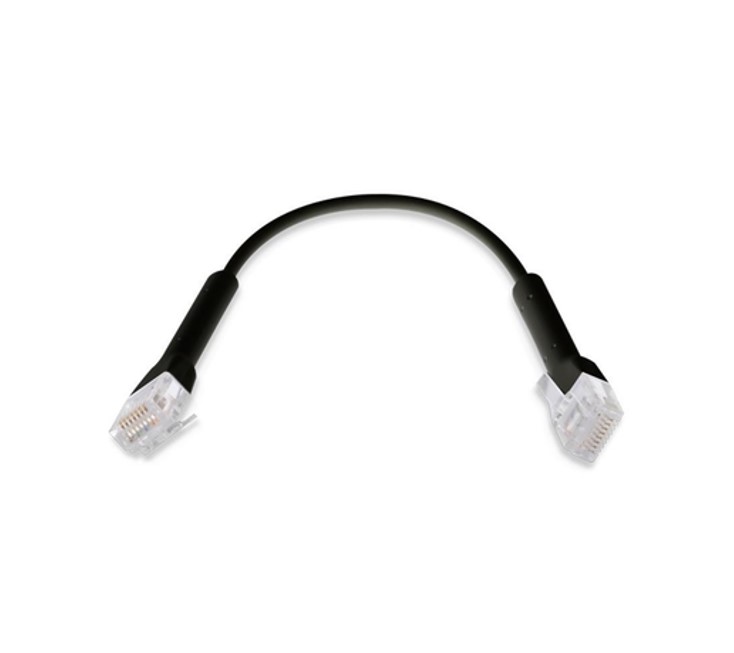

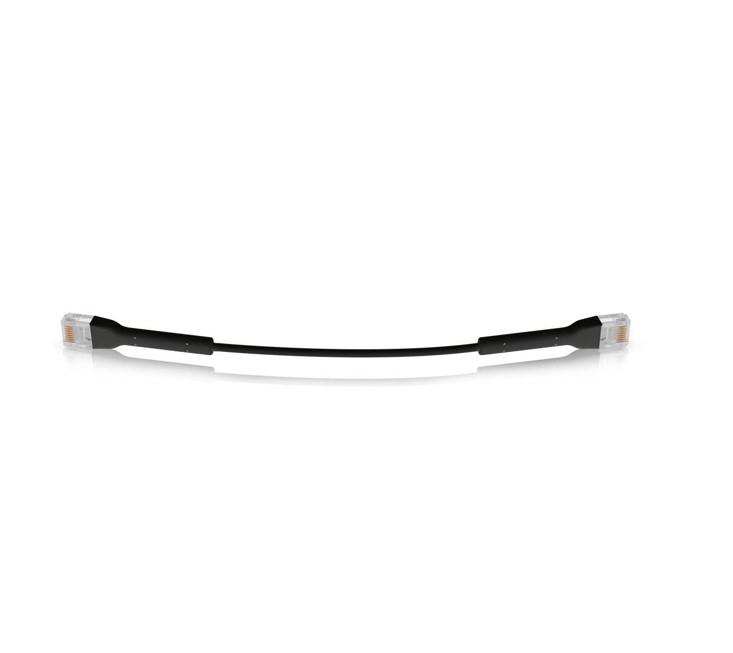

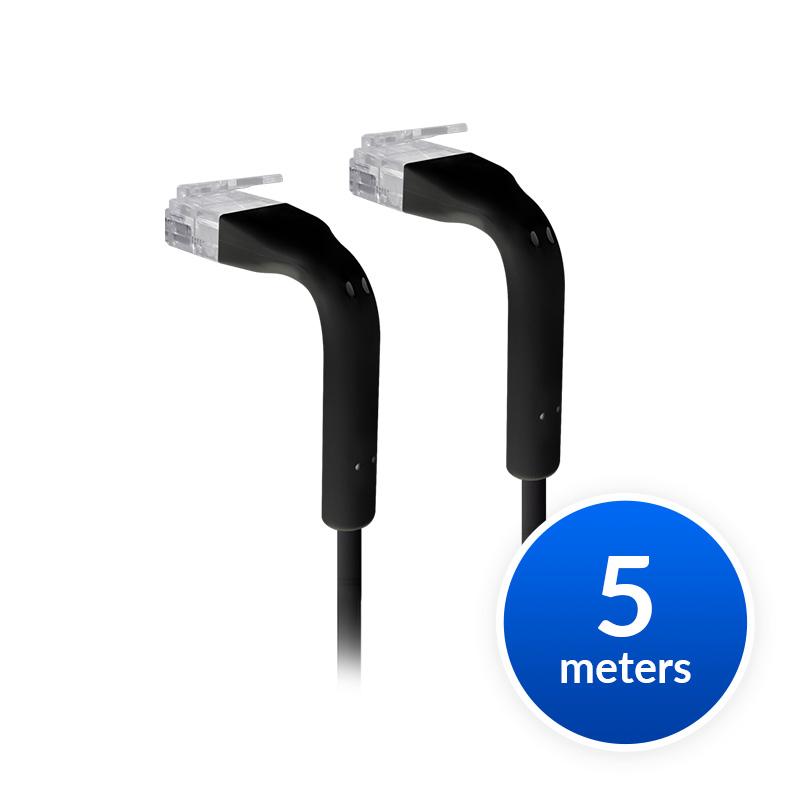

Ubiquiti UniFi Patch Cable Single Unit, 5m, Black, End Bendable to 90 Degree, RJ45 Ethernet Cable, Cat6, Ultra-Thin 3mm Diameter

Ubiquiti UniFi Patch Cable, Black, 5m

SKU:UC-PATCH-5M-RJ45-BK

Description: Ultra-thin OD 3mm Ethernet patch cable.

Features:

• Bendable booted RJ45
• Ultra-thin OD 3 mm
• Pass TIA-568-B.2 Cat6 Channel test by Fluke
• Bendable booted RJ45
• Short cable length 5m

Category: Network - UniFi / Cables & Modules

Overview

• Available Lengths: End-to-end: 0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m
  (0.7, 1.3, 3.3, 6.6, 9.8, 16.4, 26.2, 39.4, 49.2 ft)
• Available Colors: White, Blue, Black
• Pack Options: Single Unit (0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m)
  10-Pack ( 0.2, 0.4, 1, 2, 3 m)
  24-Pack (0.2, 0.4, 1, 2 m)
  50-Pack (0.2, 0.4 m)
• Supported Data Rate: 10 GbE
• Supported PoE Type: Up to PoE+++
• Connector: (2) Bendable booted RJ45
• Operating Environment: Indoor
• Cable
• Jacket Diameter: 0.2–8 m (0.7–26.2 ft): 2.5 mm (0.1")
  12–15 m (39.4–49.2 ft): 2.9 mm (0.11")
• Jacket Material: Thermoplastic elastomer (TPE)
• Shielding Type: UTP
• Conductor Type: Stranded copper
• Conductor Wire Gage: 0.2–8 m (0.7–26.2 ft): 34 AWG
  12–15 m (39.4–49.2 ft): 32 AWG
• Bendable Boot: Max. ±90° / ±45° (vertical/horizontal)
• Bend Radius: 0.2–8 m (0.7–26.2 ft): Min. 21 mm (0.83")
  12–15 m (39.4–49.2 ft): Min. 24 mm (0.94")
• Flame Rating: VW-1 (UL1581)
• Standards: TIA/EIA-568-B.2
  ISO/IEC 11801
• Installation Temperature: -20 to 60°C (-4 to 140°F)
• Ambient Storage Temperature: -20 to 75°C (-4 to 167°F)
• Ambient Operating Temperature: -20 to 60°C (-4 to 140°F)
• NDAA Compliant: Yes
