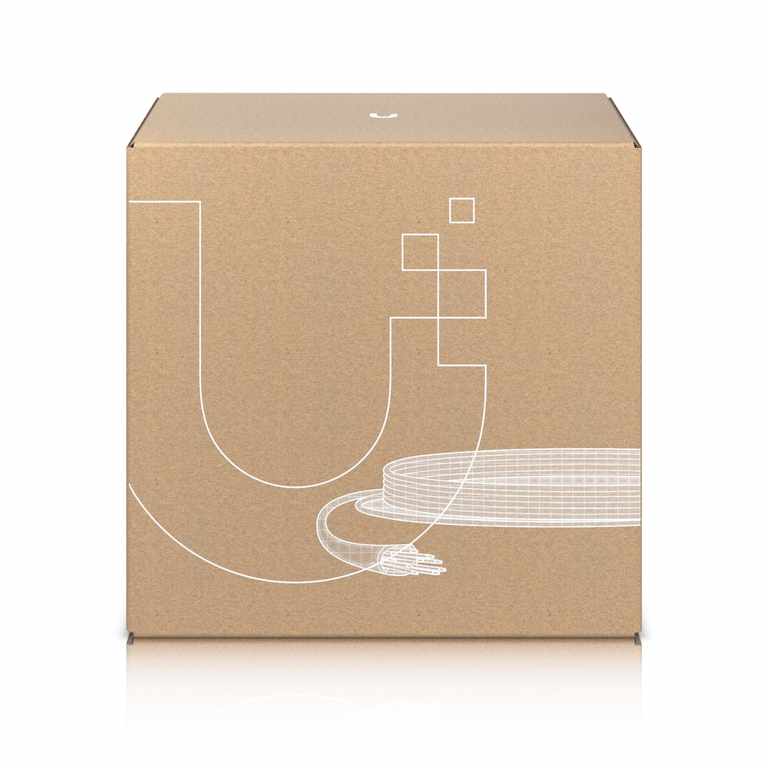

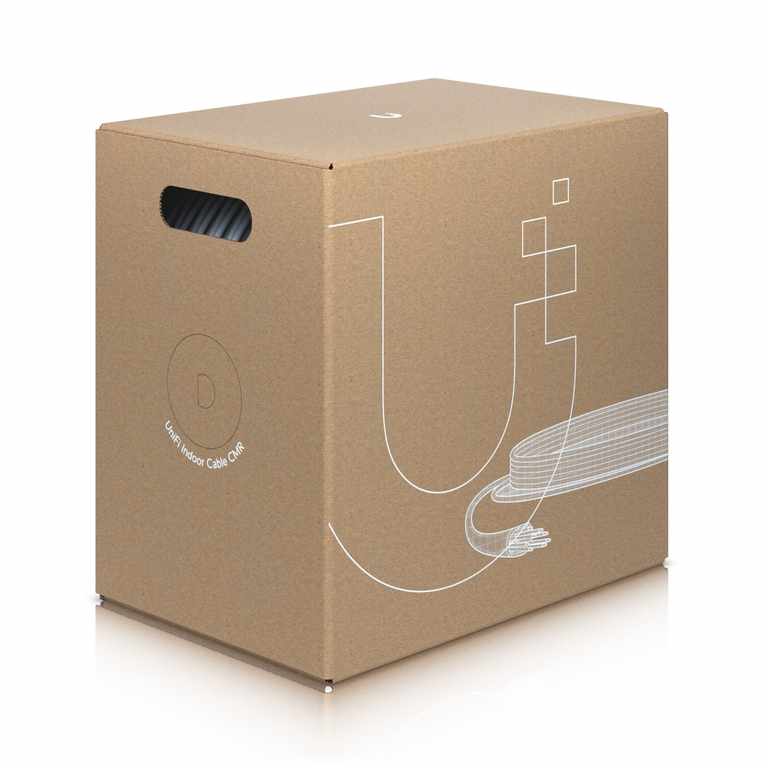

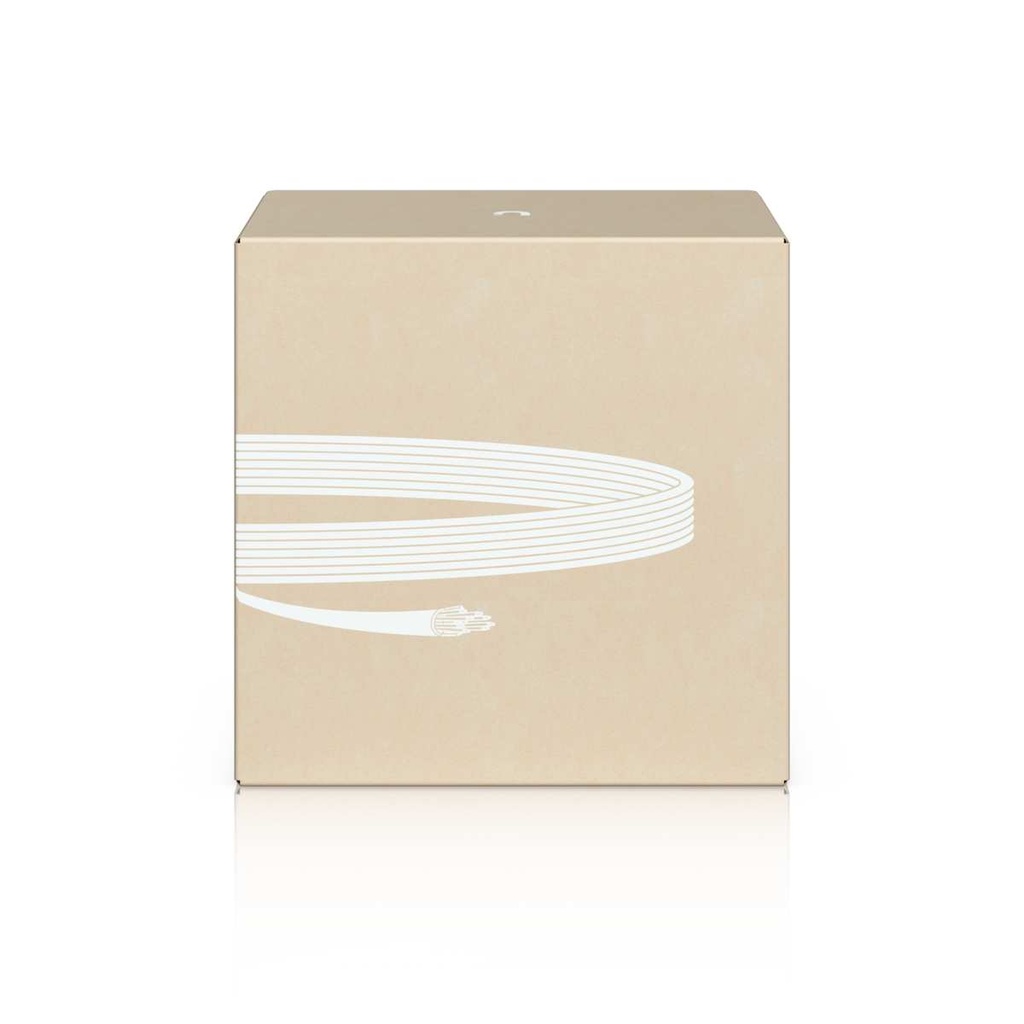

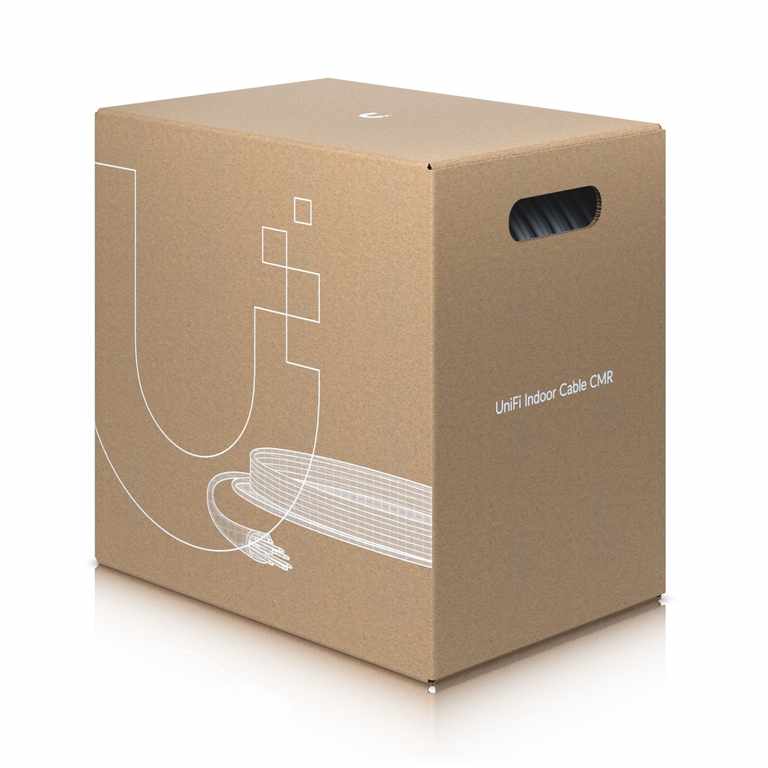

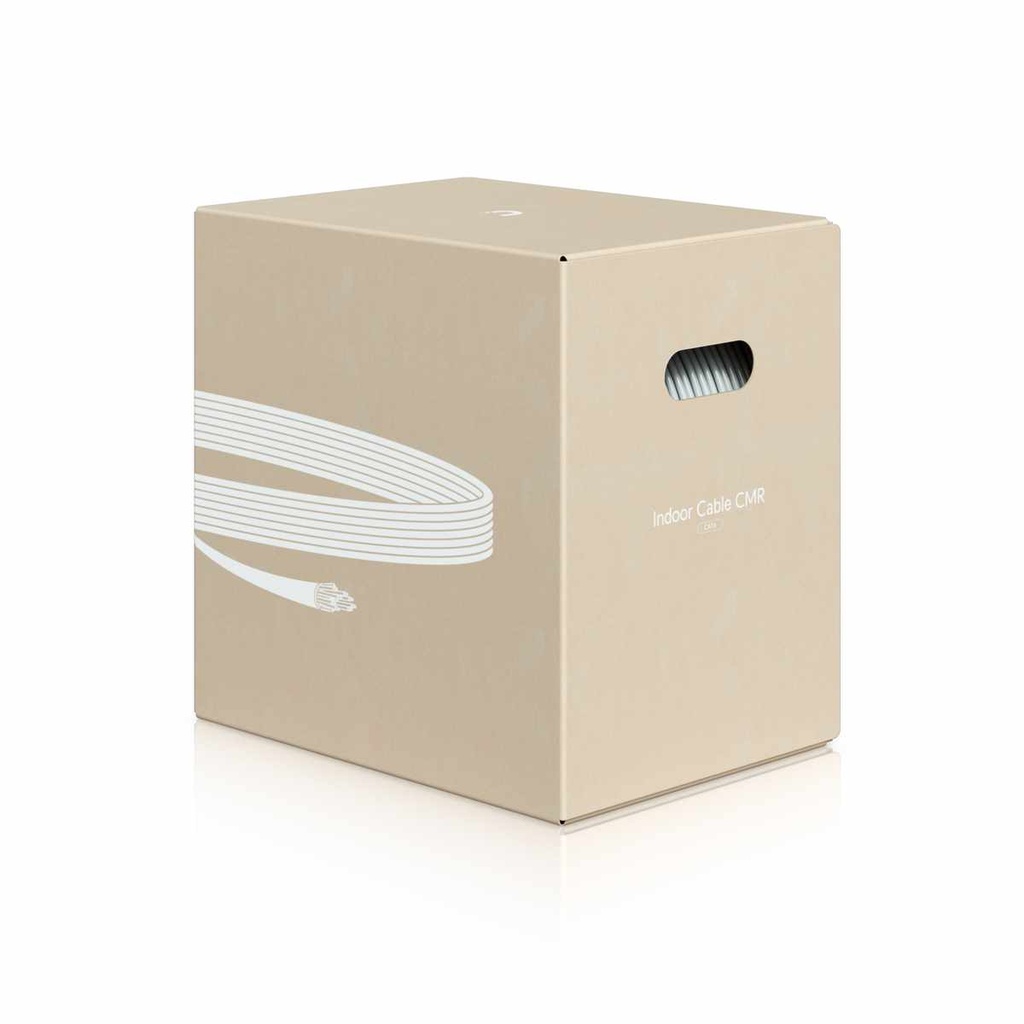

Ubiquiti UniFi Ethernet Cable, Category 6 UTP (Unshielded Twisted Pair), Up To 10G Ethernet, 304m, Anti-crosstalk Divider

Ubiquiti UniFi Indoor Cable CMR

SKU: U-Cable-C6-CMR

Description: Category 6 Ethernet cable for high-speed, indoor deployments.

Features:

• Category 6 UTP communications multipurpose cable
• Riser (CMR)-rated, fire-resistant jacket
• Anti-crosstalk divider
• Cable length 305 m

Category: Network - UniFi / Cables & Modules

Overview

• Length: 305 m (1,000 ft)
• Type: Category 6
• Flame Rating: CMR
• Operating Environment: Indoor
• Box Dimensions: 476 x 306 x 419 mm
  (18.7 x 12 x 16.5")
• Box Weight: 14.6 kg (32.2 lb)
• Cable
• Jacket Color: White
• Jacket Diameter: 5.9 ± 0.2 mm
• Jacket Material: Flame retardant polyvinyl chloride (FRPVC)
• Shielding Type: UTP
• Conductor Type: Solid bare copper
• Conductor Wire Gage: 23 AWG
• Bend Radius: Min. 24 mm
• Twisting: 4 Twisted pairs with color code.
  Pair 1: white-blue / blue
  Pair 2: white-orange / orange
  Pair 3: white-green / green
  Pair 4: white-brown / brown
• Anti-Crosstalk Divider: Yes
• Ripcord: Yes
• Standards
• Electrical Transmission: ANSI/TIA-568.2-D
  ISO/IEC 11801 (Edition 2.2)
  IEC 61156-5 (Edition 2.1)
• Flame Test: UL 1666 (CMR)
• Material and Construction: UL 444
  CSA 22.2 NO.214
  EU Directive 2011/65/EU (RoHS2)
  EU Directive 2006/95/EC (LVD)
• Installation Temperature: 0 to 60°C (32 to 140°F)
• Ambient Storage Temperature: -20 to 75°C (-4 to 167°F)
• Ambient Operating Temperature: -20 to 60°C (-4 to 140°F)
