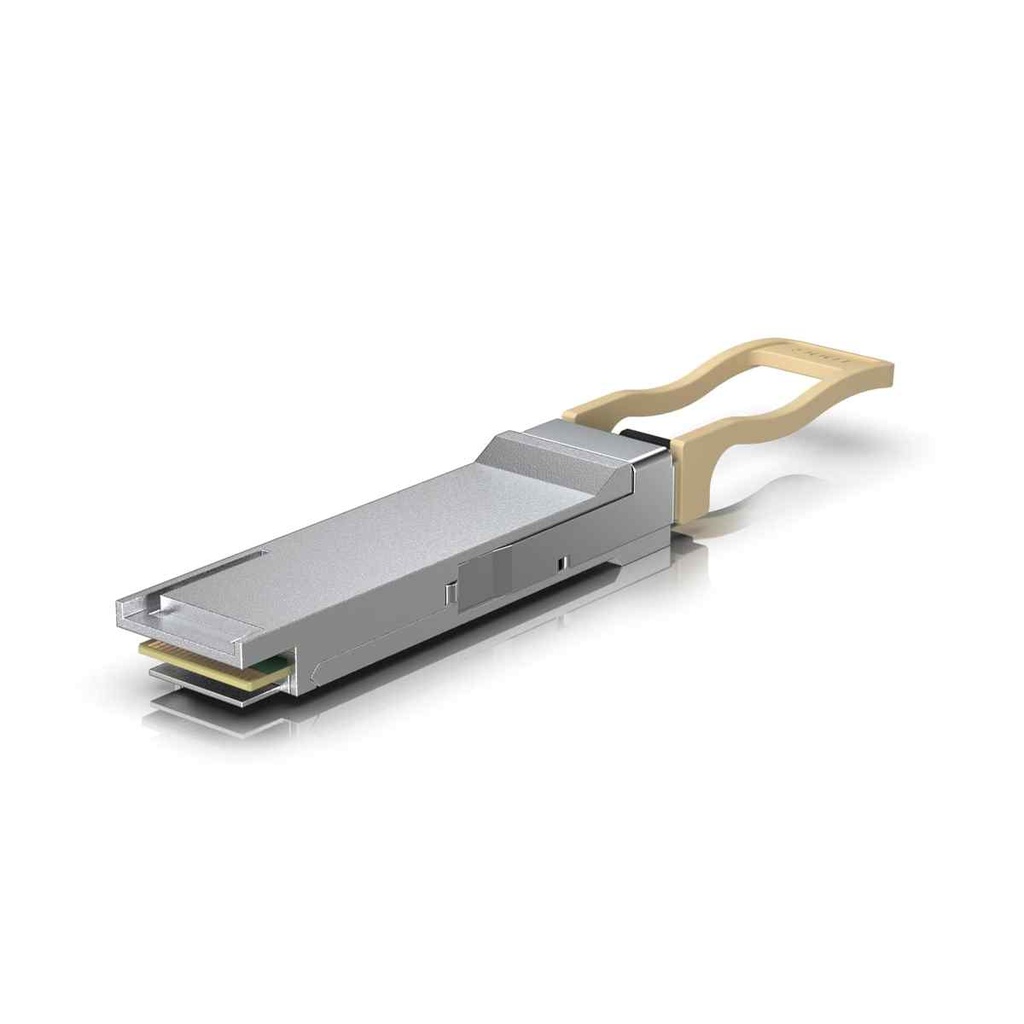

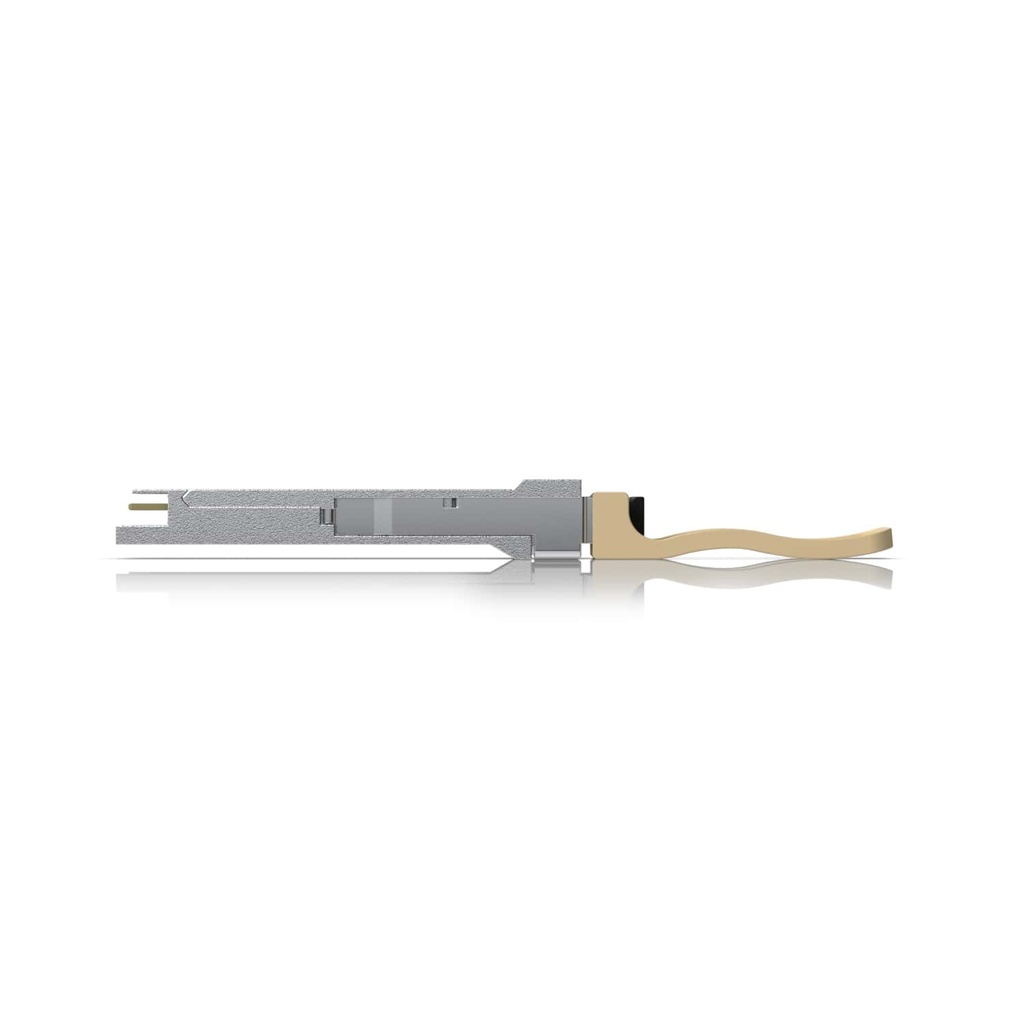

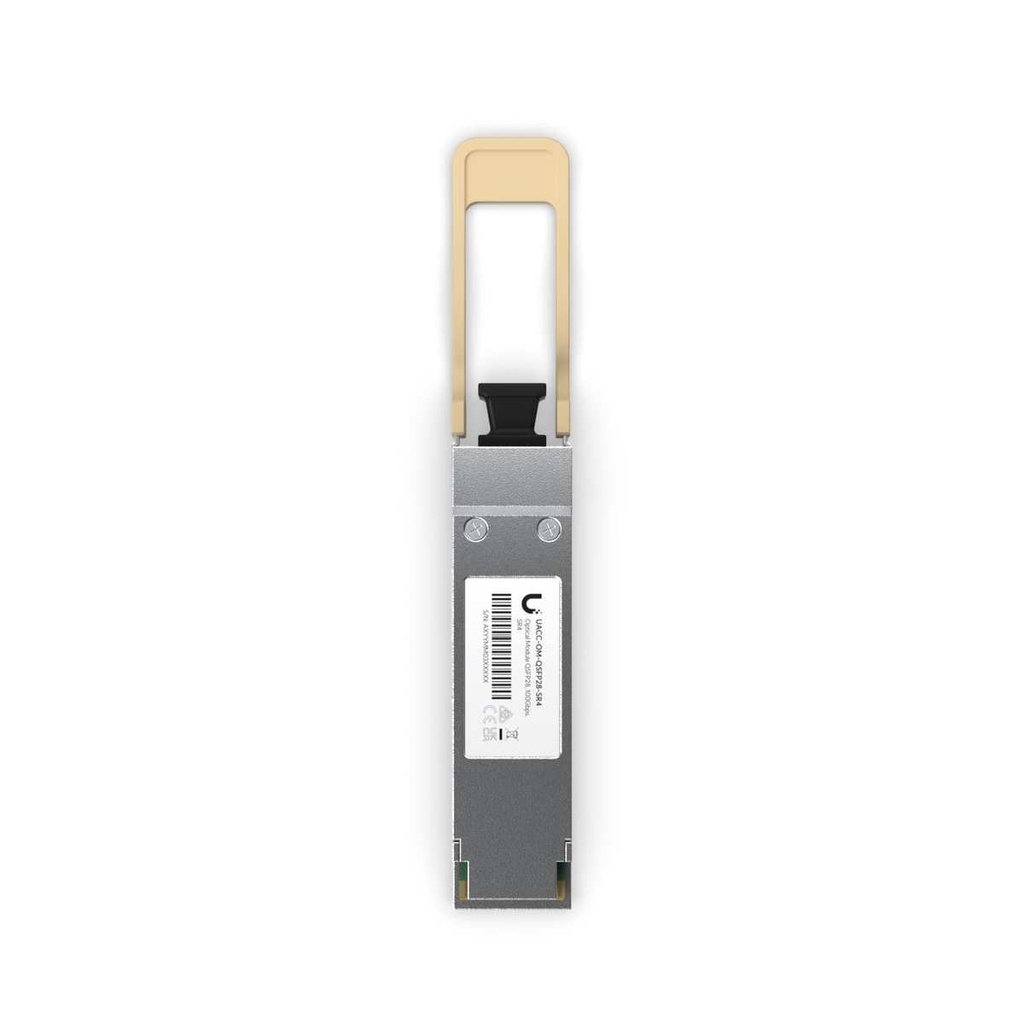

Ubiquiti 100G SR4 Multi-Mode Optical Module, QSFP28 Transceiver Supports 100G Connections Up To 100 m Using Multi-Mode Fiber, MPO-12 Type

Ubiquiti 100G SR4 Multi-Mode Optical Module

SKU: UACC-OM-QSFP28-SR4

Description:
QSFP28 transceiver that supports 100G connections up to 100 m using multi-mode fiber with an MPO-12 Type B UPC connector.

Features:

• Max data rate: 100 Gbps
• Compatible with QSFP28 and QSFP+ interfaces
• MPO-12 Type B UPC connector
• Supports multi-mode fiber connections up to 100 m*(Fiber cable is not included.)

Category: Network - UniFi / POE & 31

Overview

• Form Factor: QSFP28
• Connector: MPO-12 Type B UPC
• Supported Media: Multi-Mode Fiber
• TX Wavelength: 850 nm
• RX Wavelength: 850 nm
• Supported Data Rate: 40 / 100 Gbps
• Supported Cable Distance: OM4 - 100 m (328 ft)
  OM3 - 70 m (229 ft)
• Max. Power Consumption: 2.5 W
• Pack Options: Single Unit
• Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
• WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014
  Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
