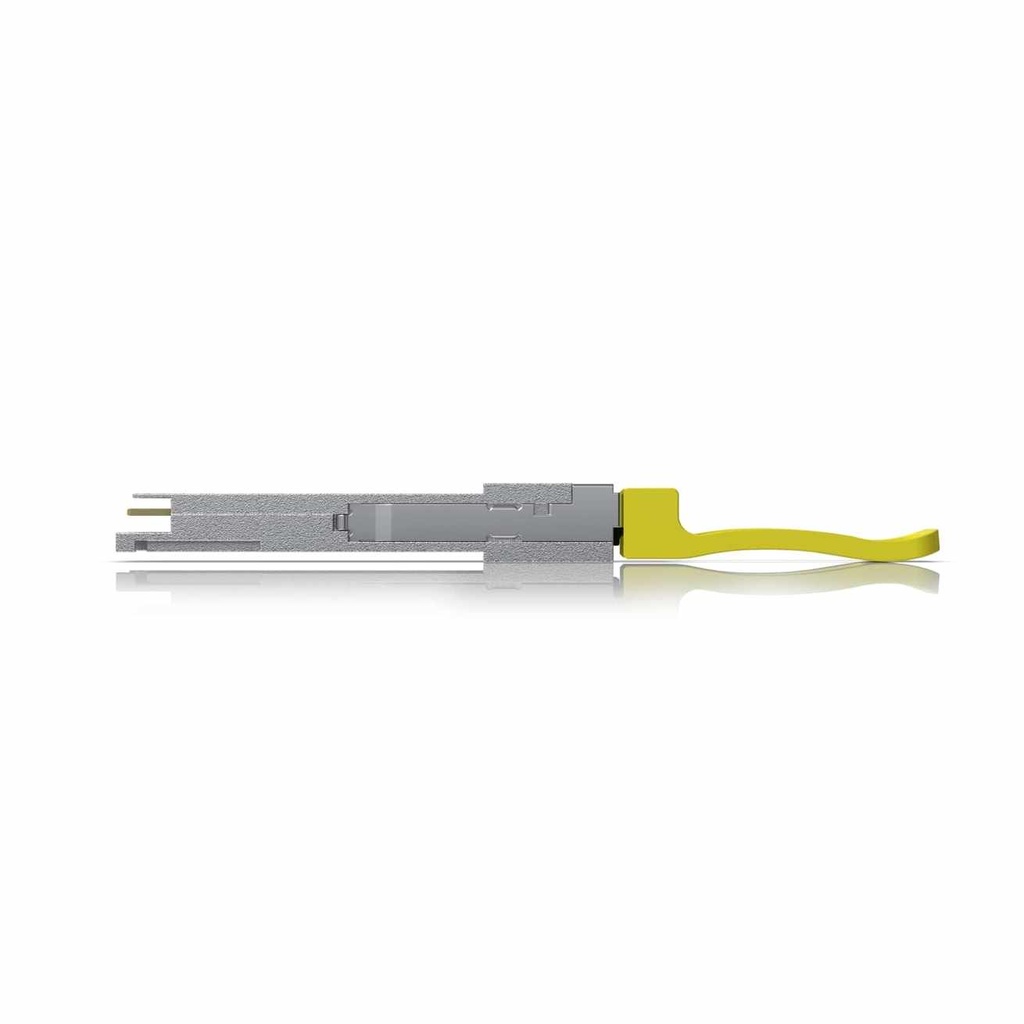

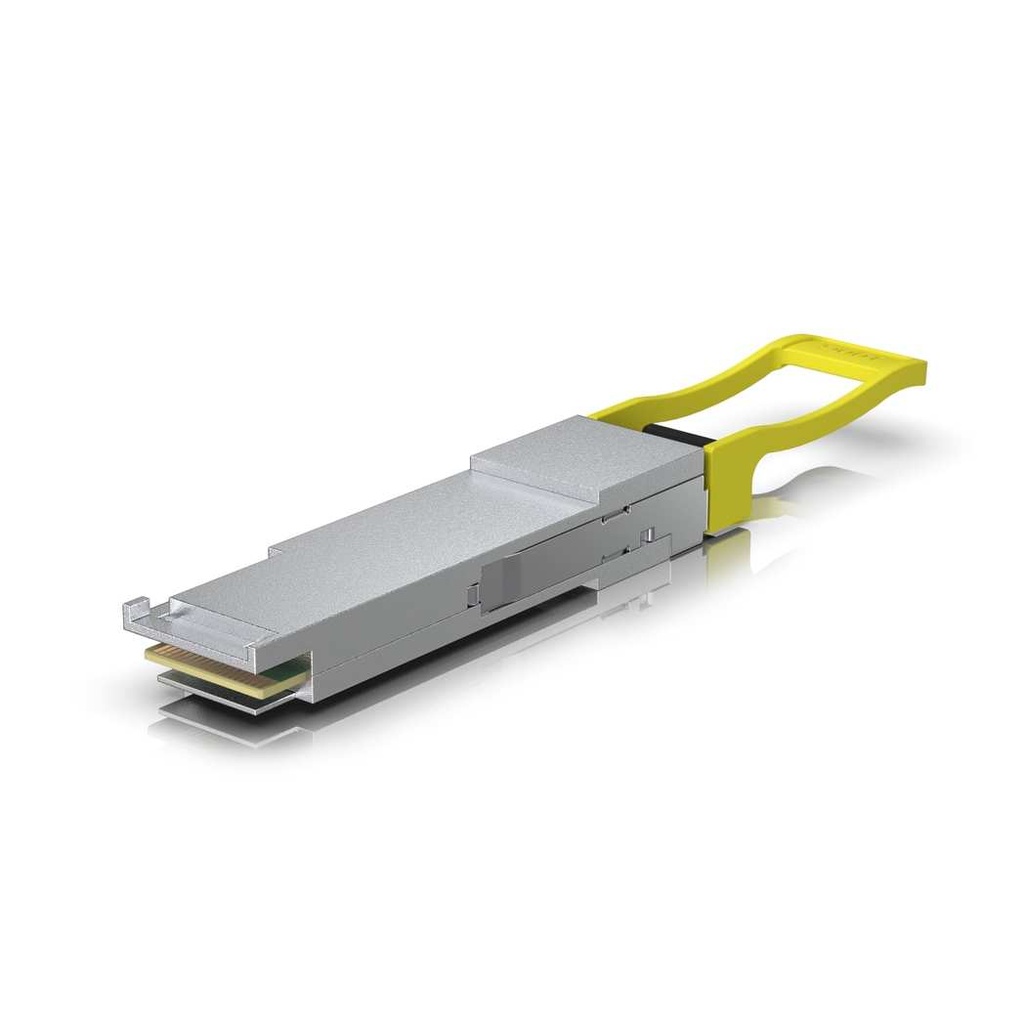

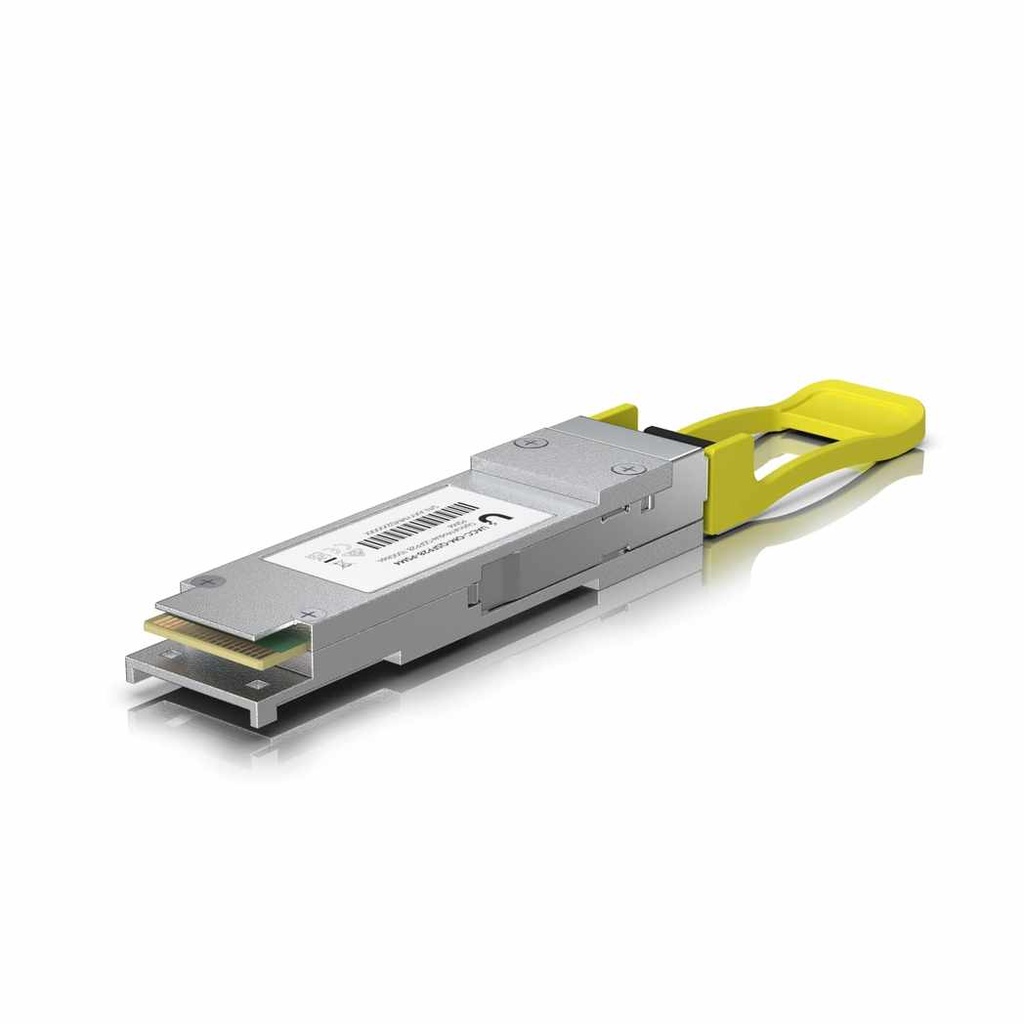

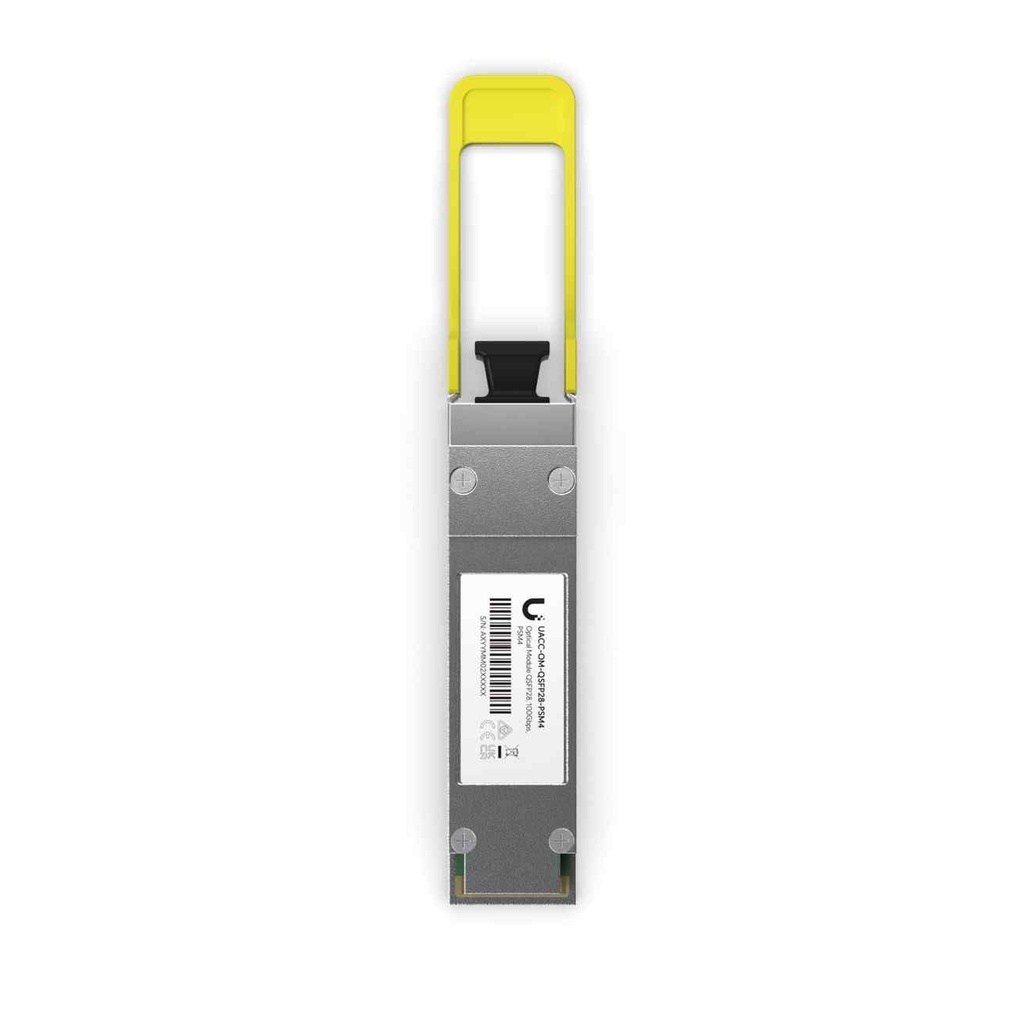

Ubiquiti 100G PSM4 Single-Mode Optical Module,QSFP28 Transceiver Dupports 100G Connections Up to 2 km,Single-mode Fiber, MPO-12 APC Connector.

Ubiquiti 100G PSM4 Single-Mode Optical Module

SKU: UACC-OM-QSFP28-PSM4

Description:
QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.

Features:

• Max data rate: 100 Gbps
• Compatible with QSFP28 and QSFP+ interfaces
• MPO-12 Type B APC connector
• Supports single-mode fiber connections up to 2 km*

*Requires OS2 single-mode fiber. Transmission distance is limited to 500 m with OS1 single-mode fiber. Fiber cable is not included.

Category: Network - UniFi / Data Rack Cabinets & 31

Overview

• Form Factor: QSFP28
• Connector: MPO-12 Type B APC
• Supported Media: Single-Mode Fiber
• TX Wavelength: 1310 nm
• RX Wavelength: 1310 nm
• Supported Data Rate: 100 Gbps
• Supported Cable Distance: 2 km (1.2 mi)
• Max. Power Consumption: 3.5 W
• Pack Options: Single Unit
• Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
• WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014
  Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
