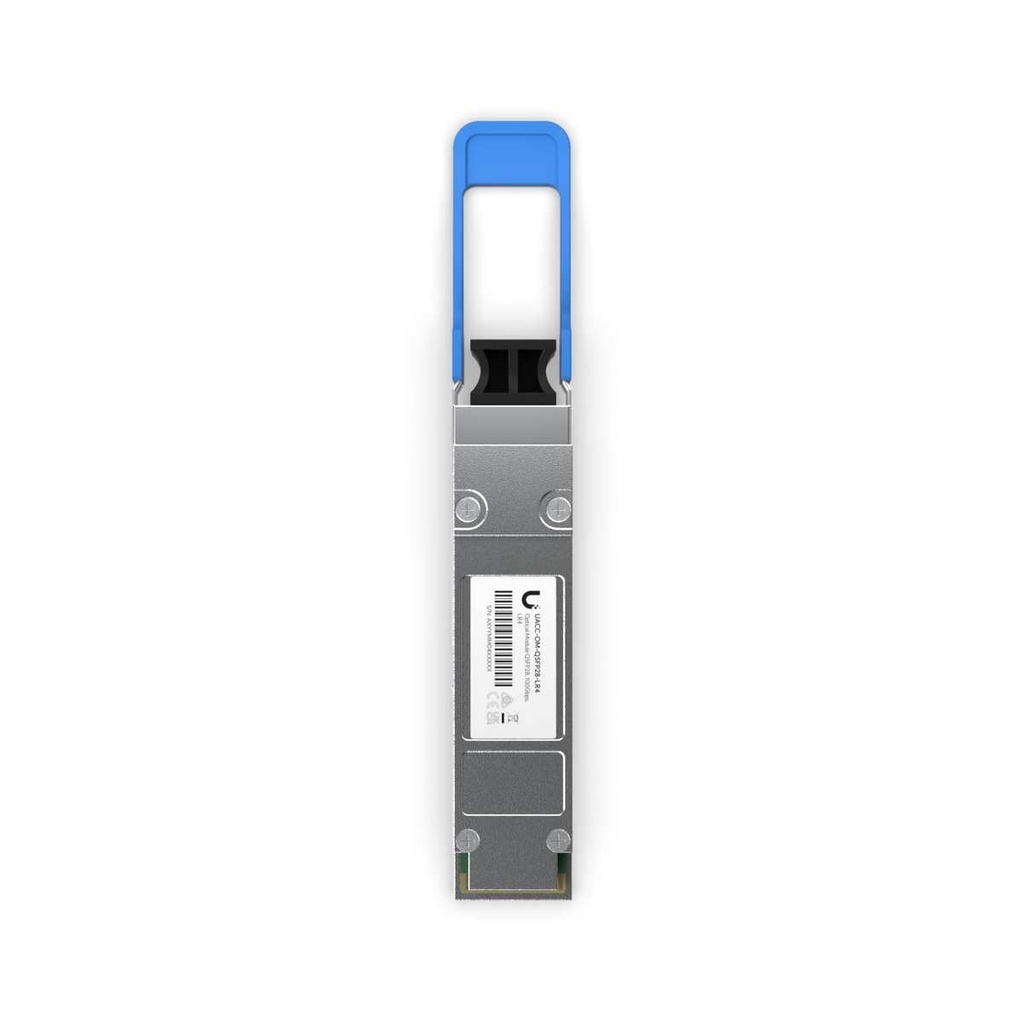

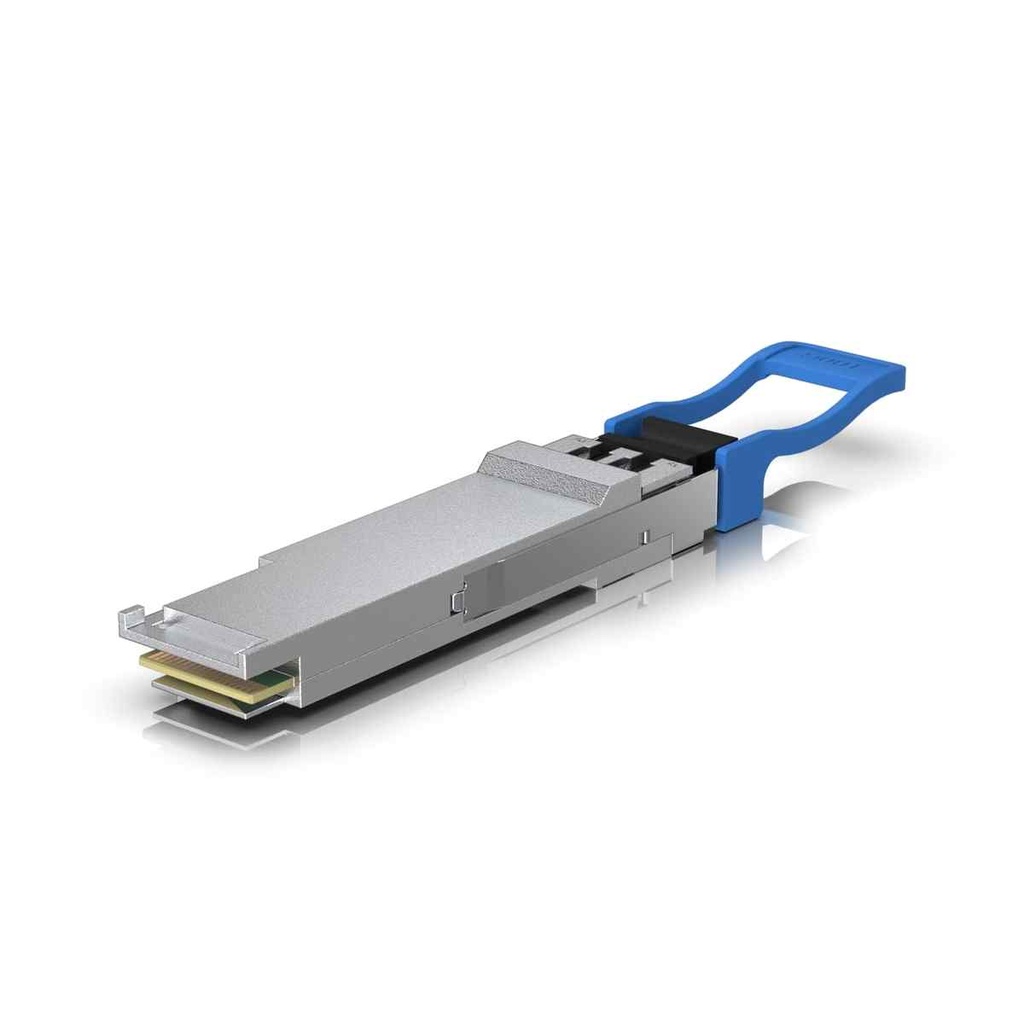

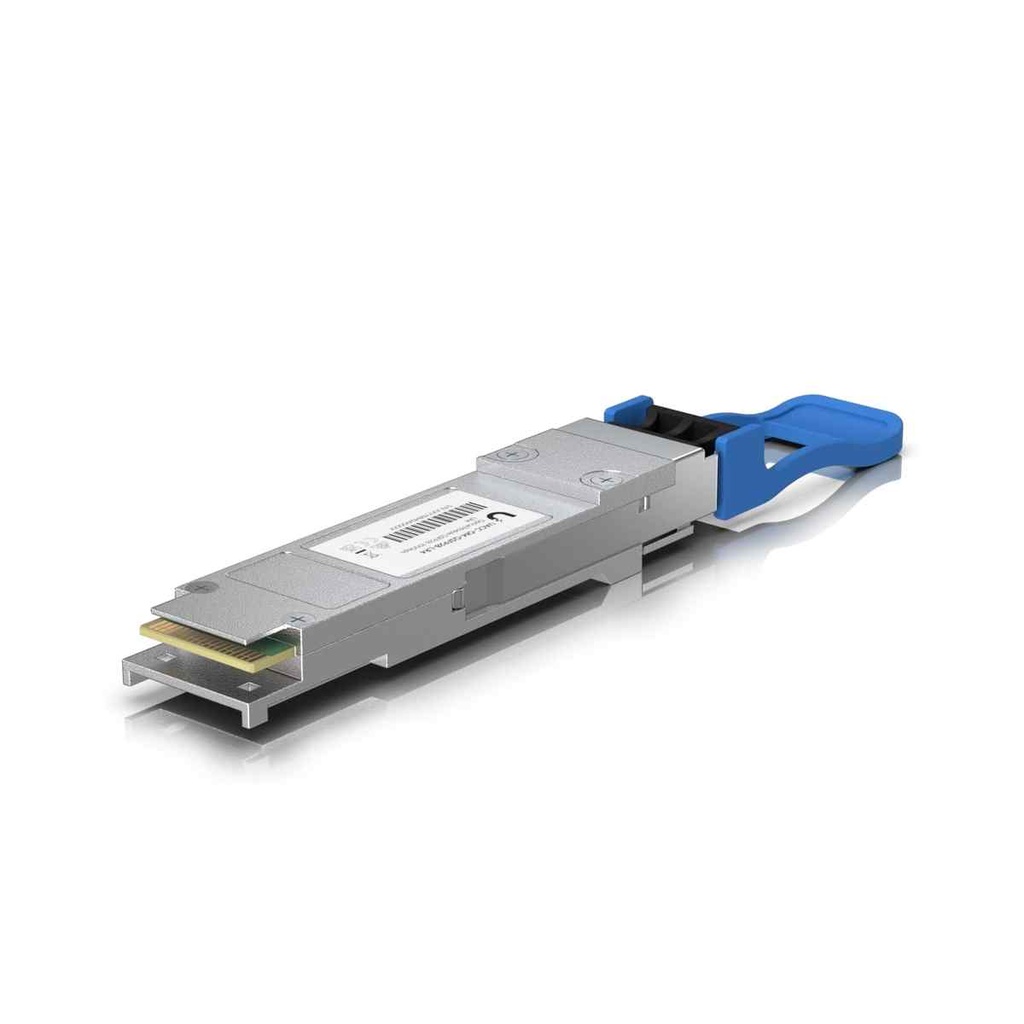

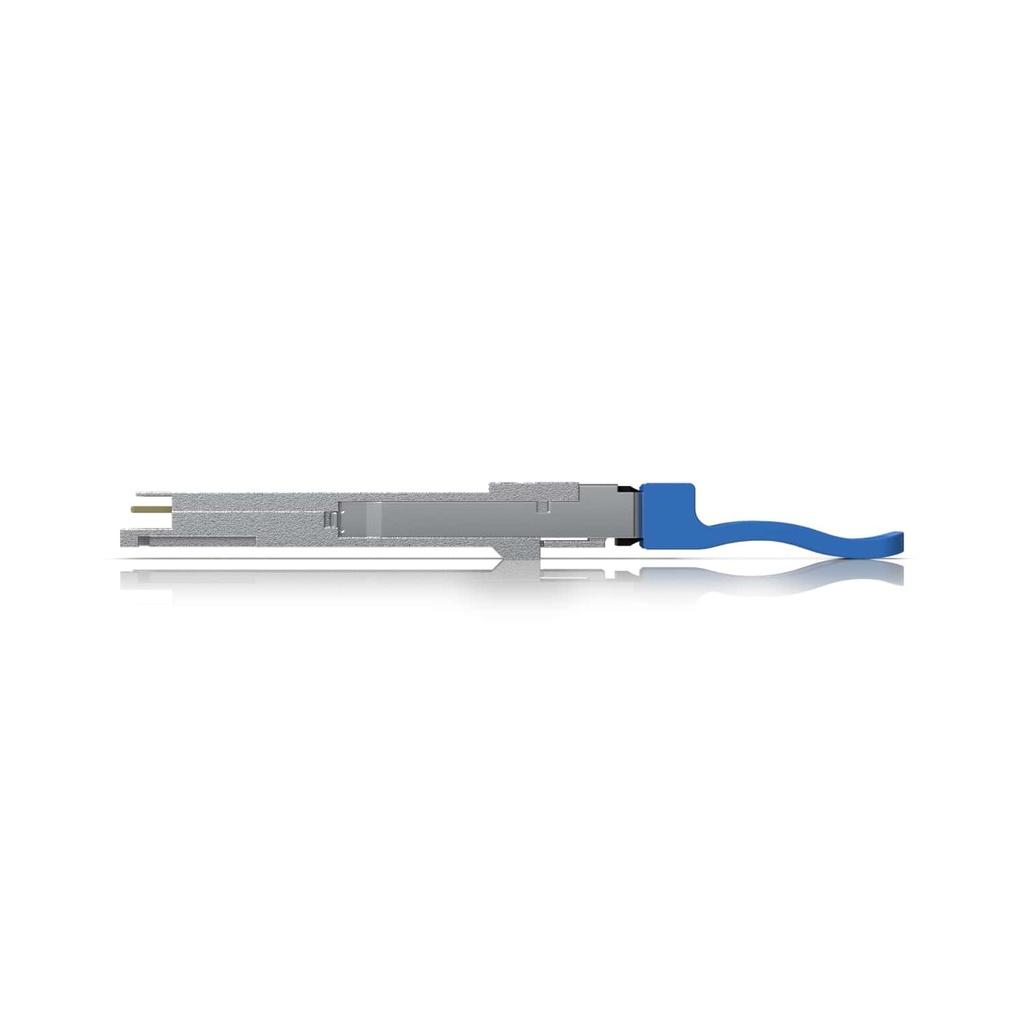

Ubiquiti 100G LR4 Single-Mode Optical Module, QSFP28 Transceiver, Supports 100G Connections, 10 Km Using Single-Mode Fiber, Duplex LC UPC Connector.

Ubiquiti 100G LR4 Single-Mode Optical Module

SKU: UACC-OM-QSFP28-LR4

Description:
QSFP28 transceiver that supports 100G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.

Features:

• Max data rate: 100 Gbps
• Compatible with QSFP28 and QSFP+ interfaces
• Duplex LC UPC connector
• Supports single-mode fiber connections up to 10 km*

Category: Network - UniFi / POE & 31

Overview

• Form Factor: QSFP28
• Connector: Duplex LC UPC
• Supported Media: Single-Mode Fiber
• TX Wavelength: 1295 / 1300 / 1304 / 1309 nm
• RX Wavelength: 1295 / 1300 / 1304 / 1309 nm
• Supported Data Rate: 100 Gbps
• Supported Cable Distance: 10 km (6.2 mi)
• Max. Power Consumption: 4 W
• Pack Options: Single Unit
• Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
• WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014
  Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
