Ubiquiti UniFi 5G Max, A High-Performance 5G (3.4 GBps) Modem, Unifi Deployment. Adopt Through UniFi PoE Port, Delivers Automatic Setup, dual SIM/eSIM

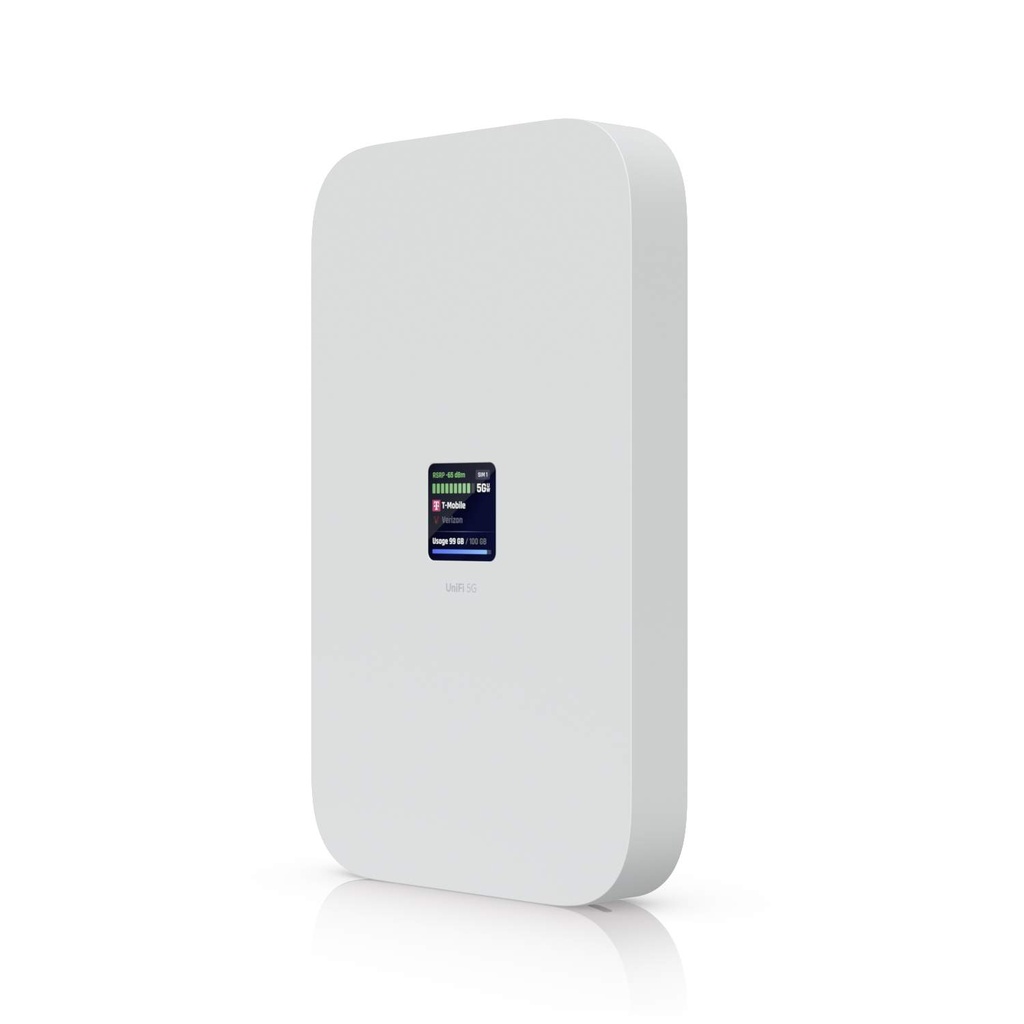

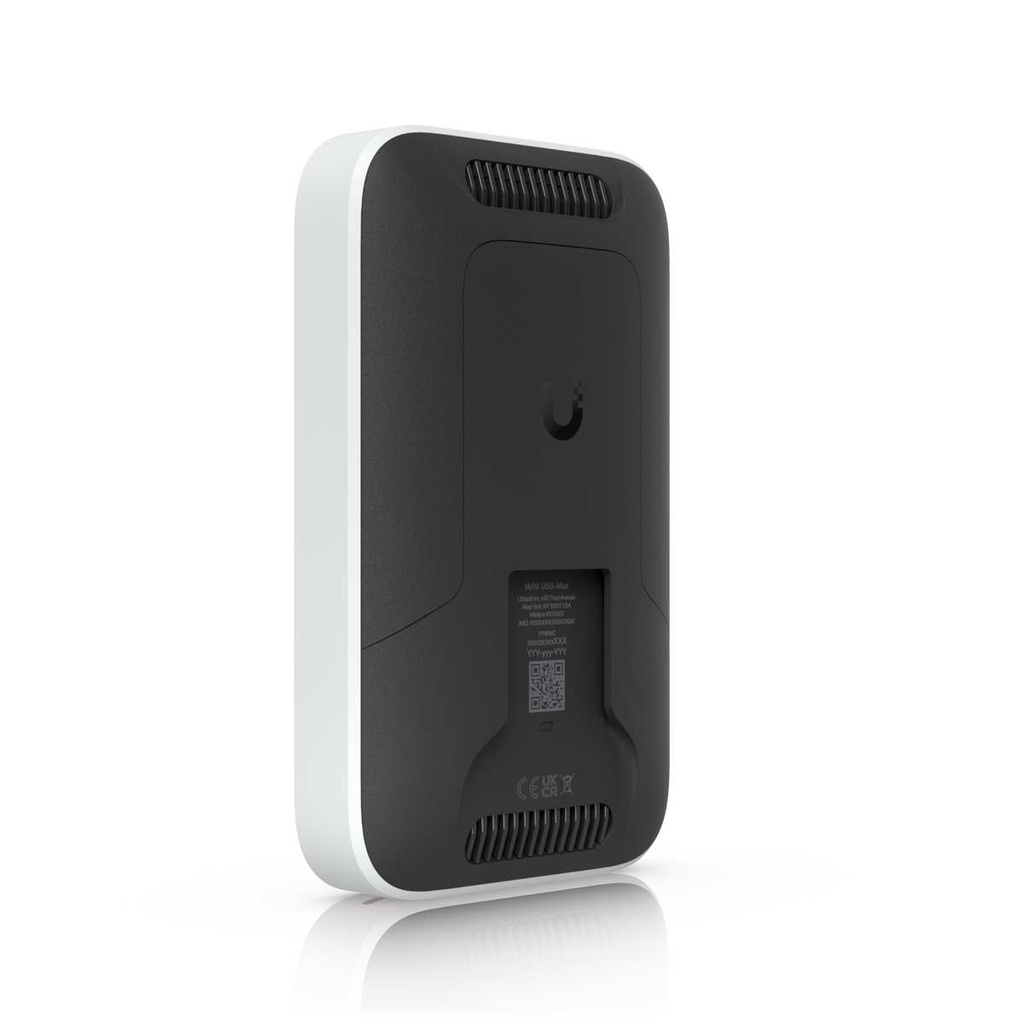

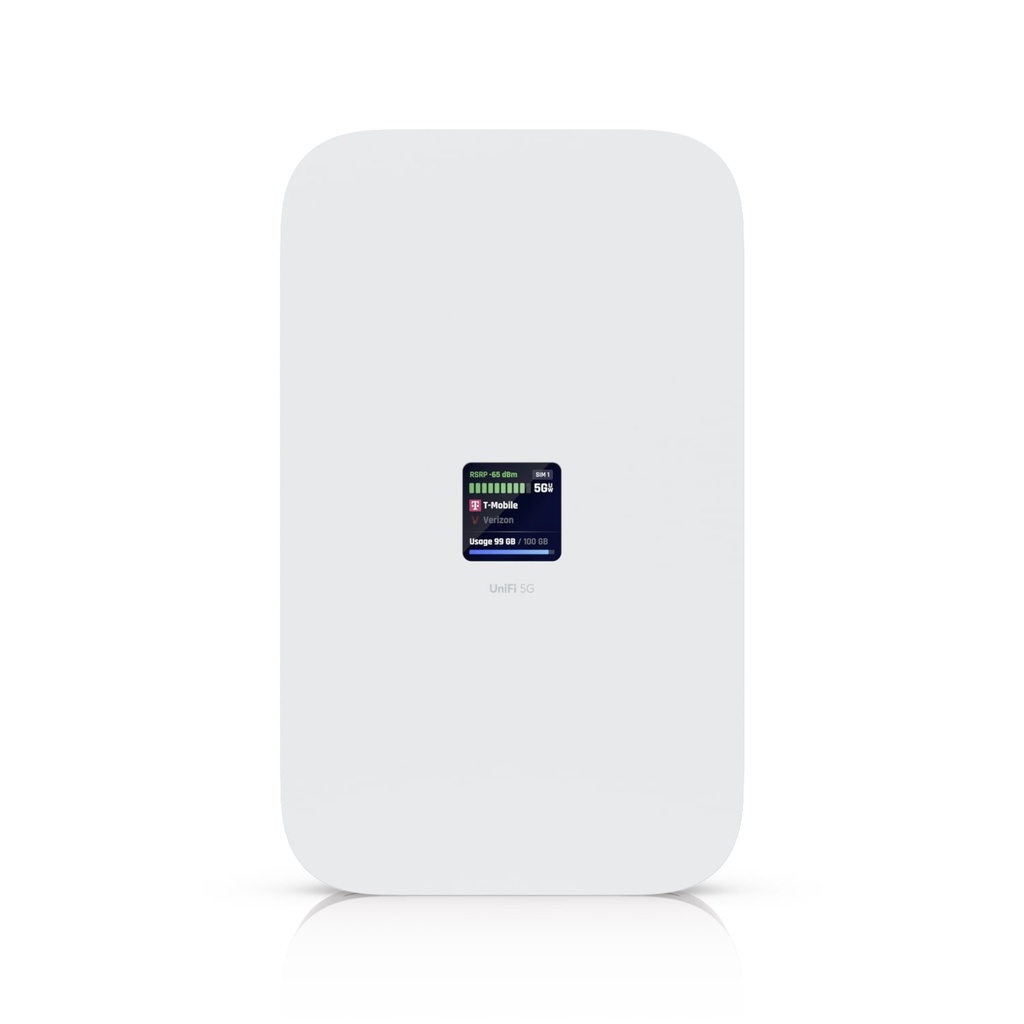

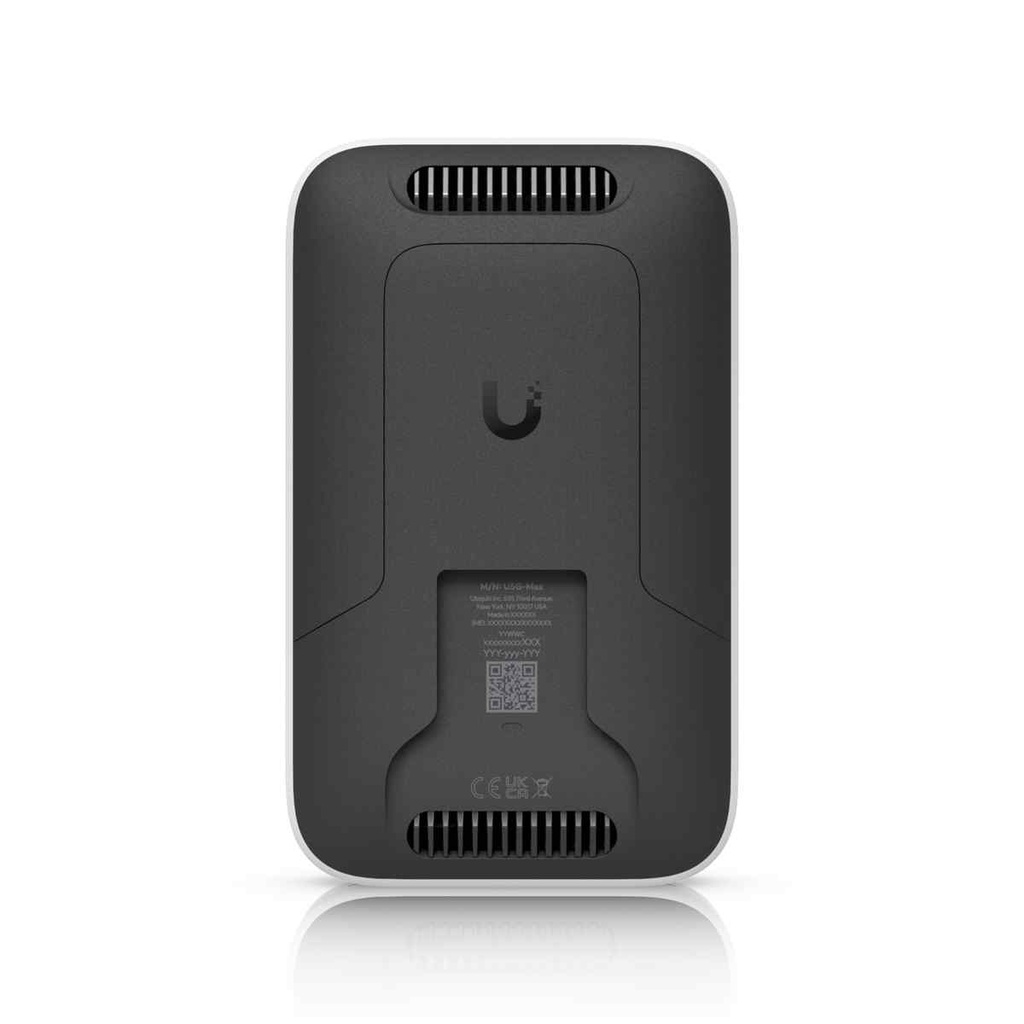

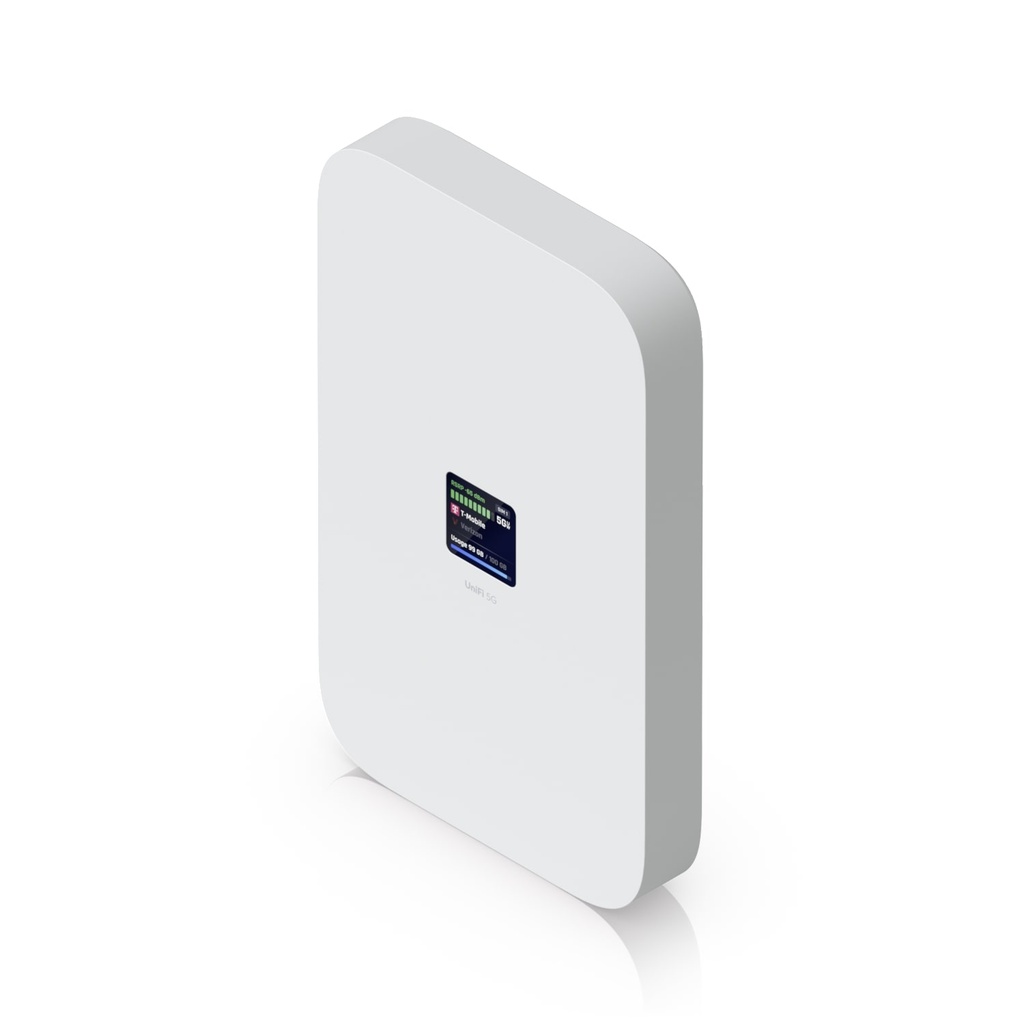

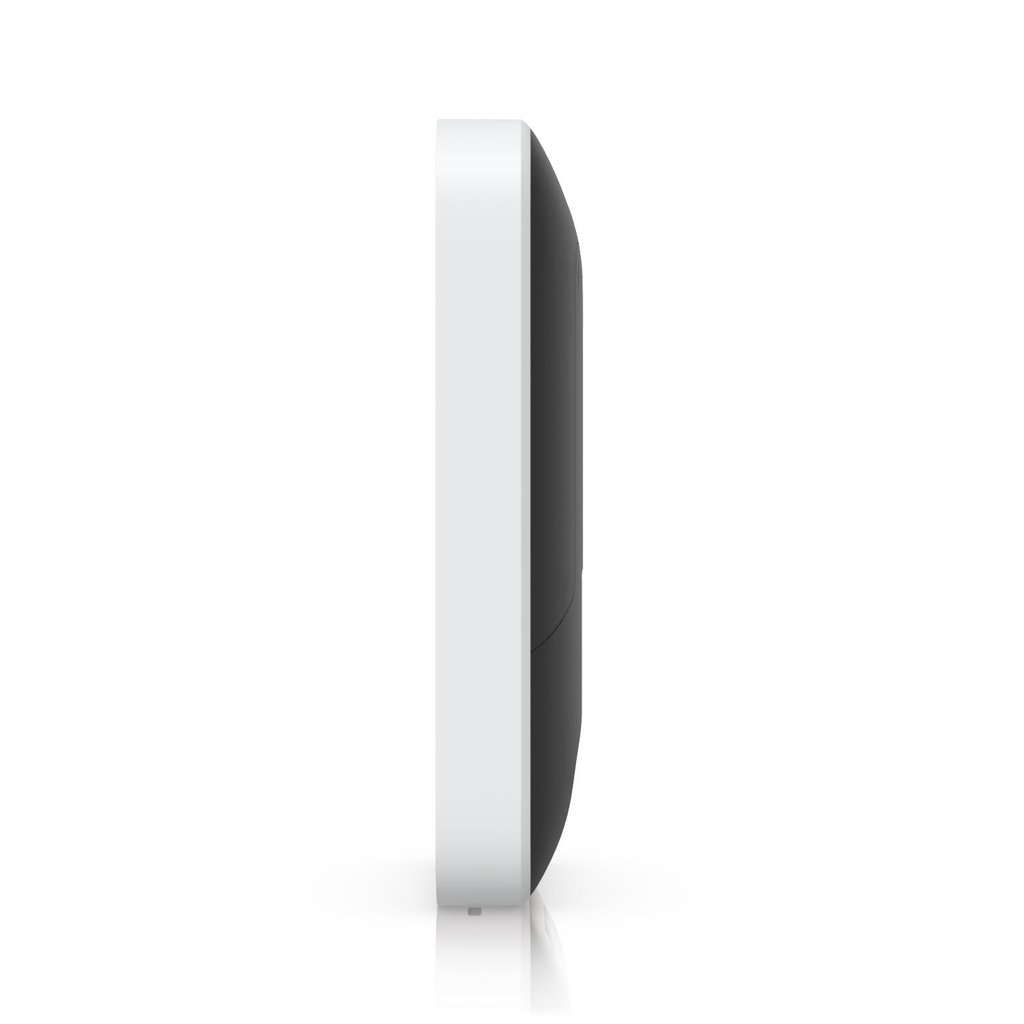

Ubiquiti UniFi 5G Max

SKU: U5G-Max

Description:
A high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.

Category: Network - UniFi / Console / Gateway

Overview

• Dimensions: 180 x 109 x 33.8 mm
  (7.1 x 4.3 x 1.3")

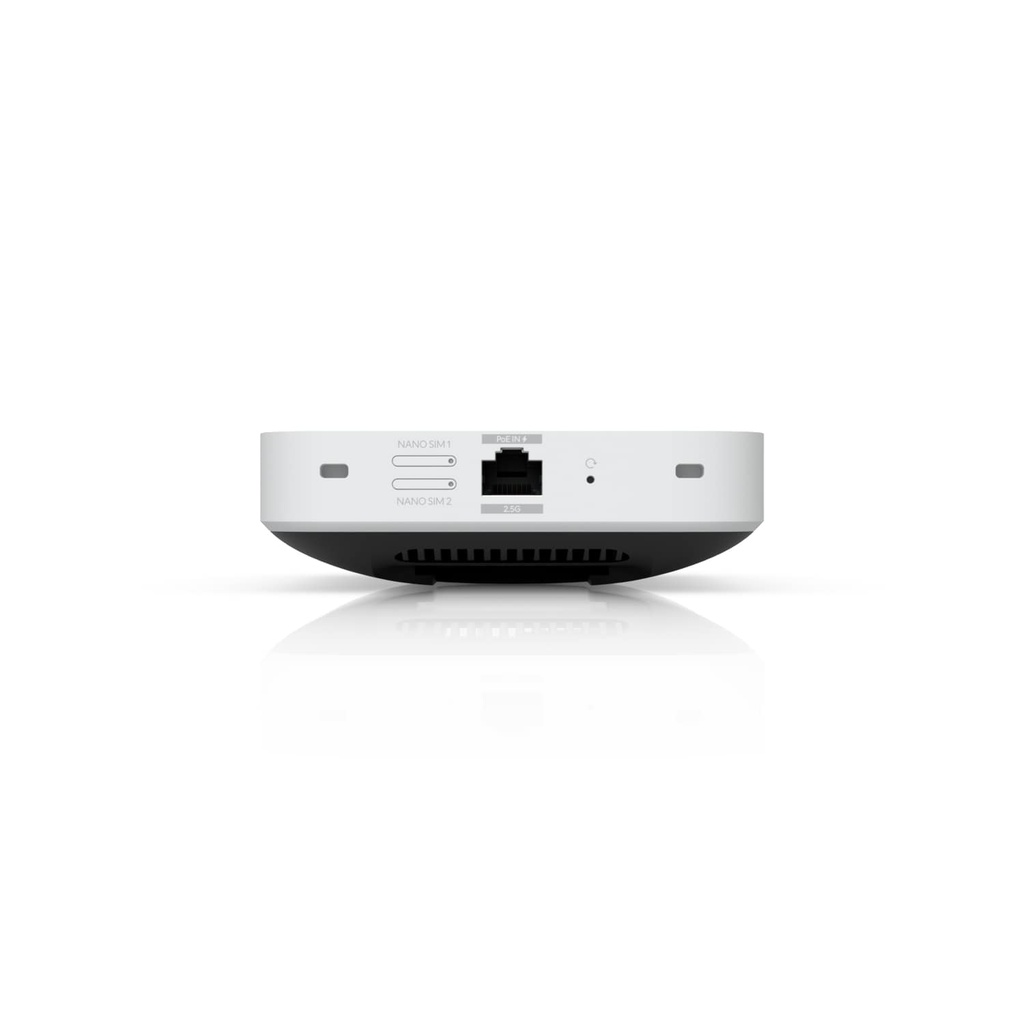

• Networking Interface: (1) 2.5 GbE RJ45 port
  5G NR and LTE radio
• SIM: (1) Nano SIM
  (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active.)
• PoE Interface: (1) PoE input
• Mounting: Desktop stand, wall, window mount (Included)
• Tamper Resistance: IK04

Mechanical

• Weight: Device: 410 g (14.5 oz)
  Stand: 215 g (7.6 oz)
  Wall mount: 7.6 g (0.3 oz)
  Window mount: 20 g (0.7 oz)
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Polycarbonate, silicone rubber

Hardware

• Management: Ethernet
• 5G NR
• Category: 5G NR
• Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
• Max. TX Power: HPUE power class 2: 26 dBm
• 4G LTE
• Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
• Max. TX Power: HPUE power class 2: 25 dBm
• 3G UMTS
• Frequency Bands: B1, B2, B4, B5, B8, B19
• Peak Data Speed
• 5G NSA: Downlink 3.4 Gbps
  Uplink 560 Mbps (Speed depends on network coverage and performance at the device location)
• 5G SA: Downlink 1.8 Gbps
  Uplink 650 Mbps
• 4G LTE: Downlink 1.6 Gbps
  Uplink 210 Mbps
• Antennas
• Type: (4) Embedded cellular antennas
• Max. Power Consumption: 14.5W
• Power Method: PoE
• Display: 1.3" touchscreen
• Buttons: (1) Factory reset
• Ambient Operating Temperature: 0 to 40 °C (32 to 104 °F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile

Software

• Application Requirements
• UniFi Network: Version 10.0.162 and later (An alternative internet connection (e.g., standard ISP or WAN) is required to update UniFi consoles and Cloud Gateways before U5G-Max adoption.)
