Ubiquiti UniFi 5G Max Outdoor,Full-Performance 5G (3.4 Gbps)Modem,UniFi Consoles,Cloud Gateways,Outdoor Use,Directional Antennas,Remote/Dual SIM

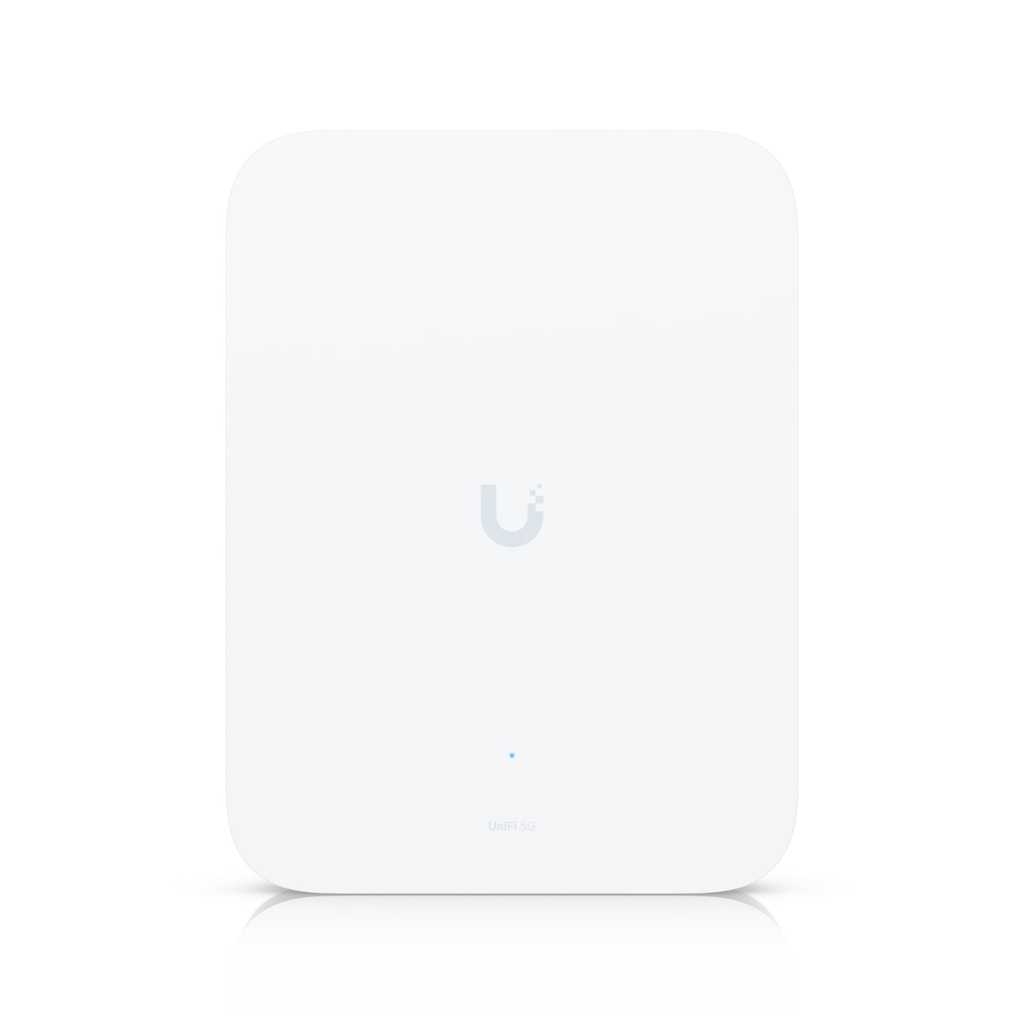

Ubiquiti UniFi 5G Max Outdoor

SKU: U5G-Max-Outdoor

Description:
A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM, and dual SIM for seamless failover.

Category: Network - UniFi / Console / Gateway

Overview

• Dimensions: Device: 220 x 165 x 66.9 mm
  (8.7 x 6.5 x 2.6")
  With mount: 220 x 165 x 122 mm
  (8.7 x 6.5 x 4.8")
• Networking Interface: (1) 2.5 GbE RJ45 port
  5G NR and LTE radio
• SIM: (1) Nano SIM
  (1) Nano-SIM or eSIM (Nano-SIM 2 cannot be used when an eSIM is active.)
• PoE Interface: (1) PoE input

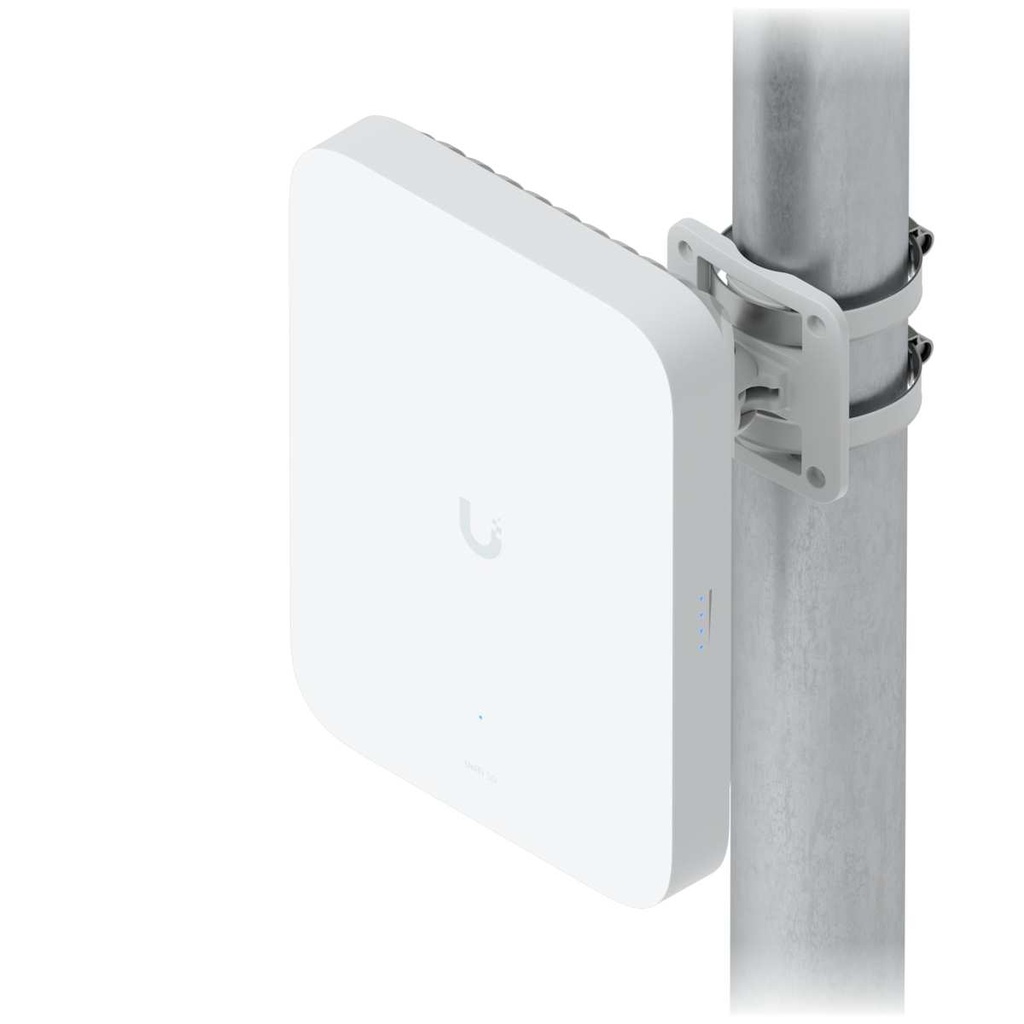

• Mounting: Pole mount, wall mount (Included)
• Weatherproofing: IPX6

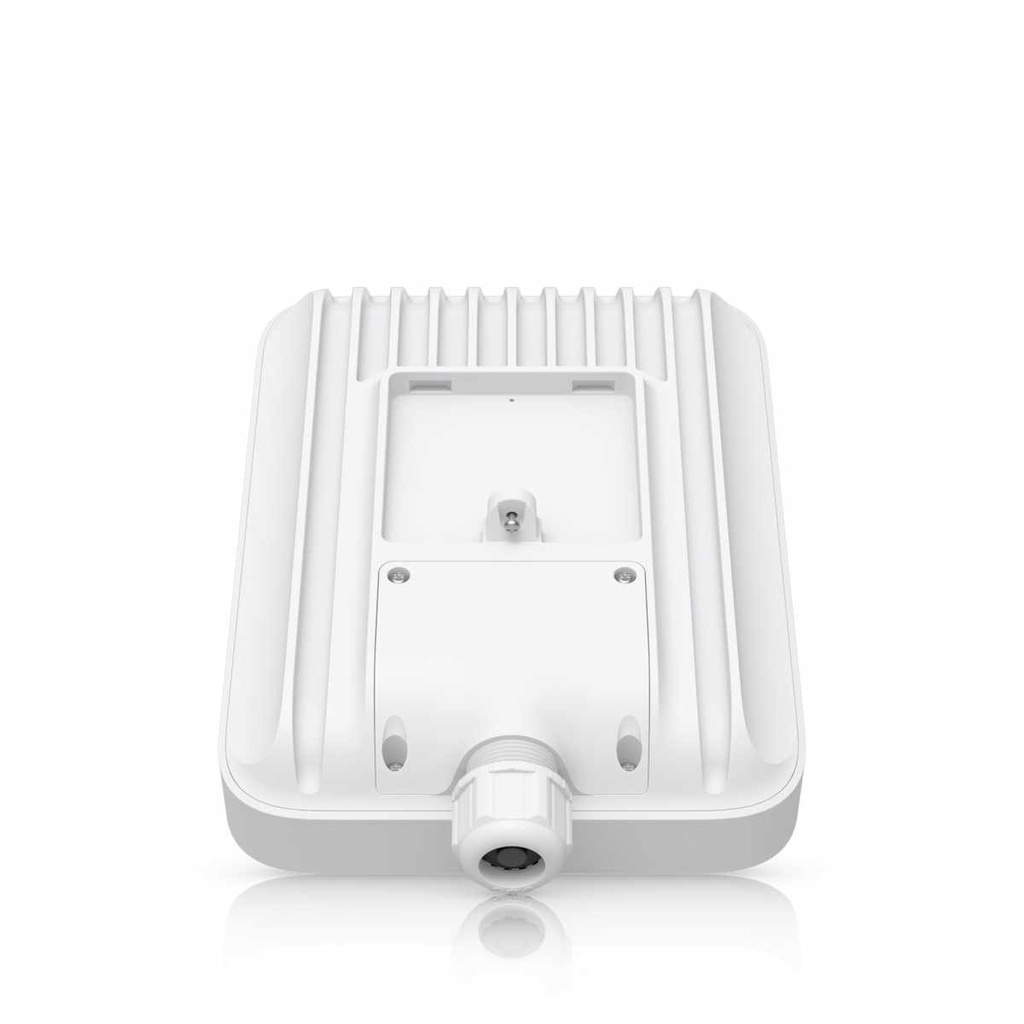

  IP67 (With cable-gland door kit)

Mechanical

• Weight: Device: 1.2 kg (2.6 lb)
  Mount: 130 g (4.6 oz)
• Enclosure Material: Aluminum-alloy, UV-stabilized polycarbonate
• Mount Material: UV-stabilized polycarbonate
• Pole Mount Diameter: 1–2.5" (25–63.5 mm) on pipe outer diameter
• Wind Loading: 91N at 200 km/h (20.45 lbf at 125 mph)

Hardware

• Management: Ethernet
• 5G NR
• Category: 5G NR
• Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
• Max. TX Power: HPUE power class 2: 26 dBm
• 4G LTE
• Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
• Max. TX Power: HPUE power class 2: 25 dBm
• 3G UMTS
• Frequency Bands: B1, B2, B4, B5, B8, B19
• Peak Data Speed
• 5G NSA: Downlink 3.4 Gbps
  Uplink 560 Mbps (Speed depends on network coverage and performance at the device location.)
• 5G SA: Downlink 1.8 Gbps
  Uplink 650 Mbps
• 4G LTE: Downlink 1.6 Gbps
  Uplink 210 Mbps
• Antennas
• Type: (6) Embedded cellular antennas, including
  (2) high-gain for downlink: peak 9 dBi, 85°x85°
• Max. Power Consumption: 14.5W
• Power Method: PoE
• Buttons: (1) Factory reset
• LEDs: Yes
• Ambient Operating Temperature: -40 to 65 °C (-40 to 149 °F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile
