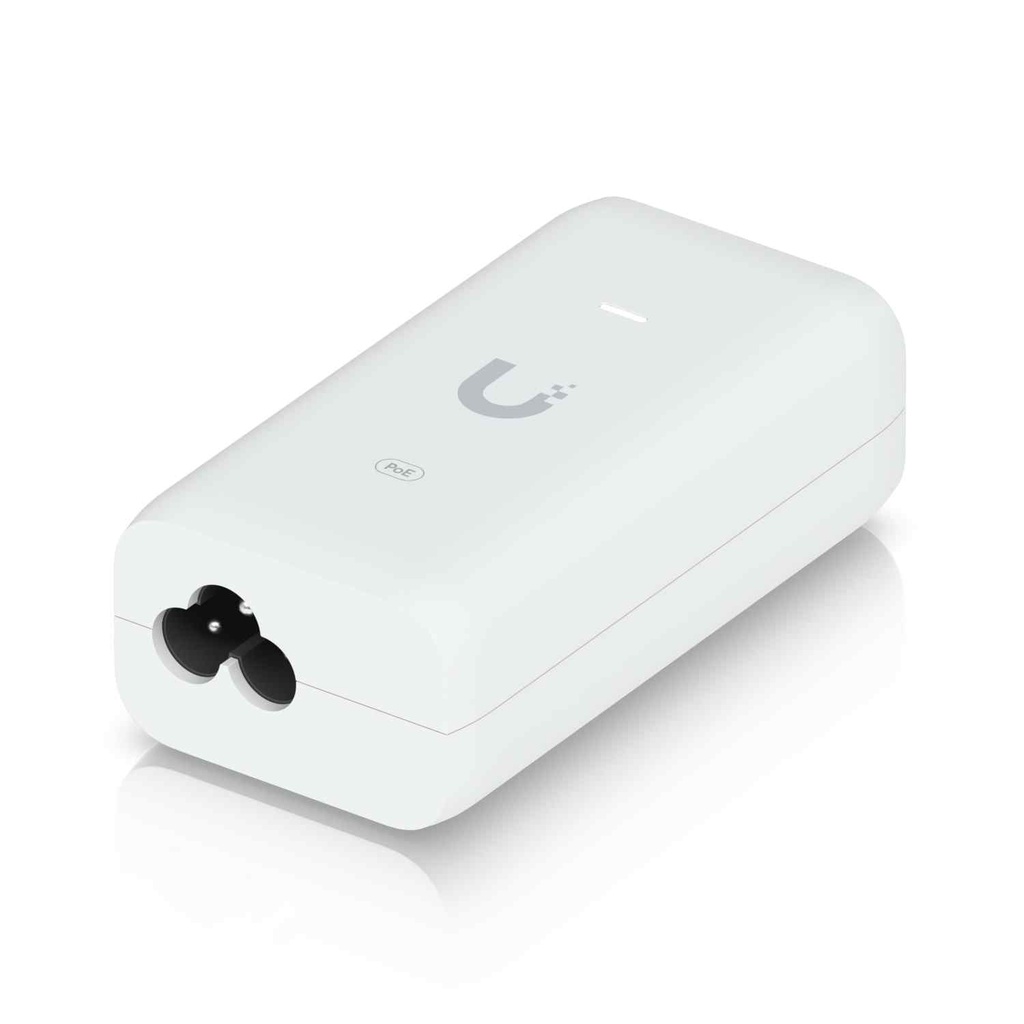

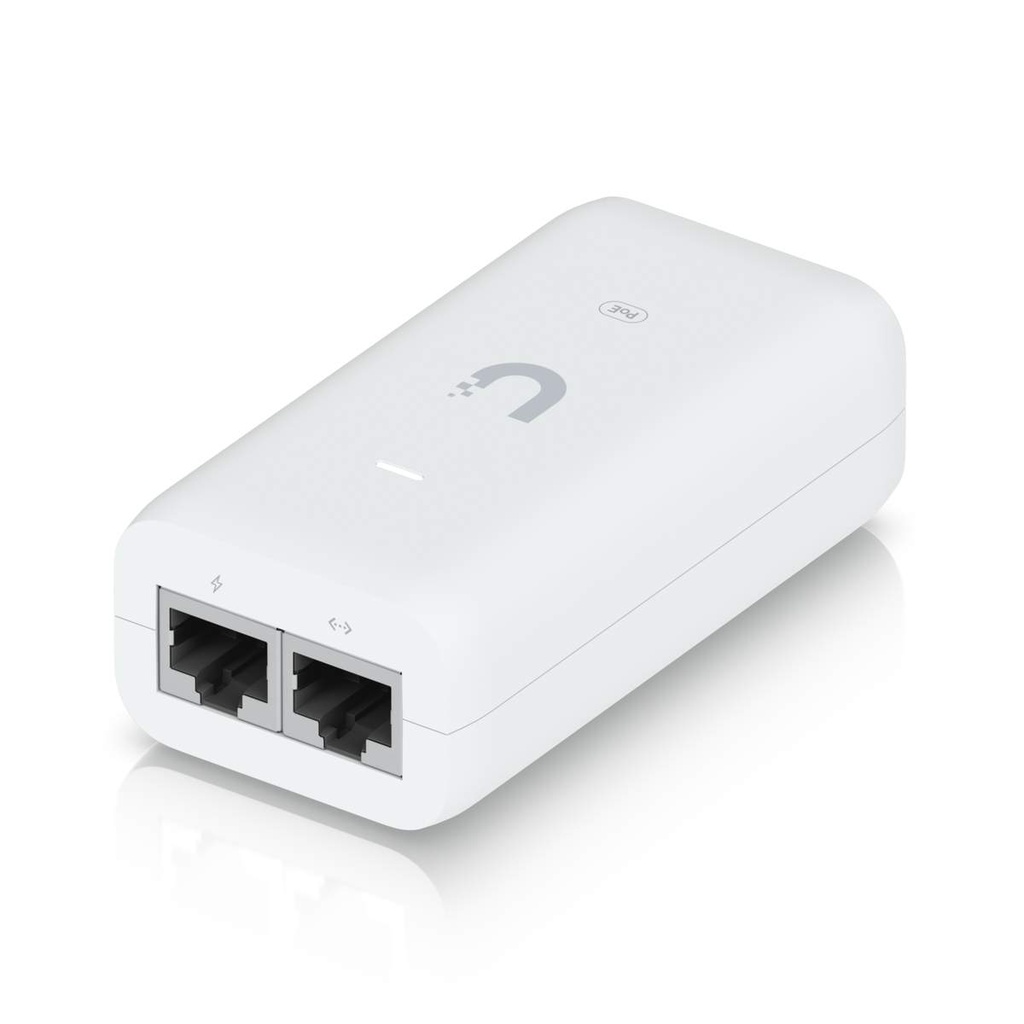

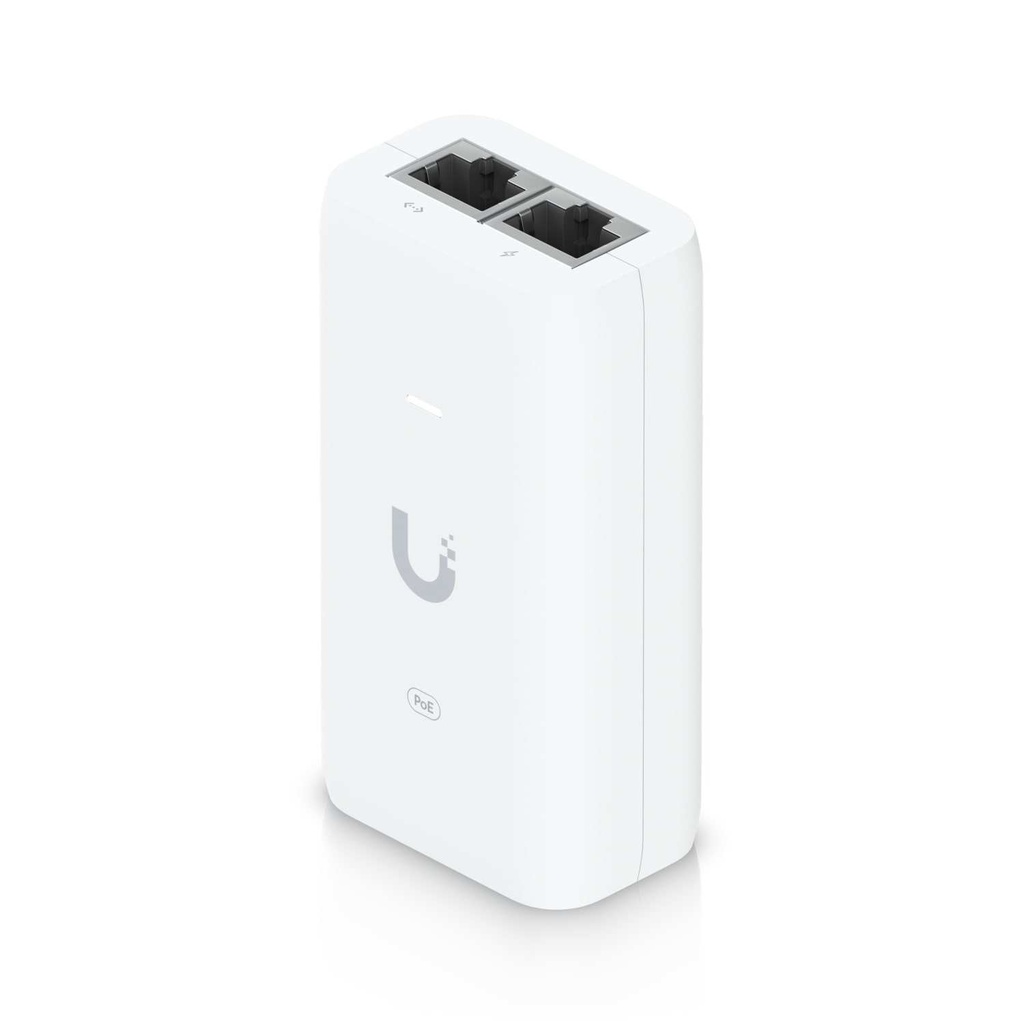

Ubiquiti PoE 802.11AF Adapter, Up to 15W of PoE Output, RJ45 Data Input, AC Cable With Earth Ground, Compatible injector for NHU-U6+

Ubiquiti PoE Adapter

SKU: U-POE

Description: An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Features:

• Delivers up to 15W of PoE
• Surge, peak pulse, and overcurrent protection
• Contains RJ45 data input, AC cable with earth ground, and PoE output
• LED indicator for status monitoring
• Dimension: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
• Output voltage: 48V DC @ 0.32A
• Rated voltage: 100—240V AC @ 50/60Hz

Category: Network - UniFi / POE & 31

Overview

• Dimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
• Weight: 100 g (3.5 oz)
• Power Cable: Included
• Output Voltage: 48V DC @ 0.32A
• Rated Voltage: 100–240V AC at 50/60Hz
• Gigabit LAN Port: Yes
• 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)

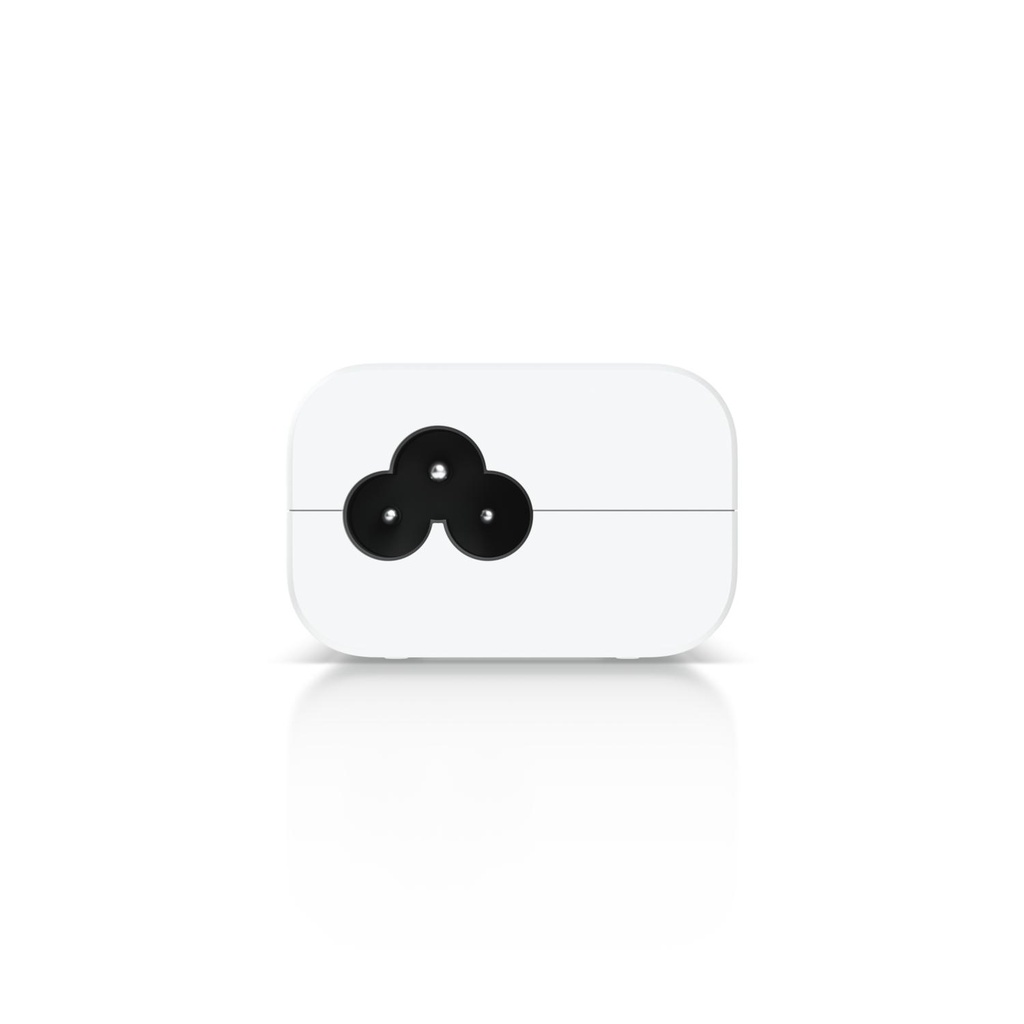

• AC Connector: IEC-320 C6
• Clamping Protection: 11V Data, 60V Power

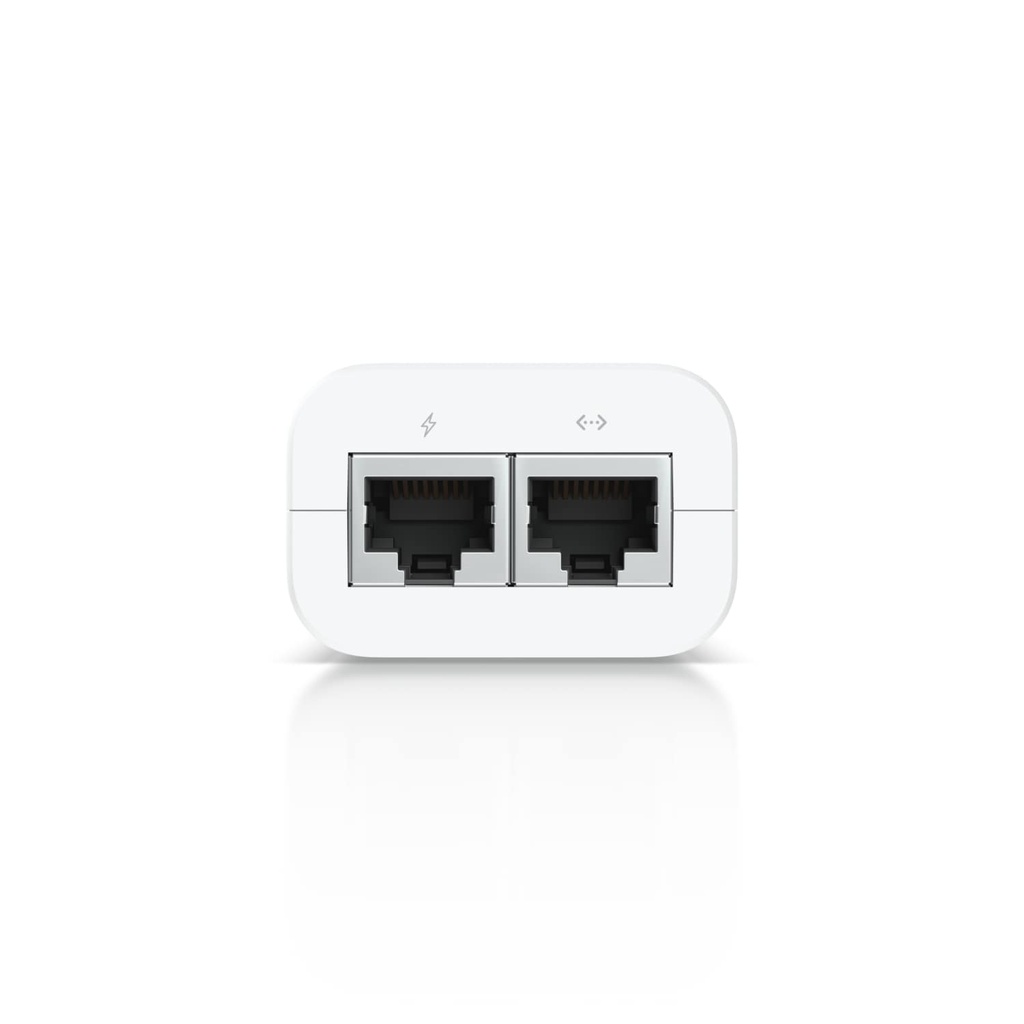

• Data In / PoE: RJ45 Shielded Socket
• Input Current: 500mA Max.
• Inrush Current: <100A peak at 25°C
• Efficiency: 84.25+%
• Switching Frequency: 65 kHz
• Output Ripple: 200mV pp
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Response Time: <1 ns
• Shunt Capacitance: <5 pF data
• Surge Protection: Difference and common mode
• Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 10 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, UL, CCC
