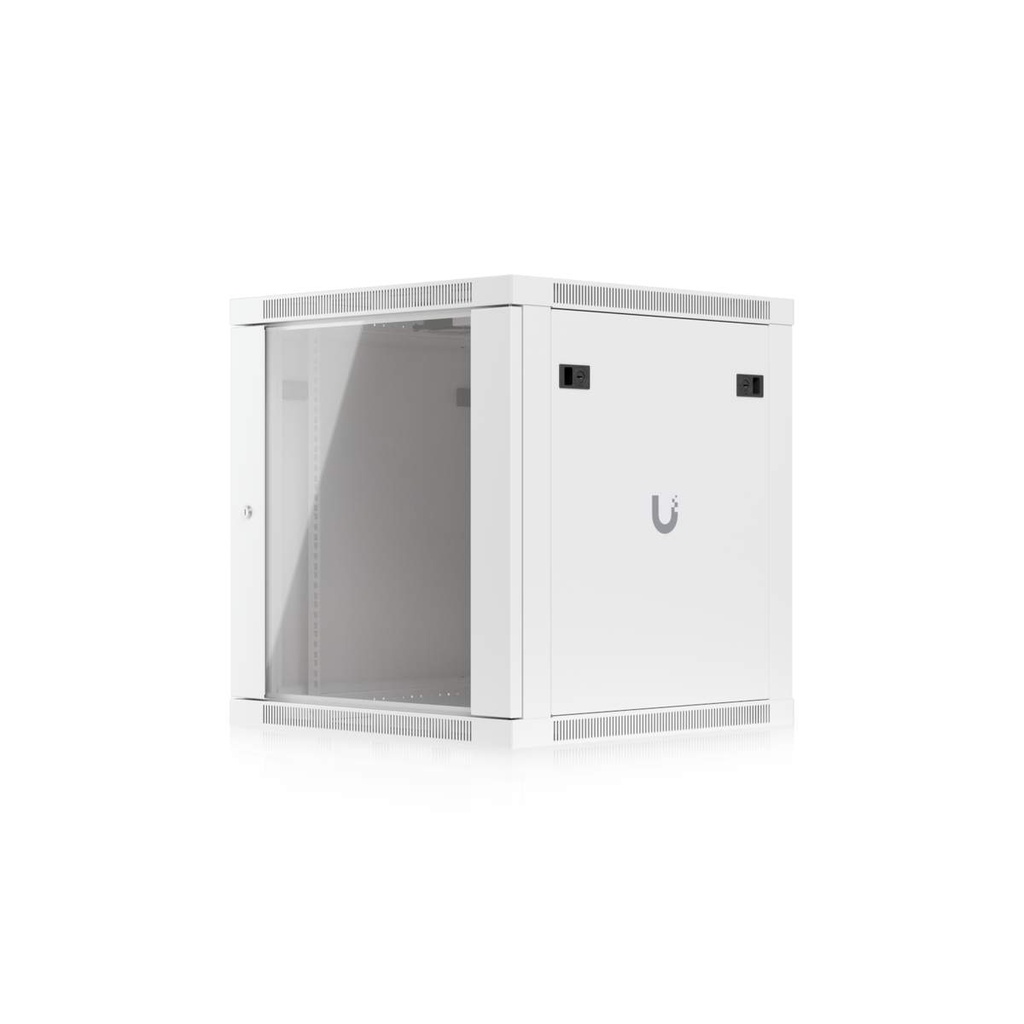

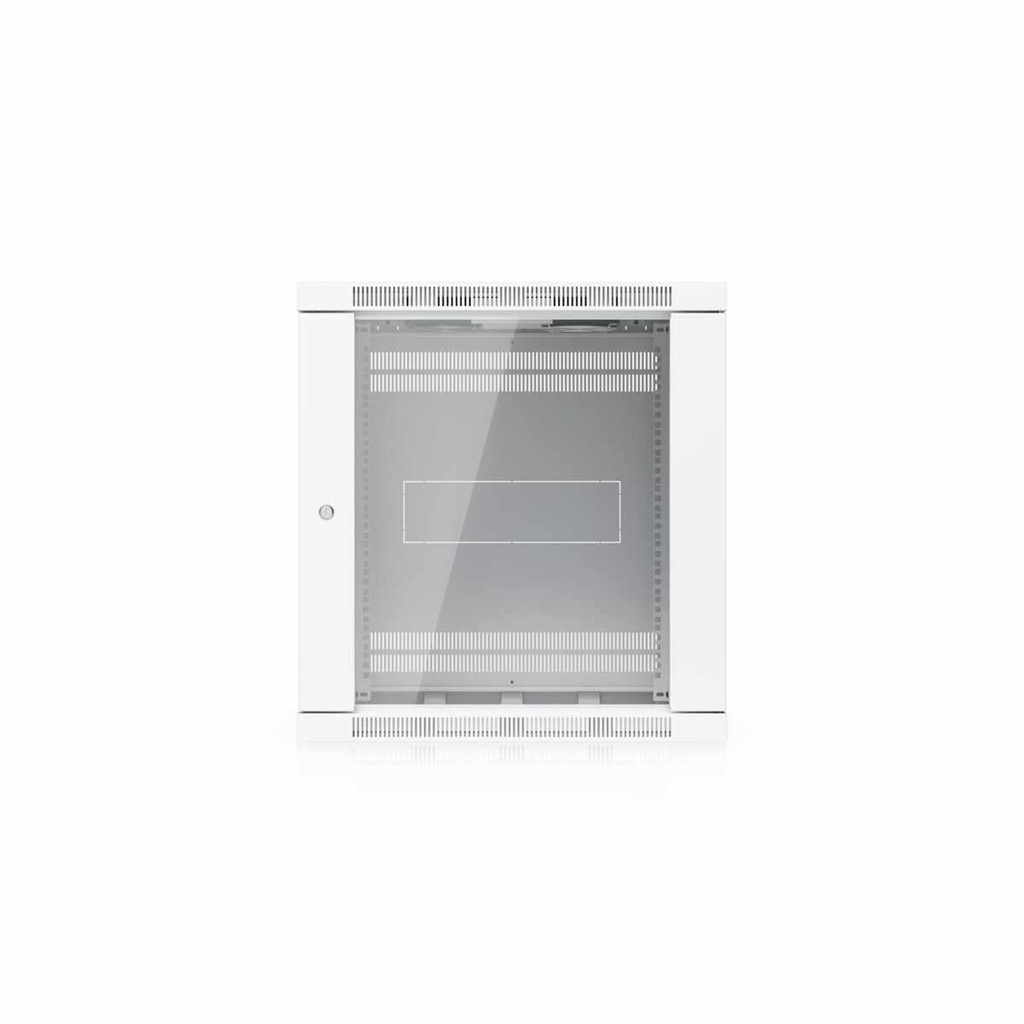

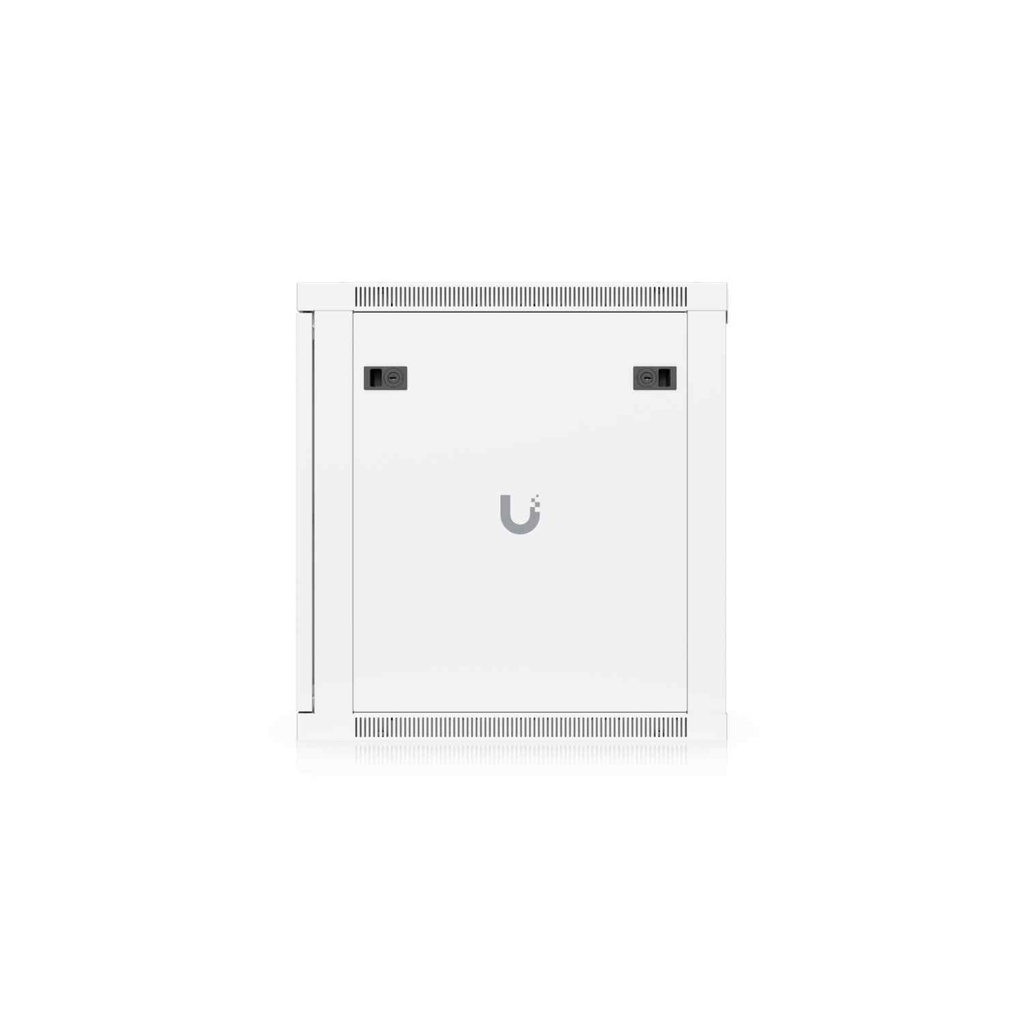

Ubiquiti 12U Rack Cabinet,Fully Assembled Wall-Mount Rack,** No Fan Included** Removable Panels,Space-Efficient Small-Scale Deployment

Ubiquiti 12U Rack Cabinet ** No Fan Included**
SKU: UACC-Rack-12U-Wall-600-G ** No Fan Included**

Description:
Fully assembled wall-mount rack with removable panels, engineered for easy equipment access and space-efficient small-scale deployments.

Compatibility:
UACC-Rack-Shelf-CLV, UACC-Rack-PM-Kit

Category: Network - UniFi / Data Rack Cabinets & 31

Overview

• Dimensions: Packaging: 740 x 730 x 735 mm (29.1 x 28.7 x 28.9")
  Rack: 598 x 600 x 639 mm (23.5 x 23.6 x 25.2")
• Weight: Packaging: 33.6 kg (74.1 lb)
  Rack: 28.2 kg (62.2 lb)
• Enclosure Material: SPCC steel
  Door/side panels: 1.2 mm (0.05")
  Main body: 1.2 mm (0.05")
  Posts: 2 mm (0.08")
• Color: White
• Treatment: Powder coating
• Rack Features
• U Height: 12U
• Rack Type: 4 post, enclosed cabinet
• Mounting Hole Type: Square
• Adjustable Mounting Depth: Default 448 mm (17.6")
  Max. 508 mm (20")
  Adjustable pitch 20 mm (0.8")
• Max. Weight Capacity: 80 kg (176 lb)

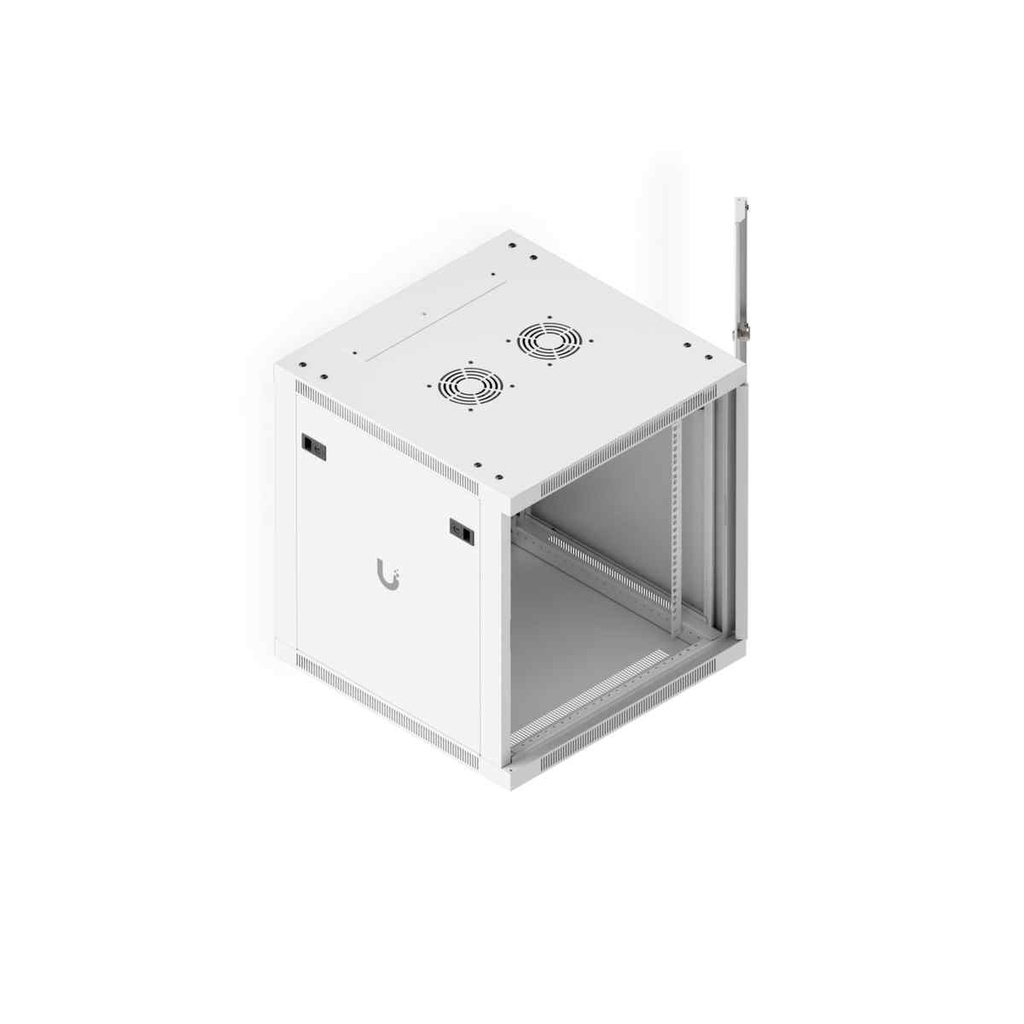

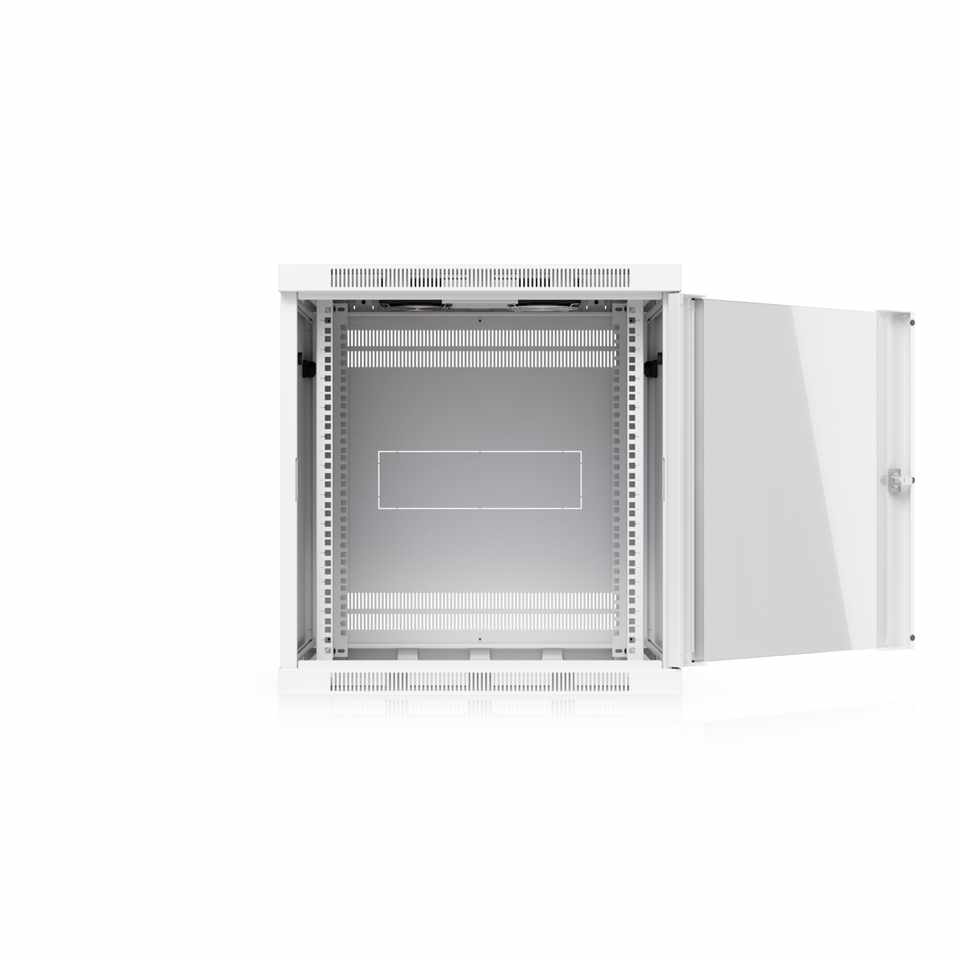

• Front Door: Tempered glass
  Default left-hand outswing, reversible
• Side Panels: (2) Solid, removable and lockable
• Mounting: Wall mount

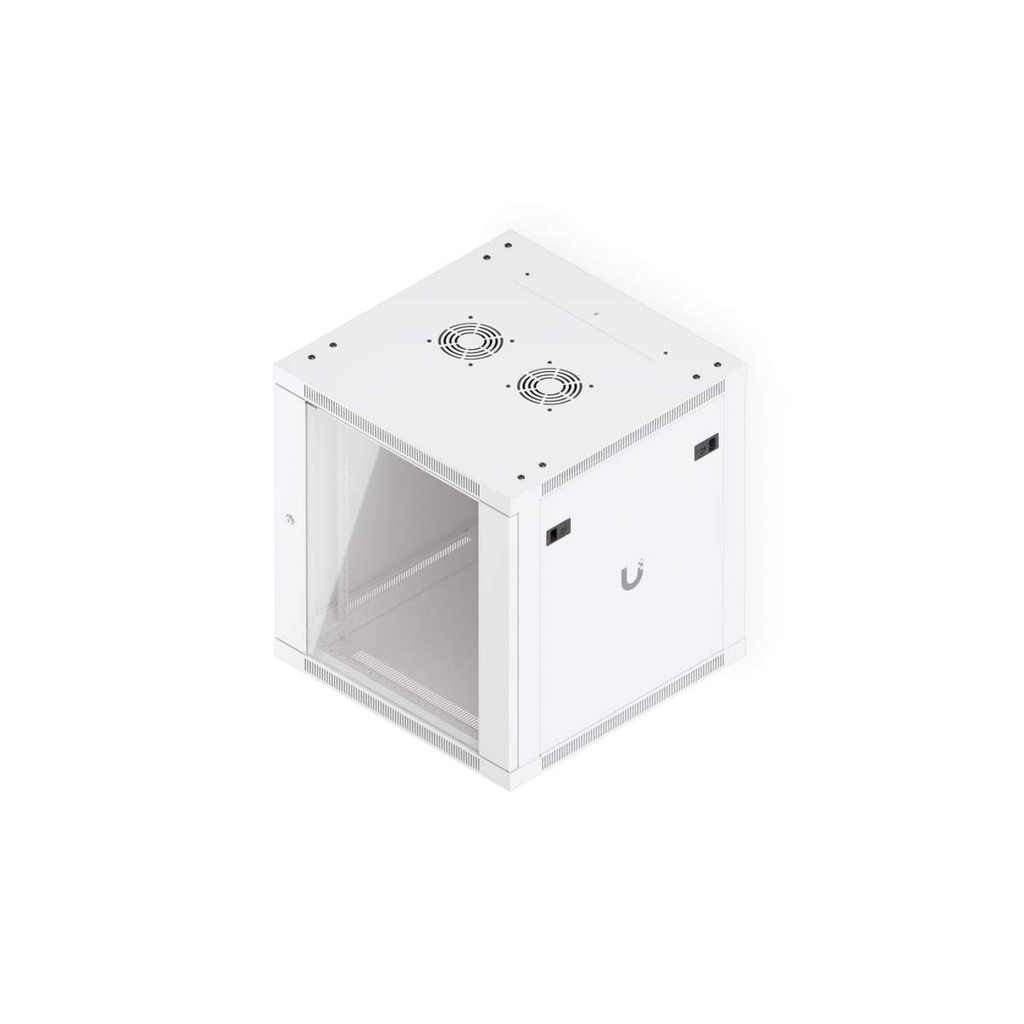

• Fan Module: (2) Pre-installed 120 x 120 x 38 mm AC fan units (Input voltage: Region-specific; 110–120V AC for US models, 220–240V AC for EU models)
• Acoustic Noise: ≤ 50 dB(A) sound pressure level (Measured at 1 m in front of the enclosure, with cabinet empty (no installed equipment), under nominal fan operating conditions per ISO 7779)
• Grounding Lugs: Yes

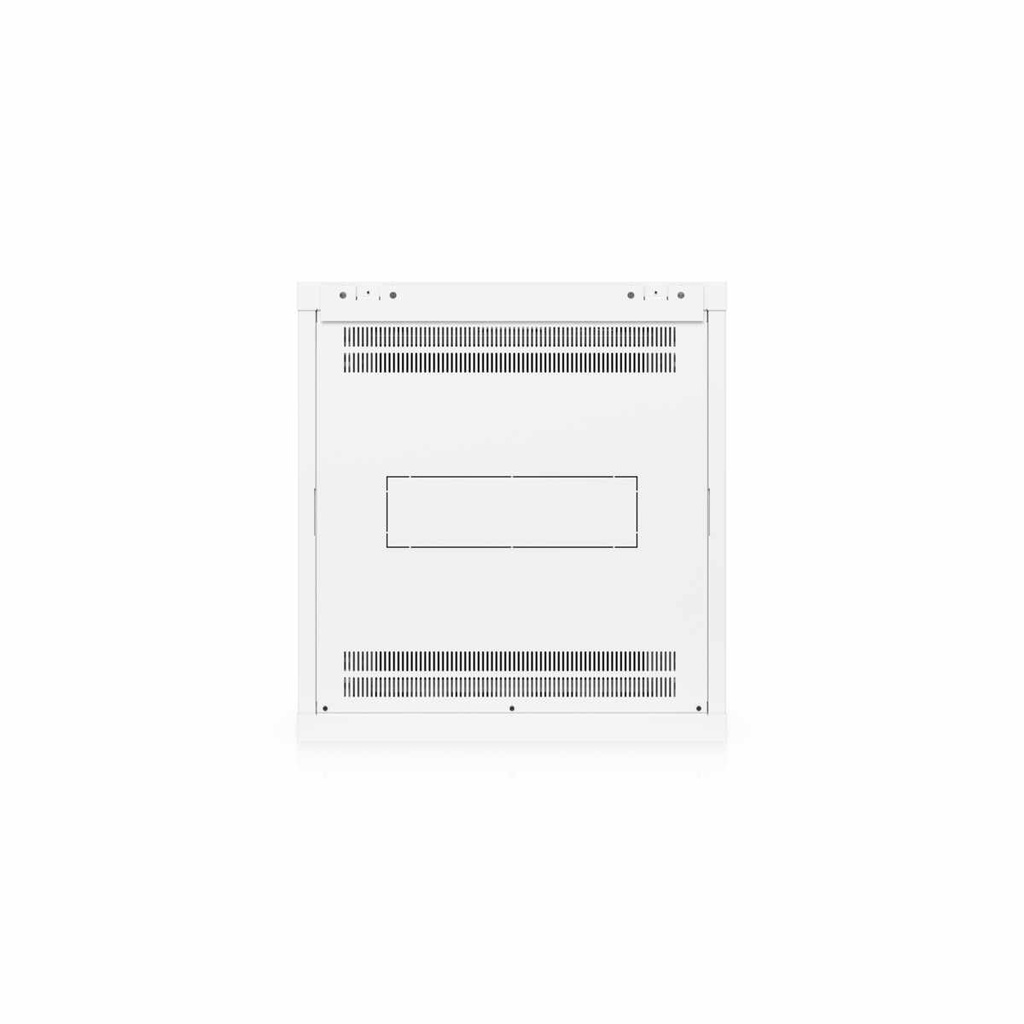

• Cable Entry Opening: (1) Rear wall: 350 x 100 mm (13.8 x 3.9")
  (1) Top: 336.5 x 52.5 mm (13.2 x 2.1")
  (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1")
• Security: (1) Front door lock
  (4) Side panel locks
  (2) Keys
• Standard: CE; EIA/ECA-310-E; RoHS
• NDAA Compliant: Yes
