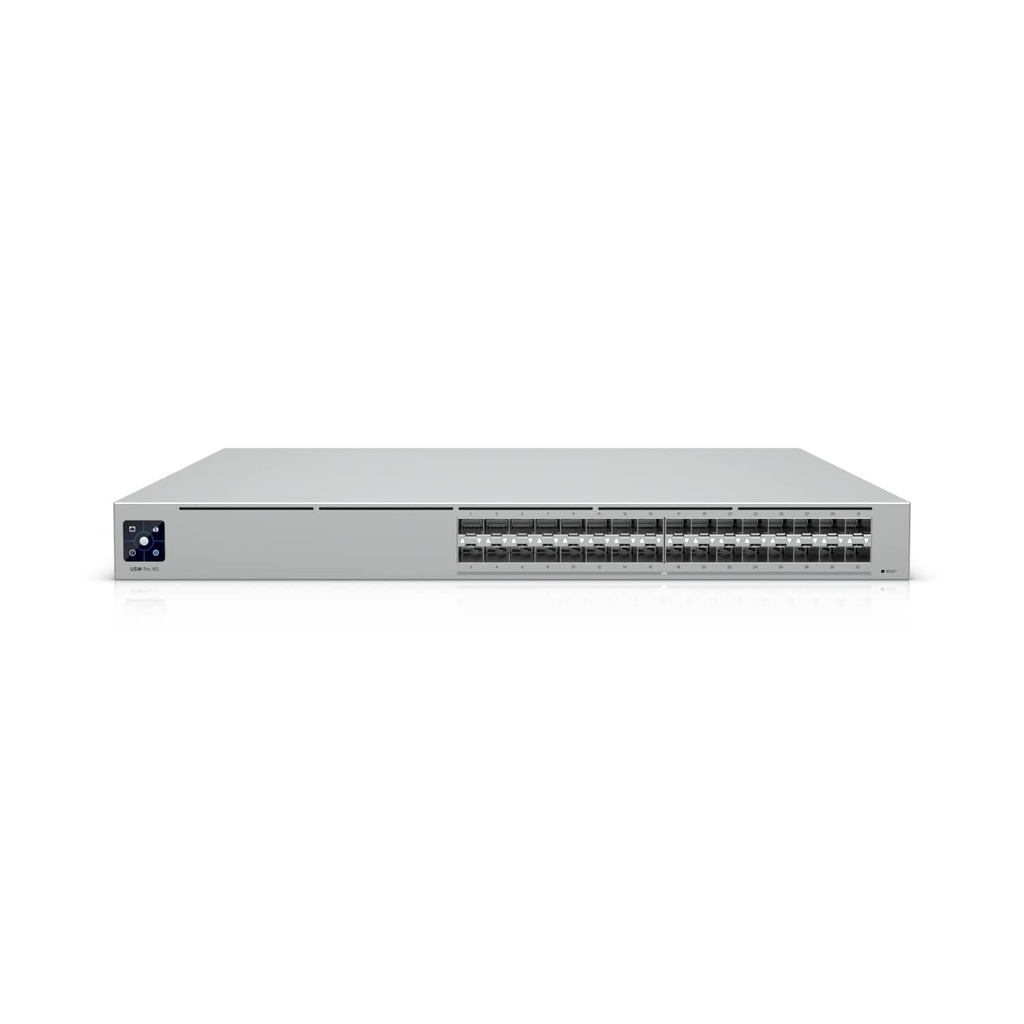

Ubiquiti Pro XG Aggregation, 32x High-capacity 25G/10G/1G SFP28 Ports with Etherlighting - Backwards compatible with SFP and SFP+ Modules and DACs

Ubiquiti Pro XG Aggregation

SKU: USW-Pro-XG-Aggregation

Description:
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

Category: Network - UniFi / Switching

Overview

• Dimensions: 442.4 x 43.7 x 480 mm
  (17.4 x 1.7 x 18.9")
• Port Layout
• 25G SFP28: 32
  (25G/10G/1G)
• Redundancy: DC Power Backup (With UniFi RPS)
• Layer 3: Yes
• Form Factor: Rack Mount (1U)
• Etherlighting™: Yes

Performance

• Switching Capacity: 1.6 Tbps
• Total Non-Blocking Throughput: 800 Gbps
• Forwarding Rate: 1.2 Bpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 512
• Packet Buffer Size: 8 MB
• Access Lists
• IPv4: 256
• MAC: 256

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 200W
• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
  (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 200W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 682 BTU/hr
• Weight: Without mounting bracket: 7.1 kg (15.7 lbs)
  With mounting bracket:7.2 kg (15.9 lbs)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks
  Posts depths ranging from 600 to 1,066 mm (23.6-42”)
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 12kV, contact: ± 8kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• SFP28: Yes
• LEDs
• RPS: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 05977-25-08356
