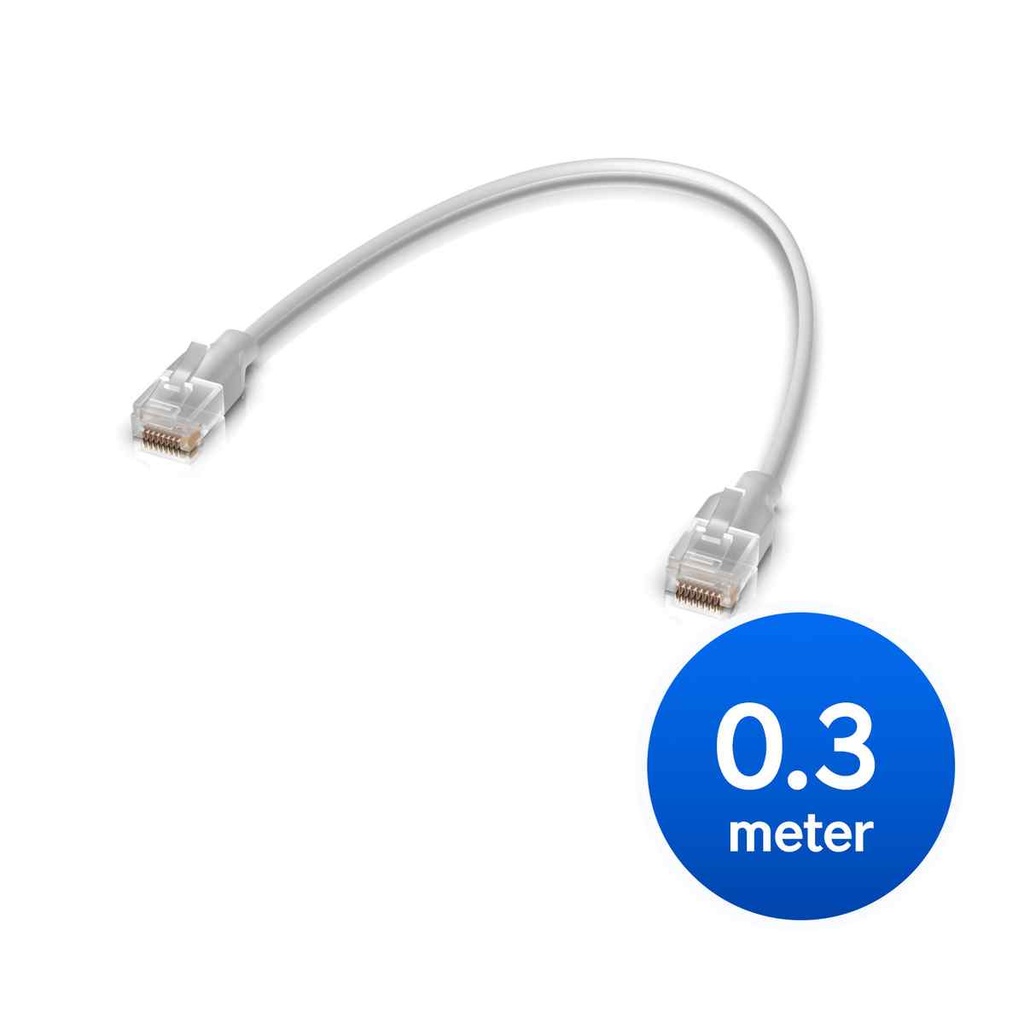

Ubiquiti UniFi Etherlighting Patch Cable,0.3M Nano-thin Patch Cable With 2.5 GbE Support Designed sShow Etherlighting Effects

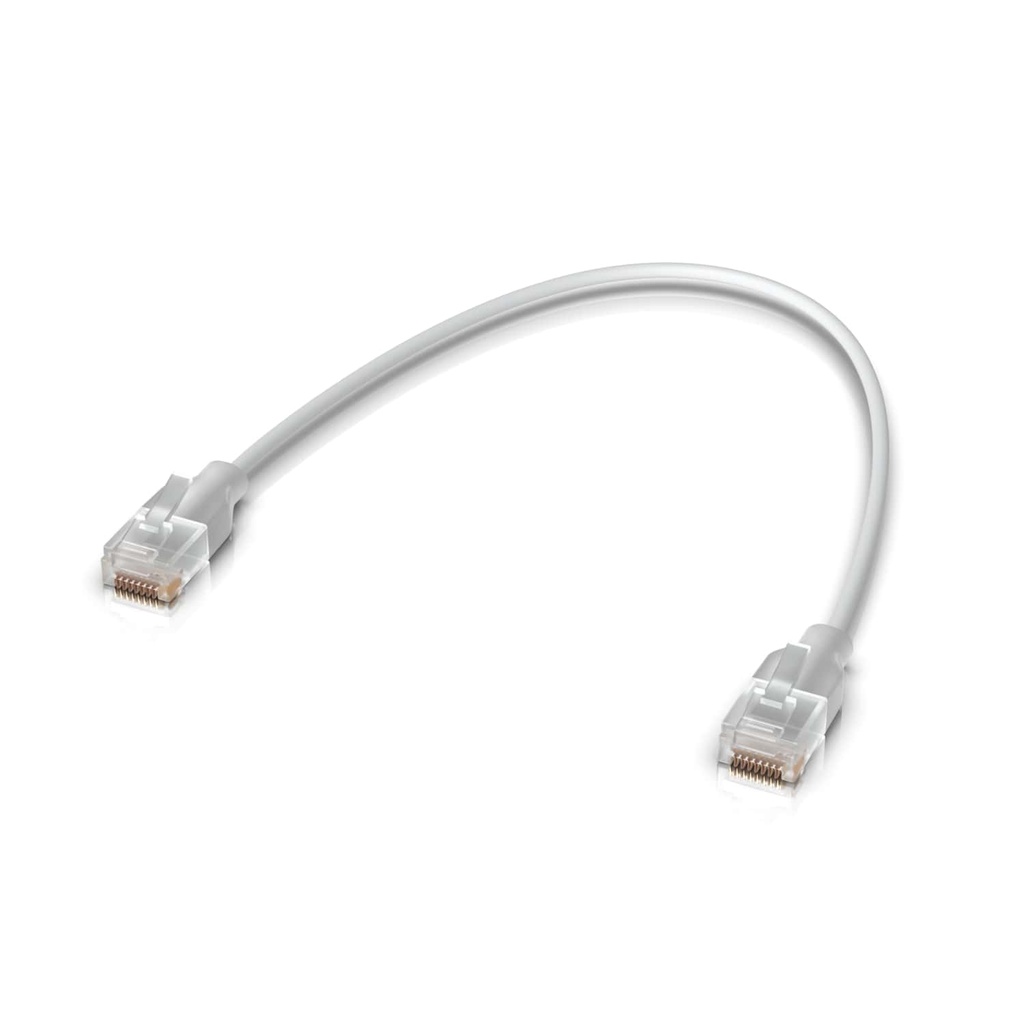

Ubiquiti UniFi Etherlighting Patch Cable

SKU: UACC-Cable-Patch-EL-0.3M-W

Description: Nano-thin patch cable with 2.5 GbE support designed to show Etherlighting™ effects.

Features:

• Translucent booted RJ45 for optimal Etherlighting™ brightness
• 2.5 mm outer diameter
• 0.3M

Category: Network - UniFi / Cables & Modules

Overview

• Available Lengths: End-to-end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m
  (0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft)
• Available Colors: White
• Pack Options: Single Unit
  24-pack (0.15 m)
• Supported Data Rate: 10G
• Supported PoE Type: Up to PoE+++
• Connector: (2) Translucent booted RJ45
• Operating Environment: Indoor
• Cable
• Jacket Diameter: 0.15-8 m: 2.5 mm (0.1")
  12-15 m: 2.9 mm (0.11")
• Jacket Material: Thermoplastic elastomer (TPE)
• Shielding Type: UTP
• Conductor Type: Stranded copper
• Conductor Wire Gage: 1–8 m (3–26 ft): 34 AWG
  12–15 m (39–49 ft): 32 AWG
• Bend Radius: 1-8 m: Min. 21 mm (0.83 '')
  12-15 m: Min. 24 mm (0.94 '')
• Flame Rating: VW-1 (UL1581)
• Standards: TIA/EIA-568-B.2
  ISO/IEC 11801
• Installation Temperature: -20 to 60°C (–4 to 140°F)
• Ambient Storage Temperature: -20 to 75°C (–4 to 167°F)
• Ambient Operating Temperature: -20 to 60°C (–4 to 140°F)
