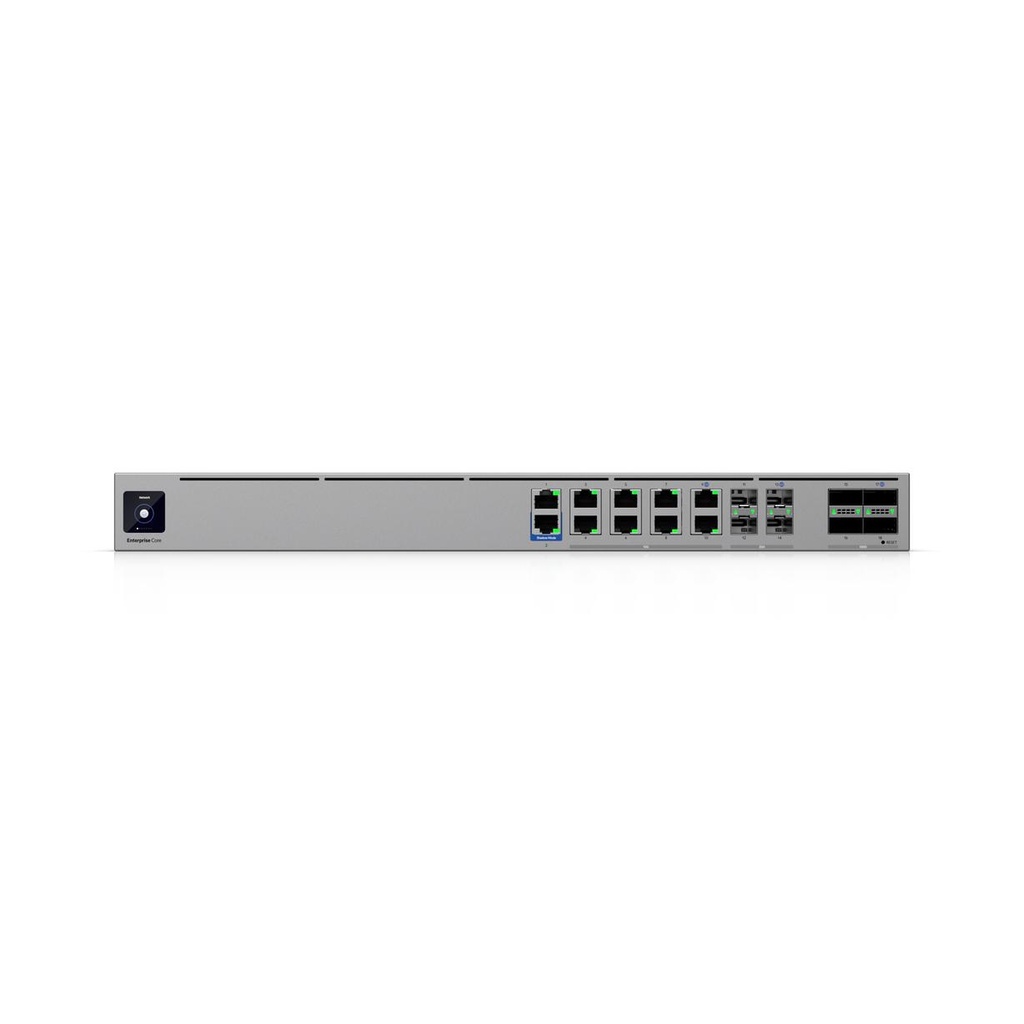

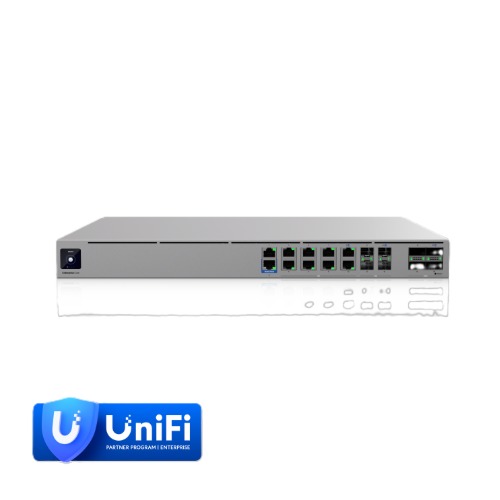

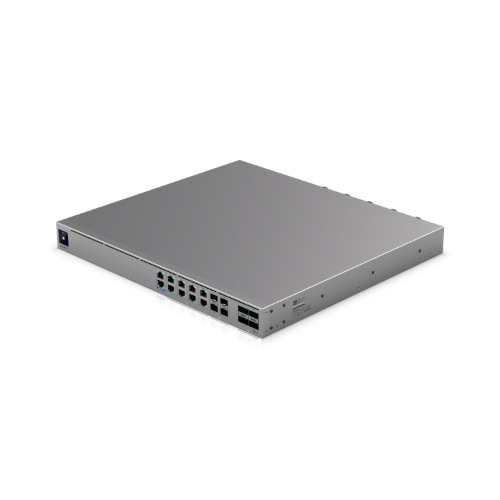

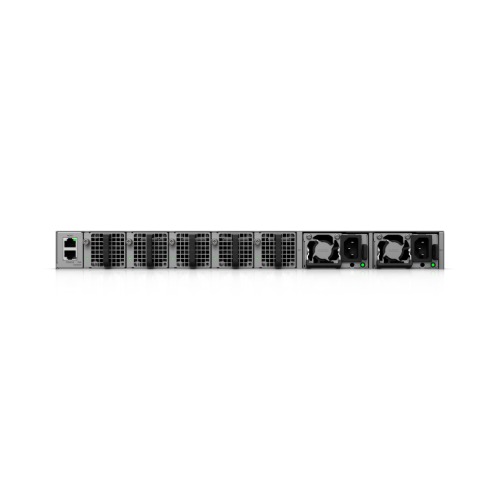

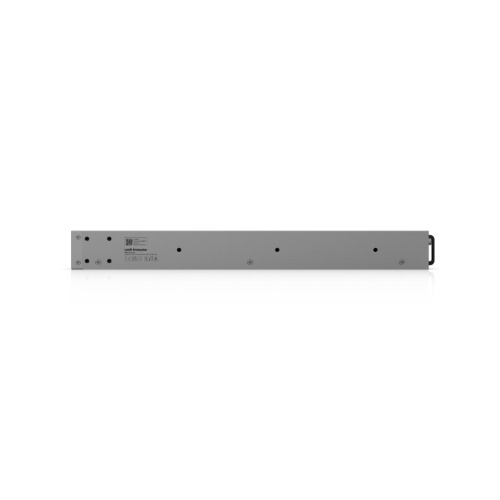

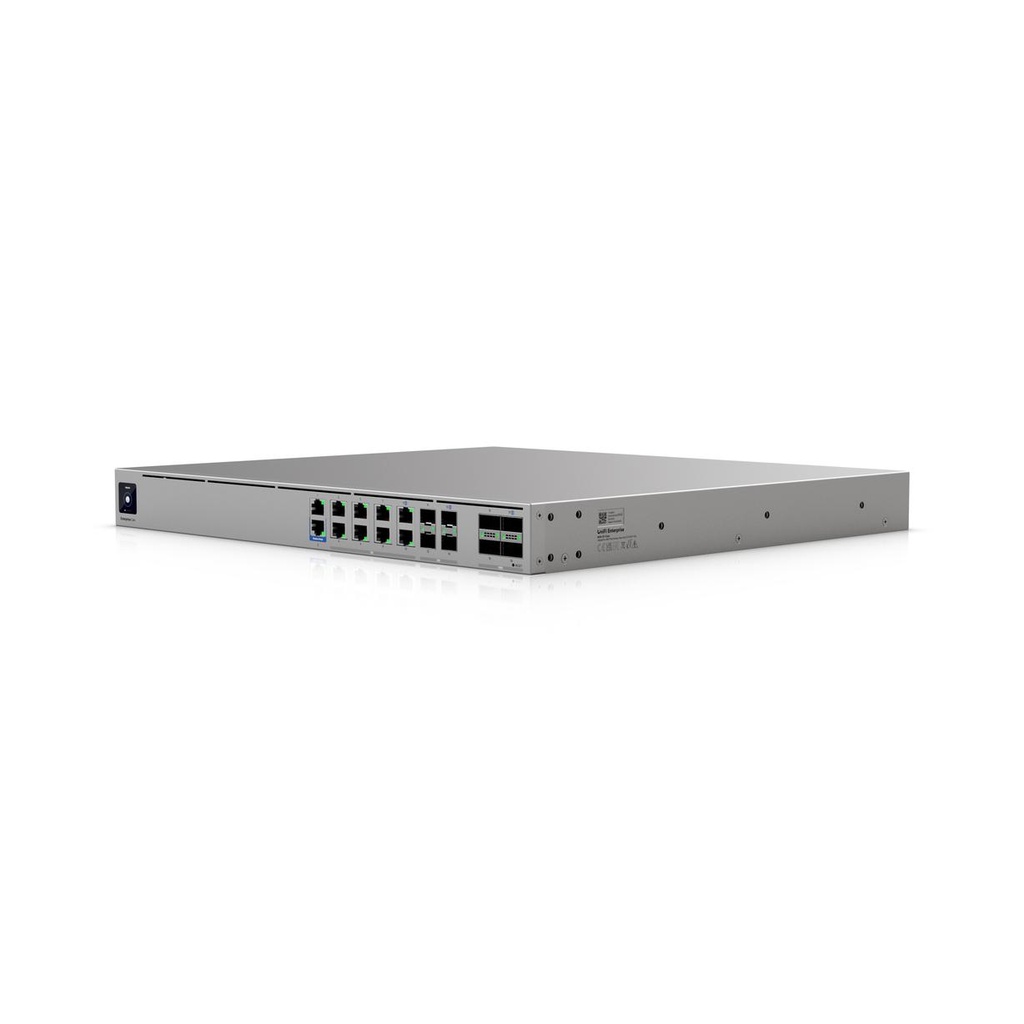

Ubiquiti Enterprise Firewall Core,Enterprise-Class100 Gbps Cloud Gateway,79 Gbps IDS/IPS,22,500+ Client Cap, 5,000+ IPsec Tunnels.*Require Deal Reg*

Ubiquiti Enterprise Firewall Core *Require Deal Reg*

SKU: EF-Core

Description:
Enterprise-class 100 Gbps Cloud Gateway delivering 79 Gbps IDS/IPS, 22,500+ client capacity, and 5,000+ concurrent IPsec tunnels.

*Require Enterprise Deal Registration, please register the deal Here before place the order.*

Category: Network - UniFi / Campus / Enterprise

Overview

• Dimensions: 442.4 x 43.7 x 400 mm
  (17.4 x 1.7 x 15.8")
• UniFi Application Suite
• Network: Yes
• Managed UniFi Devices: 2,250+
• Simultaneous Users Connected: 22,500+ (Performance may be degraded with advanced gateway features (e.g., Traffic Identification))
• Max. WAN Port Count: 8
• Default WAN Ports: (1) 100G QSFP28
  (1) 25G SFP28
  (1) 10 GbE RJ45
• Port Layout
• 1 GbE RJ45: 2
  (1G/100M/10M)
• 10 GbE RJ45: 8
  (10G/5G/2.5G/1G/100M)
• 25G SFP28: 4
  (25G/10G/1G)
• 100G QSFP28: 4
  (100G/40G)
• MGMT: 1
  (1G/100M/10M)
• Console: 1
• IDS/IPS Throughput: 79 Gbps
• Capacity
• SSL/TLS Inspection Concurrent Sessions: 10,000
• Concurrent Sessions: 10 Million
• New Sessions / Second: 120,000
• Form Factor: Rack mount (1U)
• Redundancy: Shadow Mode (VRRP) Gateway Failover
  (2) Hot-Swappable PSUs

Security

• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Yes
• SSL Inspection & URL Filtering: Yes
• DPI & Traffic Identification: Yes
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
• Content Filtering: Yes
• Intrusion Prevention (IPS/IDS): Yes
• Ad Blocking: Yes
• IDS/IPS Signatures: 95,000+ with CyberSecure Enterprise

VPN & SD-WAN

• License-Free SD-WAN: Yes
• Site-to-Site VPN
• Site Magic: Yes
• IPsec: Yes
• OpenVPN: Yes
• VPN Server
• Identity Endpoint One-Click VPN: Yes
• Teleport Zero-Configuration VPN: Yes
• WireGuard: Yes
• OpenVPN: Yes
• L2TP: Yes
• VPN Client
• OpenVPN: Yes
• WireGuard: Yes

Networking

• Multi-WAN Load Balancing: Yes
• Shadow Mode (VRRP) High Availability: Yes
• LACP Port Aggregation: Yes
• Dynamic Routing
• OSPF: Yes
• BGP: Yes
• Advanced QoS: Yes
• Multicast DNS (mDNS): Yes
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
• Integrated RADIUS Server: Yes
• RADIUS over TLS (RadSec): Yes
• Additional Internet Failover with UniFi LTE Backup: Yes
• Internet Quality and Outage Reporting: Yes
• MAC Address Table Size: 130,000
• Policy-based WAN and VPN Routing: Yes
• Customizable DHCP Server: Yes
• IPv6 ISP Support: Yes
• IGMP Proxy: Yes
• All Traffic Flows: Yes

Hardware

• Max. Power Consumption: 171W
• Power Method: Universal AC input, 100–240V AC, 7.5A Max., 50/60 Hz
• Power Supply: (2) Hot-Swappable AC/DC 550W PSU
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 585 BTU/hr
• Processor: 24-core ARM® v9 at 2.5 GHz
• System Memory: 32 GB
• On-board Storage: Integrated 128 GB SSD
• Weight: 7.85 kg (17.31 lb)
• Enclosure Material: Aluminium CNC, SGCC steel
• LCM Display: 1.3" touchscreen
• Management: Ethernet
  Bluetooth
• LEDs
• Ethernet: Yes
• SFP28: Yes
• QSFP28: Yes
• Swappable Fan: Yes
• CRPS: Yes
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC

Software

• Application Requirements
• Mobile App: UniFi iOS™: Version 10.35.0 and later
  UniFi Android™: Version 10.38.1 and later
