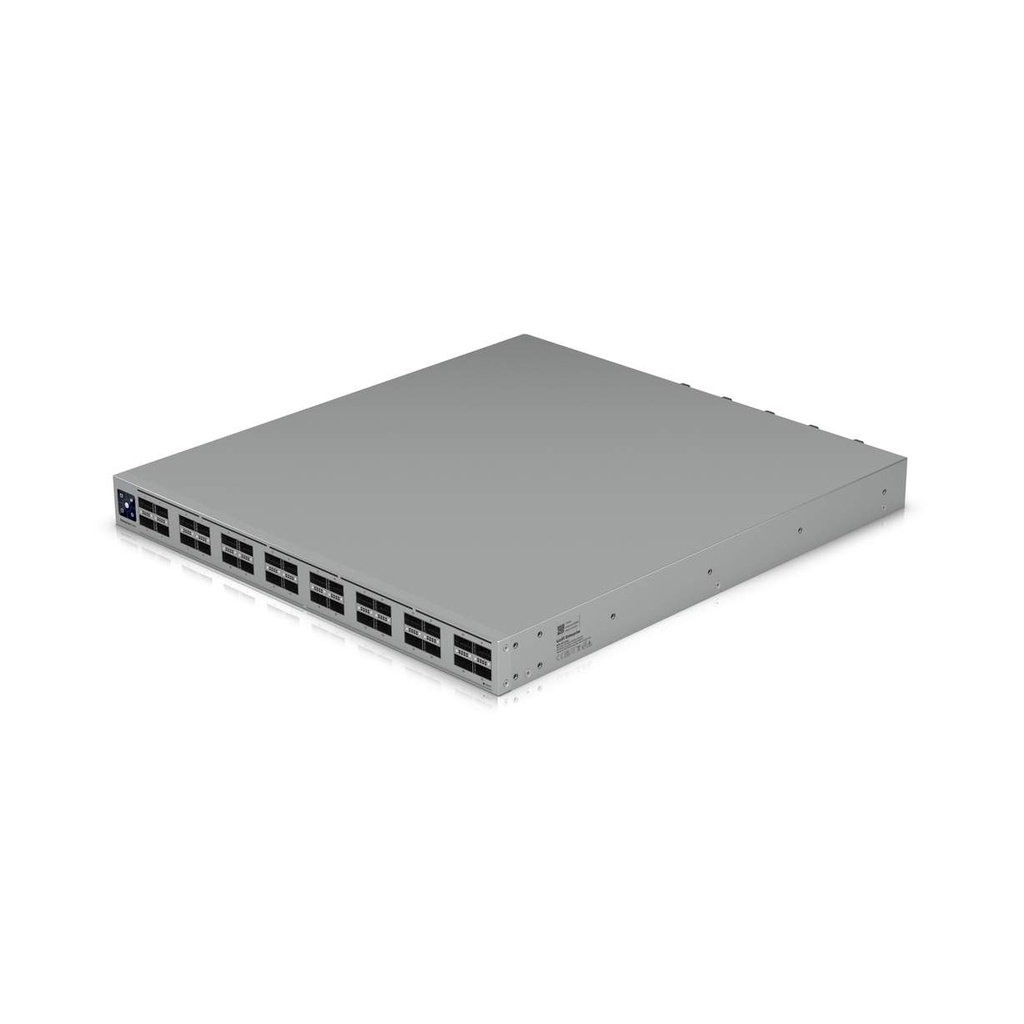

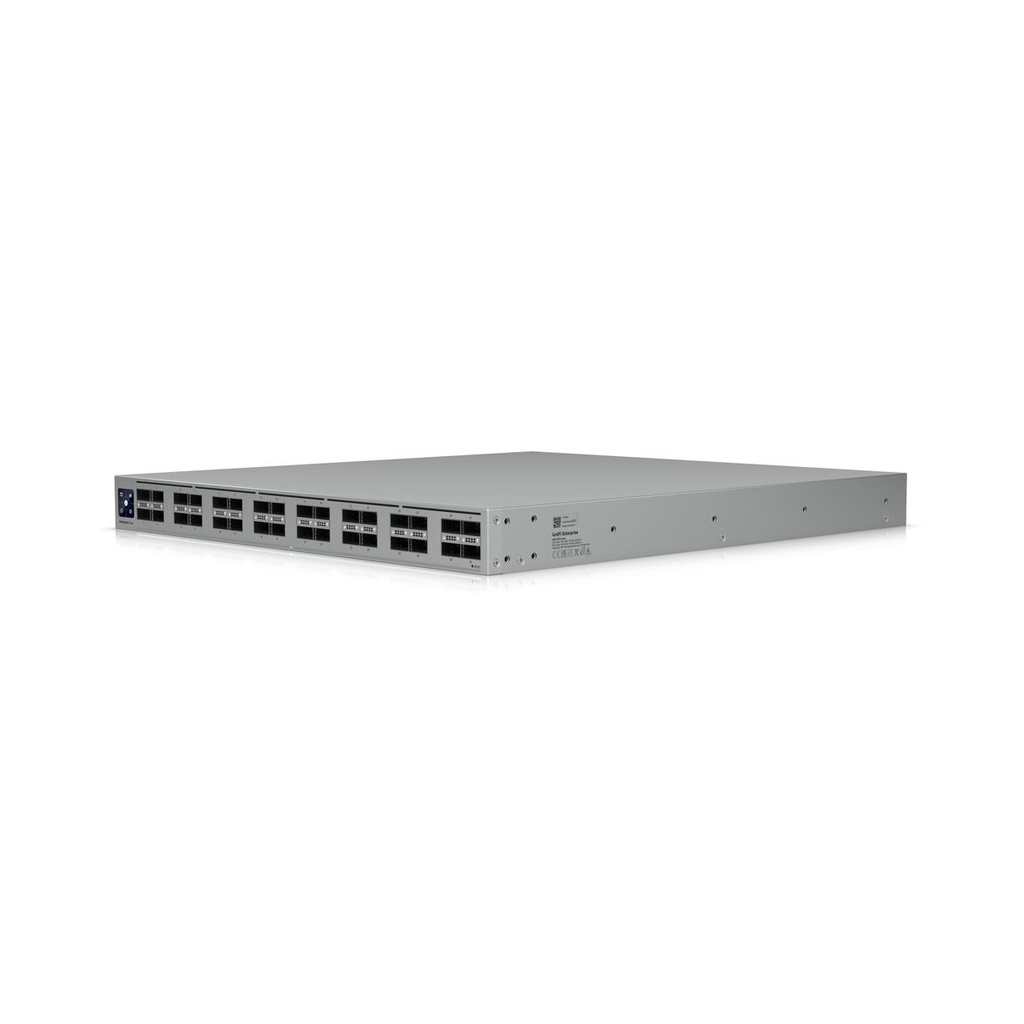

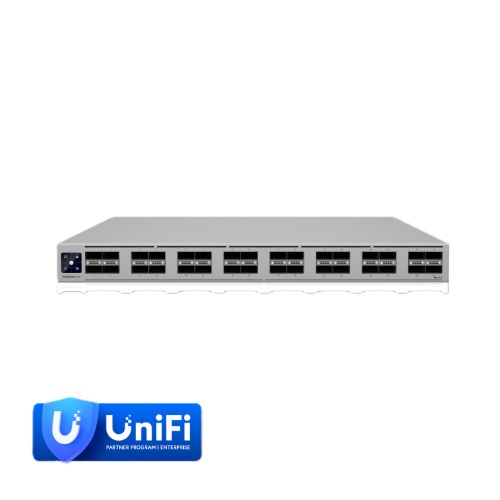

Ubiquiti Enterprise Campus Switch Core, 3.2 Tbps High-Density 100G Layer 3 Etherlighting™ Core Switch, MC-LAG Support *Require Deal Reg*

Ubiquiti Enterprise Campus Switch Core *Require Deal Reg*

SKU: ECS-Core

Description:
3.2 Tbps high-density 100G Layer 3 Etherlighting™ core switch with MC-LAG support for high availability system design.

Enterprise Deal Registration

*Require Enterprise Deal Registration, please register the deal Here before place the order.*

Category: Network - UniFi / Campus / Enterprise

Overview

• Dimensions: 442.4 x 43.7 x 480 mm
  (17.4 x 1.7 x 18.9")
• Port Layout
• 1 GbE RJ45: 1
  (1G/100M/10M) (OOB Management port only)
• 100G QSFP28: 32
  (100G/40G) (Breakout cables are not supported)
• Console: 1
• Redundancy: Multi-Chassis Link Aggregation (MC-LAG)

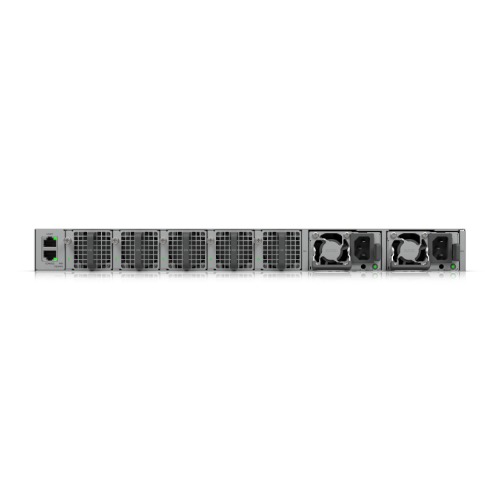

  (2) Hot-Swappable PSUs
  (5) Hot-Swappable Fans
• Layer 3: Yes

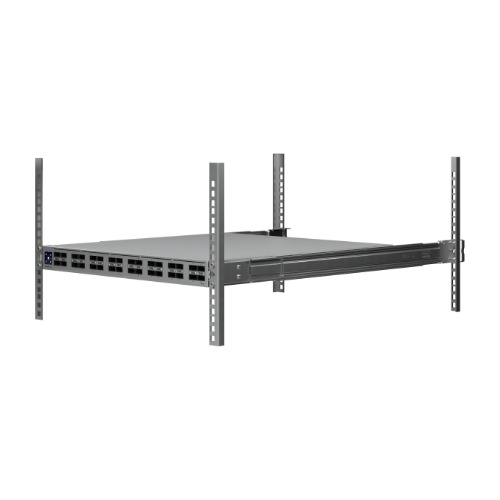

• Form Factor: Rack Mount (1U, Full-Depth) (Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support)
• Etherlighting™: Yes

Performance

• Switching Capacity: 6.4 Tbps
• Total Non-Blocking Throughput: 3.2 Tbps
• Forwarding Rate: 2.8 Bpps
• Supported VLANs: 1,000
• MAC Address Table Size: 128,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 24 MB
• Access Lists
• IPv4: 512
• MAC: 512

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• MC-LAG: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes

Hardware

• Max. Power Consumption: 360W
• Power Method: (2) Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: (2) AC input, Hot-swappable power modules
• Power Supply: (2) Hot-swappable AC/DC 550W power modules
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
  Serial Console
• Heat Dissipation: 1,228 BTU/hr
• Weight: Without mounting brackets: 9.7 kg (21.4 lb)
  With mounting brackets: 9.8 kg (21.6 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks
  Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
• LCM Display: 1.3" touchscreen
• Fan Method: (5) Hot-swappable fan modules
• ESD Protection: Air: ± 12KV; contact: ± 8KV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• QSFP28: Yes
• LEDs
• Ethernet: Yes
• PSU: Yes
• Fan: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC

Software

• Application Requirements
• UniFi Network: Version 10.6.101 and later
