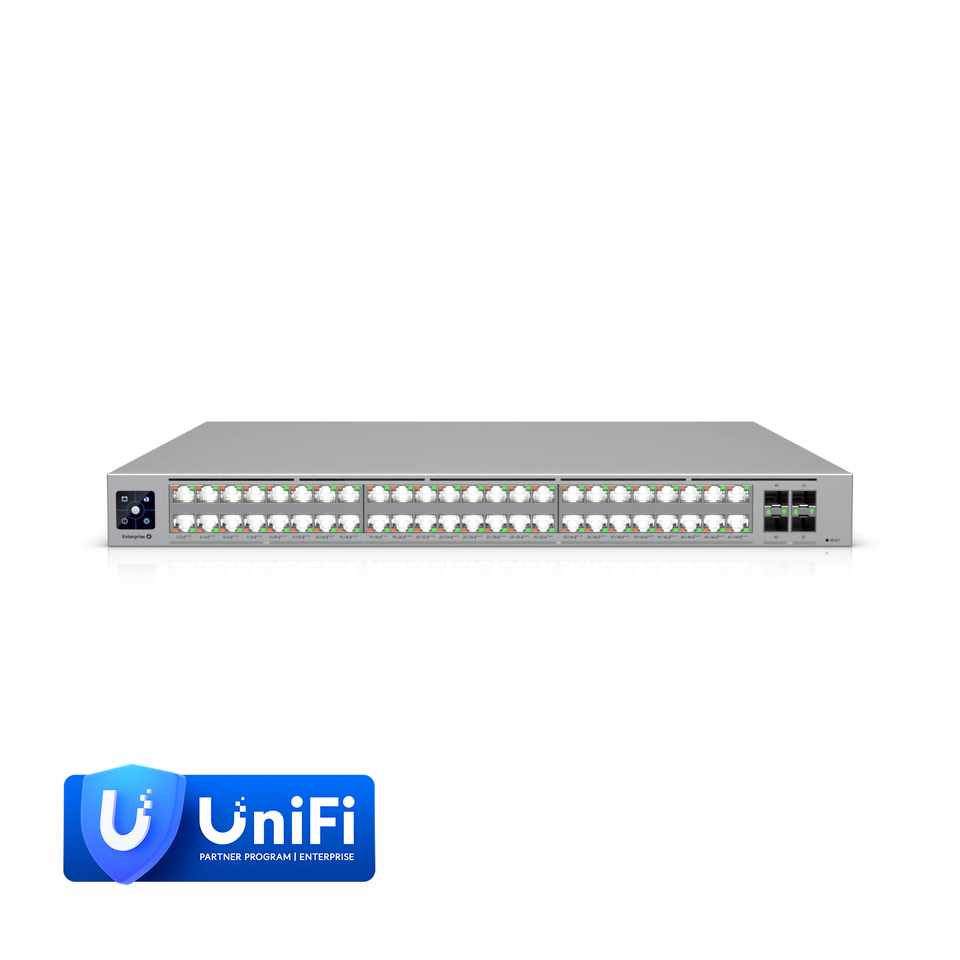

Ubiquiti Enterprise Campus 48‑Port L3 PoE+++ Switch,32×10GbE,16×2.5GbE,4×25G SFP28, 2150W PoE,Ring Topology,Hot‑Swappable Powe&Fan *Require Deal Reg*

Ubiquiti ECS 48 Poe Switch *Require Deal Reg*

SKU: ECS-48-PoE

Description: Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

*Require Enterprise Deal Registration, please register the deal Here before place the order.*
''Want to know more about this product? Click Here to Book a time with our Pre-sales Solutions Experts''

Features:

• (32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable)
• (4) 25G SFP28 ports
• Up to 2,150W PoE availability*
• (2) included hot-swappable power modules
• (4) included hot-swappable fan modules with one backup
• Note. Recommend being paired with Enterprise Campus Aggregation.

Category: Network - UniFi / Campus / Enterprise

Overview

• Dimensions: 442.4 x 43.7 x 496 mm
  (17.4 x 1.7 x 19.5")

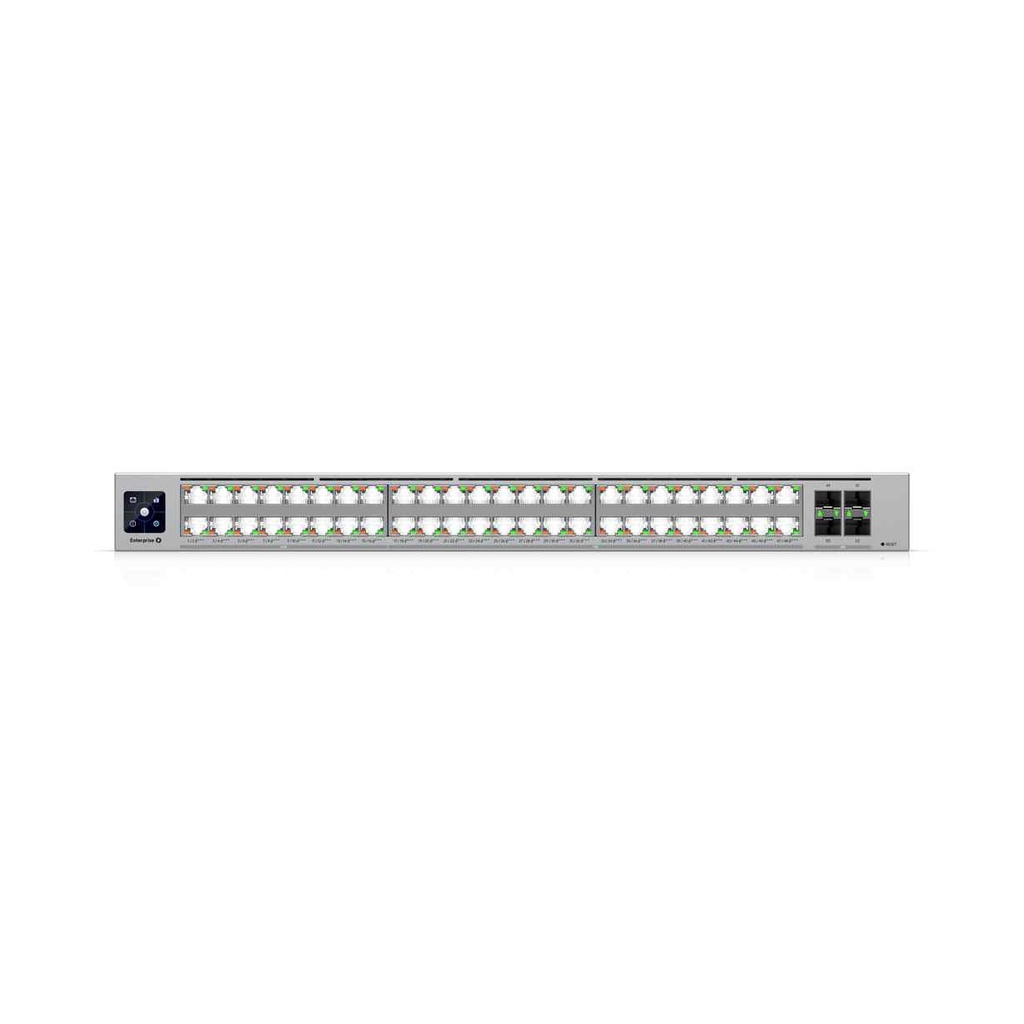

• Port Layout
• 2.5 GbE RJ45: 16 (All PoE+++)
  (2.5G/1G/100M/10M) (10/100M half-duplex not supported)
• 10 GbE RJ45: 32 (All PoE+++)
  (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported)
• 25G SFP28: 4
  (25G/10G/1G)
• Max. PoE Output: Up to PoE+++ (802.3bt Type 4, Class 8)
• Total PoE Availability: 200-240V AC Shared Mode: 2,150W
  100-120V AC Shared Mode: 1,750W
  200-240V AC Redundant Mode: 950W
  100-120V AC Redundant Mode: 750W

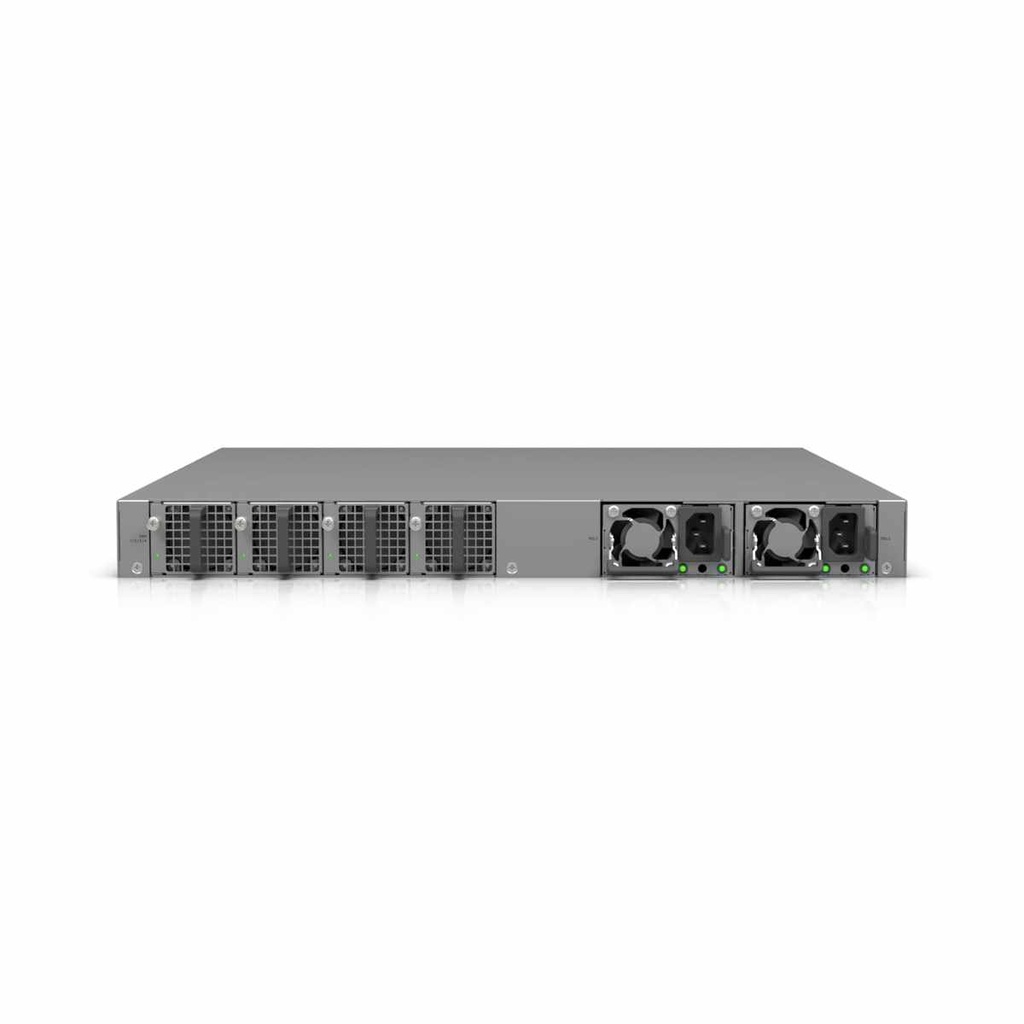

• Redundancy: (2) Hot-Swappable PSUs
  (4) Hot-Swappable Fans
• Layer 3: Yes
• Form Factor: Rack Mount (1U, Full-Depth) (Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support)
• Etherlighting™: Yes

Performance

• Switching Capacity: 920 Gbps
• Total Non-Blocking Throughput: 460 Gbps
• Forwarding Rate: 684 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 512
• Packet Buffer Size: 8 MB
• Access Lists
• IPv4: 256
• MAC: 256

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+++: 48
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W
• PoE+++: 90W
• Max. Power Consumption: 250W (Excluding PoE Output)
  2,400W (Including PoE Output)
• Power Method: (2) Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: (2) AC input, Hot-swappable power modules
• Power Supply: (2) Hot-swappable AC/DC 1,200W power modules
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 785 BTU/hr (Excluding PoE Output)
• Weight: Without mounting brackets: 9.46 kg (20.9 lb)
  With mounting brackets: 9.56 kg (21.1 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks
  Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
• LCM Display: 1.3" touchscreen
• Fan Method: (4) hot-swappable fan modules (Fan modules operate with 3 + 1 redundancy)
• ESD Protection: Air: ± 30kV, contact: ± 19kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing

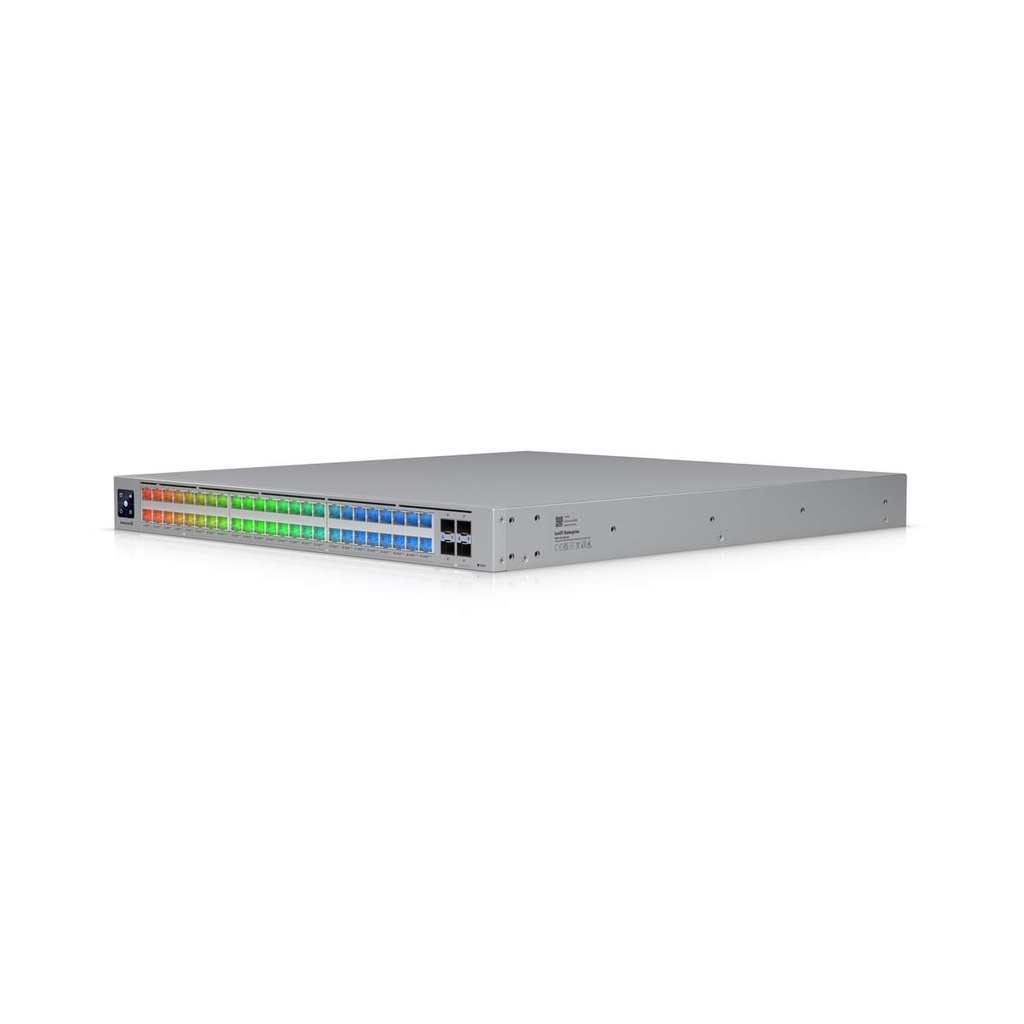

• Etherlighting™
• Ethernet: Yes
• SFP28: Yes
• LEDs
• Ethernet: Yes
• System: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06181-25-08356

Software

• Application Requirements
• UniFi Network: Version 9.0.114 and later
