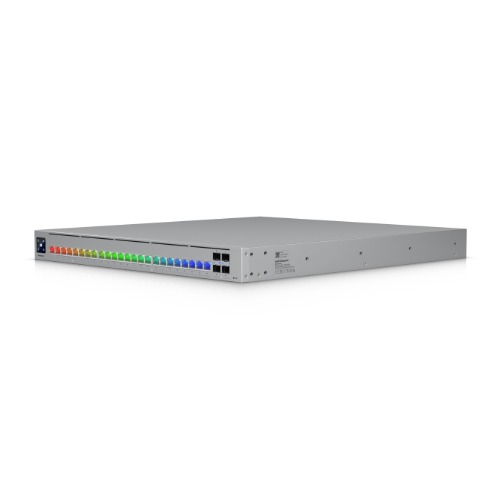

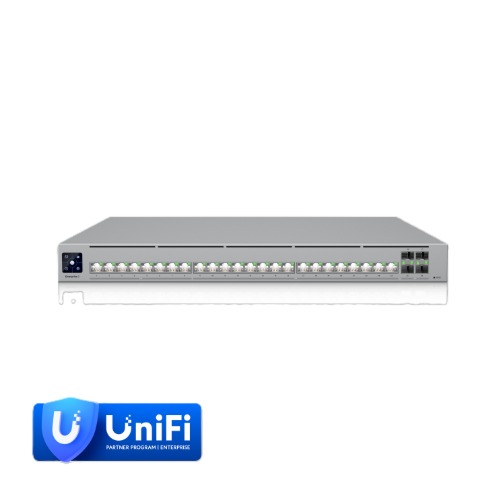

Ubiquiti Enterprise Campus 24S,Enterprise-Grade 24-Port,Layer 3 Etherlighting™ Switch Stacking,High-Capacity 10GbE RJ45,25G SFP28 *Require Deal Reg*

Ubiquiti Enterprise Campus 24S *Require Deal Reg*

SKU: ECS-24S

Description:
Enterprise-grade 24-port, Layer 3 Etherlighting™ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Enterprise Deal Registration

*Require Enterprise Deal Registration, please register the deal Here before place the order.*

Category: Network - UniFi / Campus / Enterprise

Overview

• Dimensions: 442.4 x 44 x 496 mm
  (17.4 x 1.7 x 19.5")

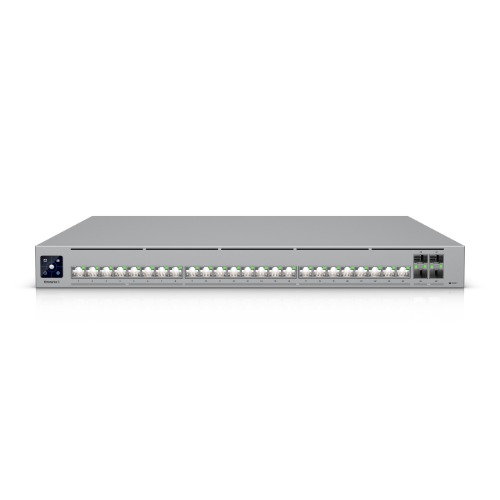

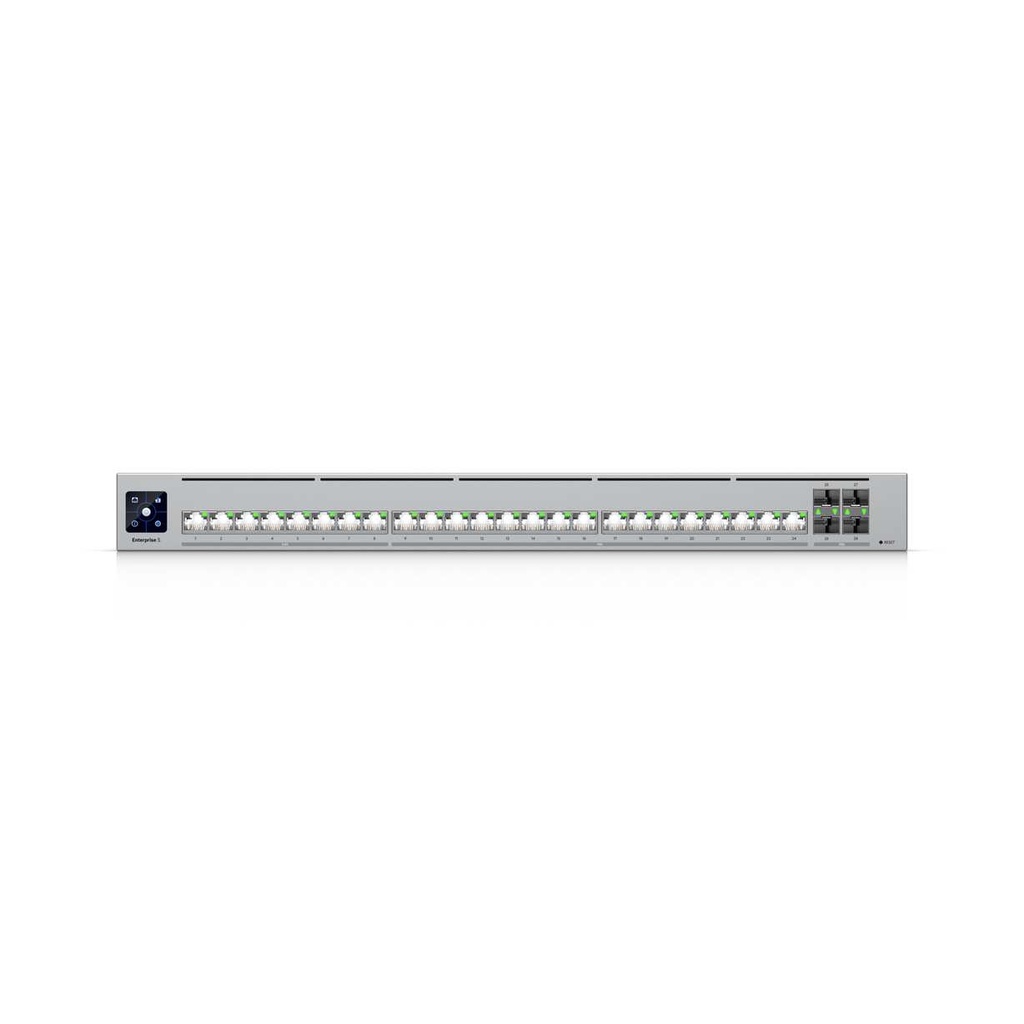

• Port Layout
• 1 GbE RJ45: 1
  (1G/100M/10M) (OOB Management port only)
• 2.5 GbE RJ45: 8
  (2.5G/1G/100M/10M) (10/100M half-duplex not supported)
• 10 GbE RJ45: 16
  (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported)
• 25G SFP28: 4
  (25G/10G/1G)
• 100G QSFP28: 2
  (100G) (Stacking port only, does not support uplink. Breakout cables are not supported)
• Console: 1

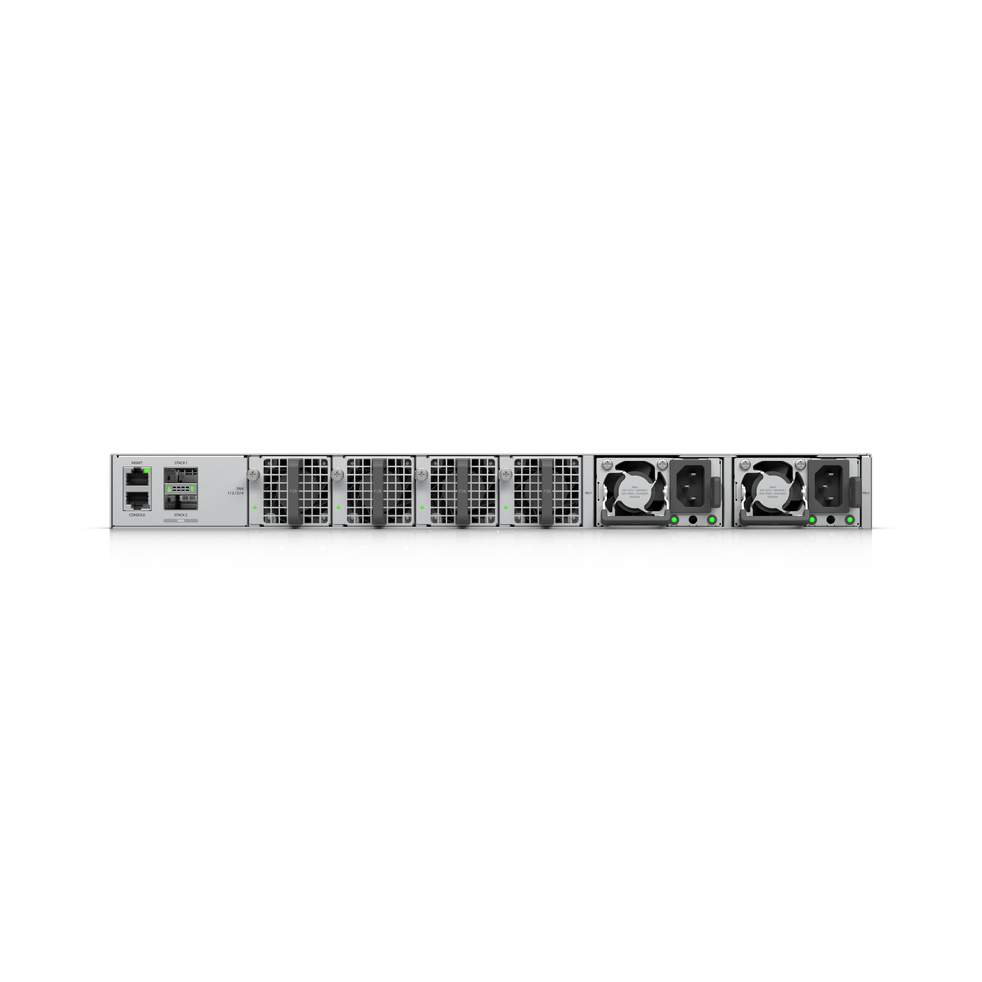

• Redundancy: Switch Stacking
  (2) Hot-Swappable PSUs
  (4) Hot-Swappable Fans
• Layer 3: Yes
• Form Factor: Rack Mount (1U, Full-Depth) (Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support)
• Etherlighting™: Yes

Performance

• Switching Capacity: 460 Gbps
• Total Non-Blocking Throughput: 230 Gbps
• Forwarding Rate: 342 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 512
• Packet Buffer Size: 8 MB
• Access Lists
• IPv4: 256
• MAC: 256

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• Stacking: Yes
• Cross-Stack LAG: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 150W
• Power Method: (2) Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: (2) AC input, Hot-swappable power modules
• Power Supply: (2) Hot-swappable AC/DC 550W power modules
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  OOB Management port
  Serial Console
  AR
• Heat Dissipation: 512 BTU/hr
• Weight: Without mounting brackets: 9.6 kg (21.1 lb)
  With mounting brackets: 9.7 kg (21.3 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks
  Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
• LCM Display: 1.3" touchscreen
• Fan Method: (4) Hot-swappable fan modules (Fan modules operate with 3 + 1 redundancy)
• ESD Protection: Air: ± 12kV, contact: ± 8kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• Ethernet: Yes
• SFP28: Yes
• LEDs
• Ethernet: Yes
• SFP28: Yes
• Power Output: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC

Software

• Application Requirements
• UniFi Network: Version 10.6.101 and later
