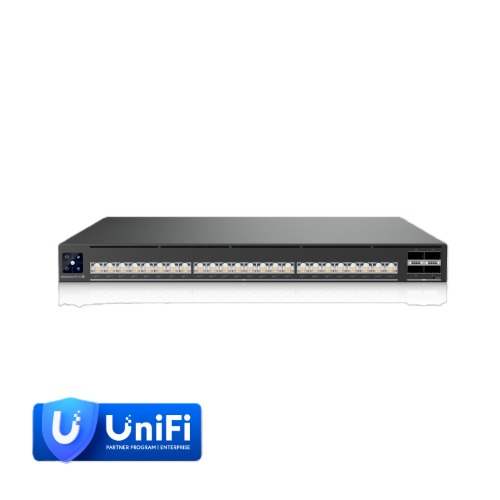

Ubiquiti EAV-XG-24-PoE,Enterprise Audio/Video Switch(24)10G PoE+++ Ports(4)100G QSFP28 Uplinks.PTP timing,SMPTE ST 2110,SDVoE,AES67 *Require Deal Reg*

Ubiquiti Enterprise Audio/Video XG 24 PoE *Require Deal Reg*

SKU: EAV-XG-24-PoE

Description: Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media syncing.

*Require Enterprise Deal Registration, please register the deal Here before place the order.*

Category: Network - UniFi / Campus / Enterprise

Overview

• Dimensions: 442.4 x 480 x 43.7 mm
  (17.4 x 18.9 x 1.7")

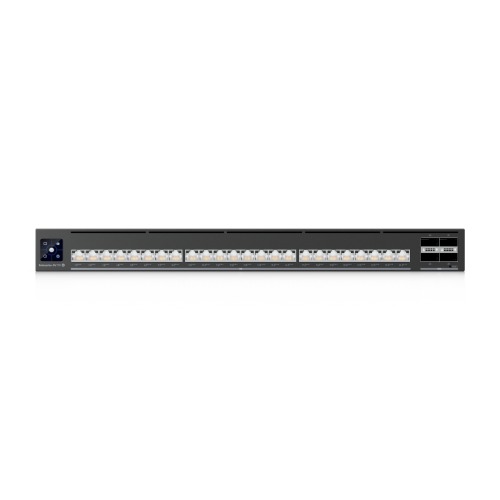

• Port Layout
• 1 GbE RJ45: 1
  (1G/100M/10M)
• 10 GbE RJ45: 24 (All PoE+++)
  (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported)
• 100G QSFP28: 4
  (100G/40G) (Breakout cables are not supported)
• Console: 1
• SMA: 1 (GPS input for Grandmaster clock mode)
• Max. PoE Output: Up to PoE+++
• Total PoE Availability: 200-240V AC Shared Mode: 2,150W with (2) 1,200W modules
  100-120V AC Shared Mode: 1,850W with (2) 1,200W modules
  200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules
  100-120V AC Redundant Mode: 850W with (2) 1,200W modules

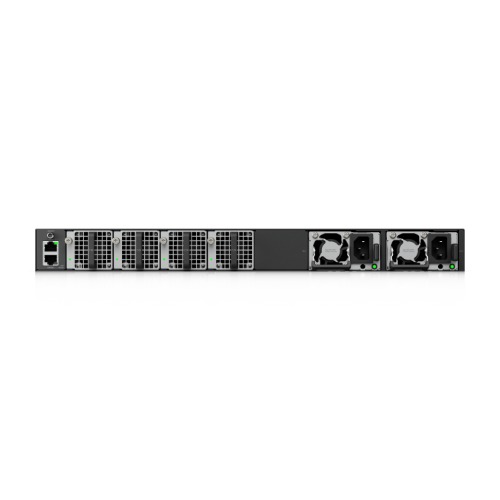

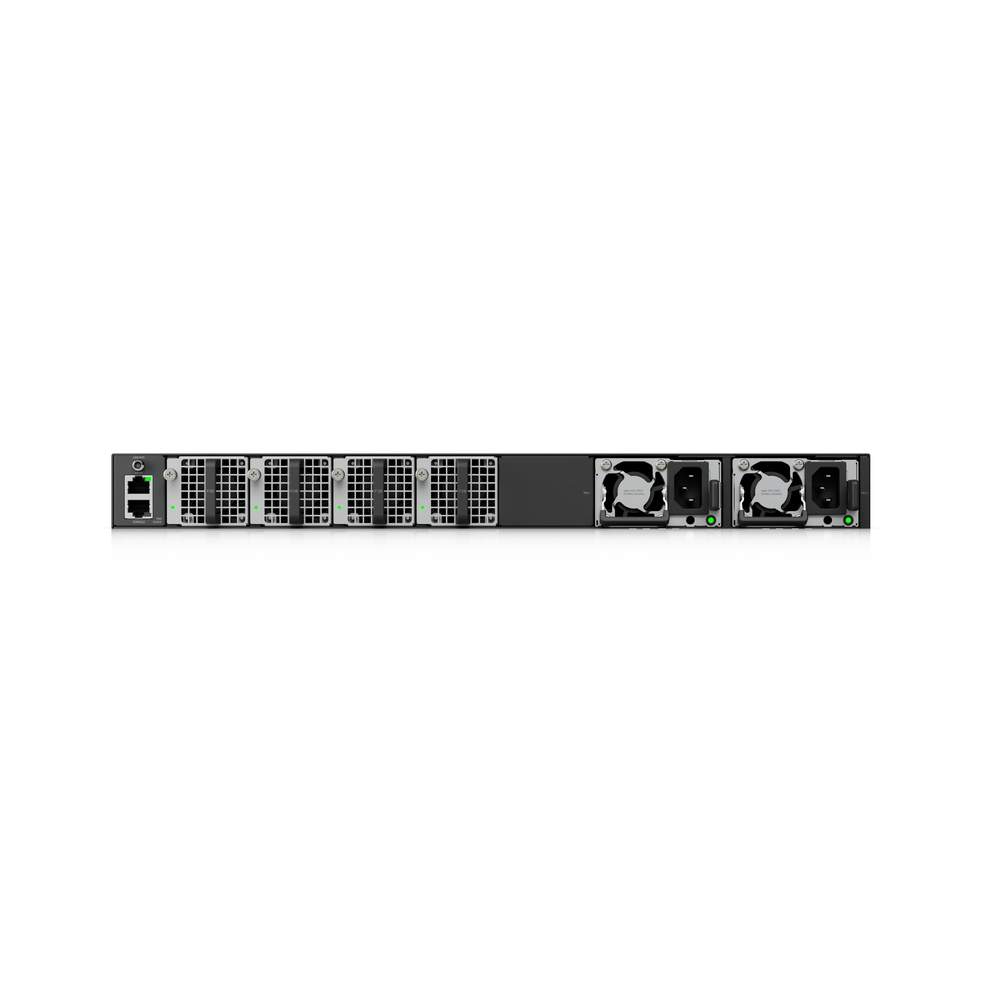

• Redundancy: (2) Hot-Swappable PSUs
  (4) Hot-Swappable Fans
• Layer 3: Yes
• Form Factor: Rack Mount (1U, Full-Depth) (Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support)
• Etherlighting™: Yes

Performance

• Switching Capacity: 1,280 Gbps
• Total Non-Blocking Throughput: 640 Gbps
• Forwarding Rate: 810 Mpps
• PTPv2: Yes
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 512
• Packet Buffer Size: 8 MB
• Access Lists
• IPv4: 256
• MAC: 256

Precision Time Protocol (PTP)

• IEEE 1588-2008 PTPv2: Yes
• Hardware Timestamping on All Ethernet and QSFP28 Ports: Yes
• Clock Roles: Grandmaster, Boundary Clock, and Transparent Clock: Yes
• Boundary Clock Operation: Two-step Only: Yes
• Profiles: IEEE1588, SMPTE 2059-2, AES67, and AES-R16: Yes
• End-to-End (E2E) Delay Mechanism: Yes
• Layer 2 Ethernet and UDP/IPv4 Transport: Yes
• Custom Profile Configuration:
• Sync, Announce, and Delay Request Intervals from −3 to +4: Yes
• Announce Receipt Timeout from 2 to 9: Yes
• Configurable PTP Domain Number: Yes
• BMCA with Configurable Priority1 and Priority2: Yes

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+++: 24
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W
• PoE+++: 90W
• Max. Power Consumption: 150W (Excluding PoE Output)
  2,400W (Including PoE Output)
• Power Method: (2) Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: (2) AC input, Hot-swappable power modules
• Power Supply: (2) Hot-swappable AC/DC 1,200W power modules
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
  Serial Console
• Heat Dissipation: 512 BTU/hr (Excluding PoE Output)
• Weight: Without mounting brackets: 9.85 kg (21.7 lb)
  With mounting brackets: 9.95 kg (21.9 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks
  Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
• LCM Display: 1.3" touchscreen
• Fan Method: (4) Hot-swappable fan modules (Fan modules operate with 3 + 1 redundancy)
• ESD Protection: Air: ± 2KV, contact: ± 8KV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing

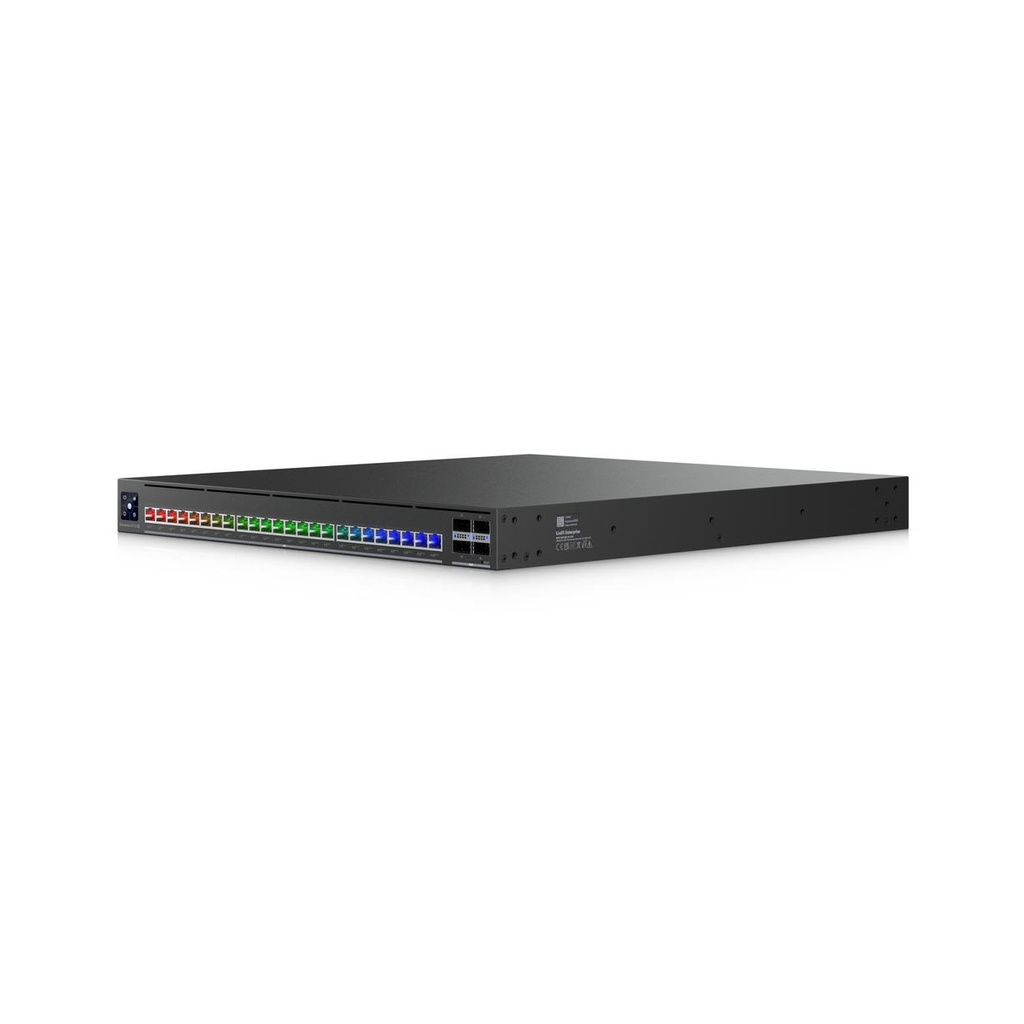

• Etherlighting™
• Ethernet: Yes
• QSFP28: Yes
• LEDs
• Ethernet: Yes
• PSU: Yes
• Fan: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC
