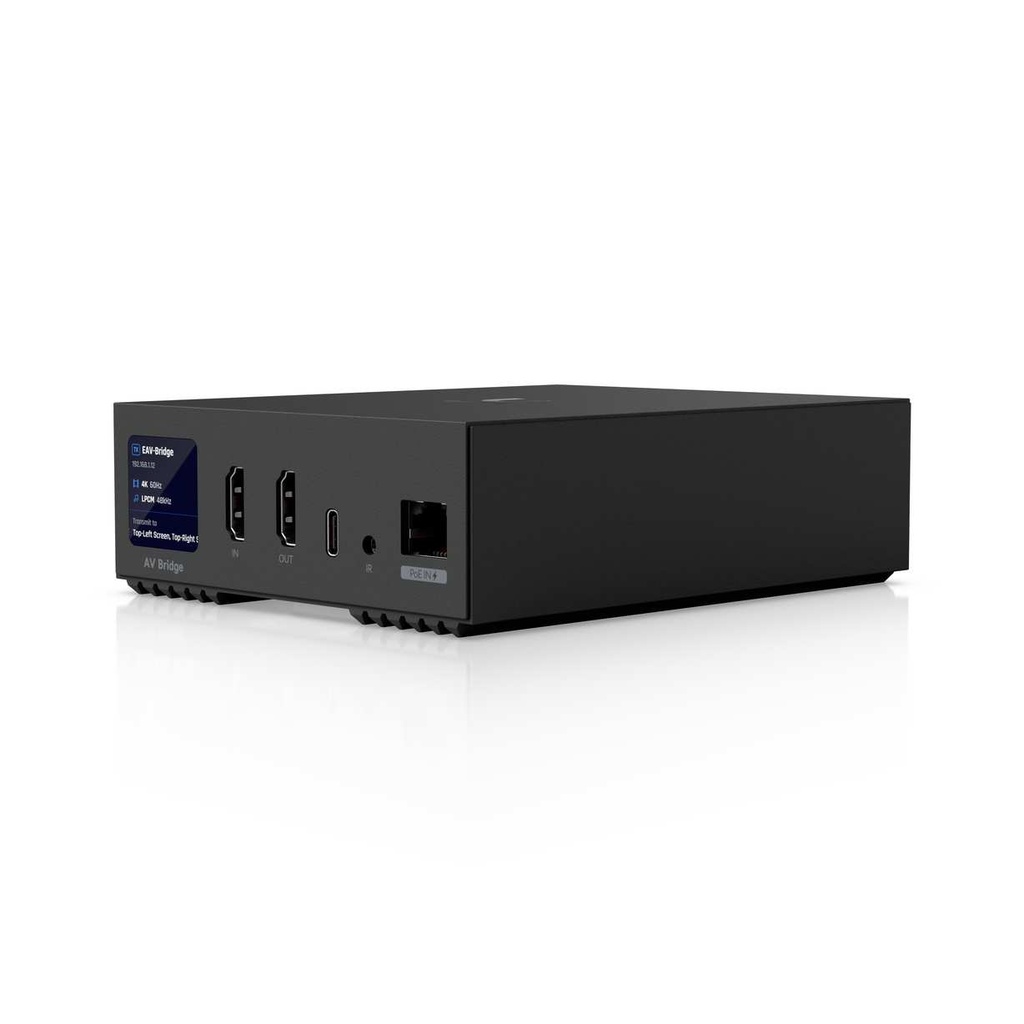

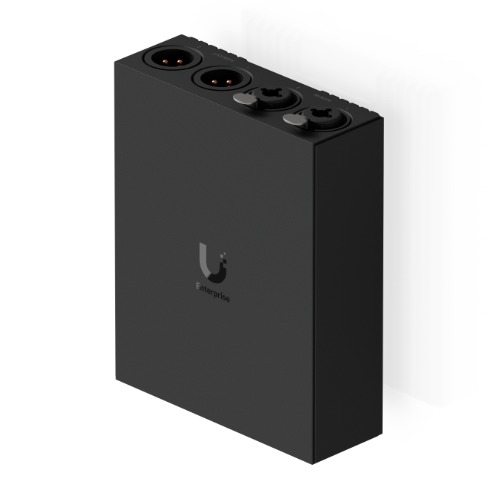

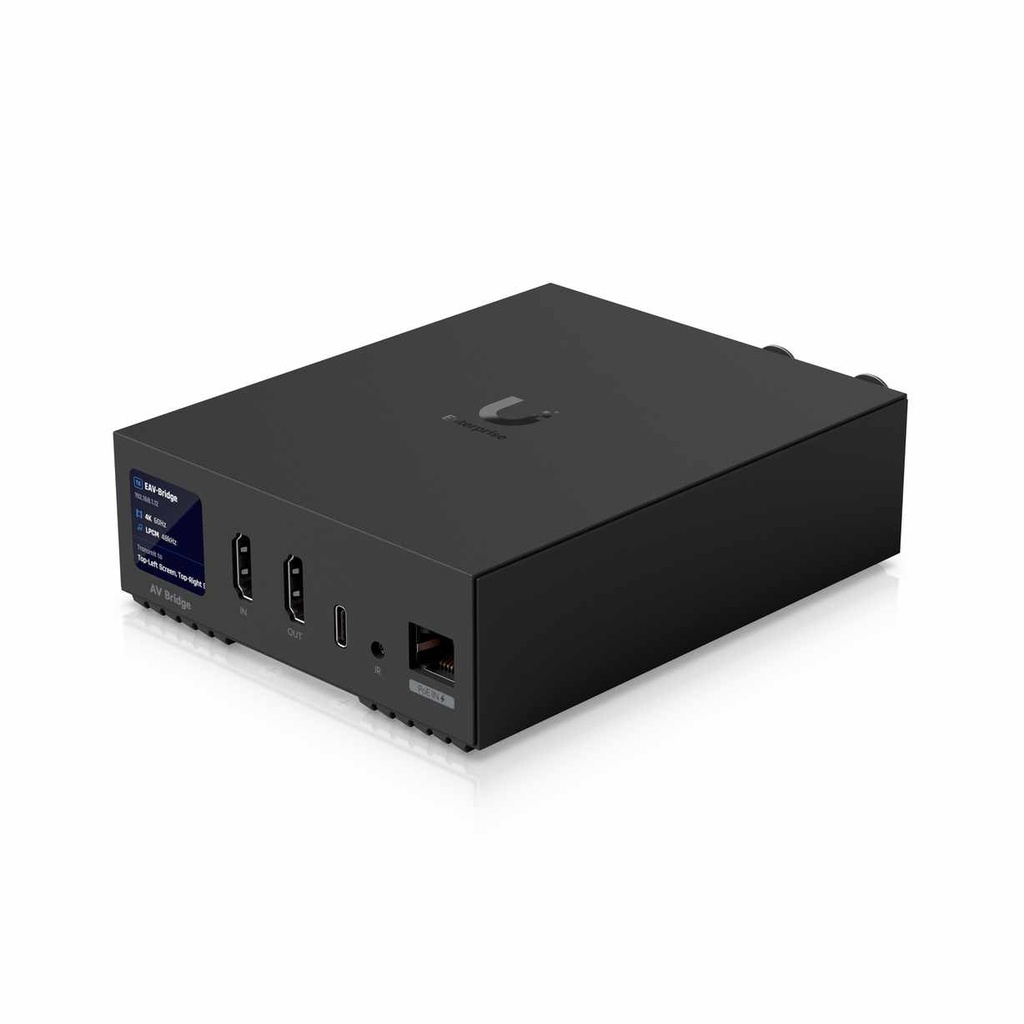

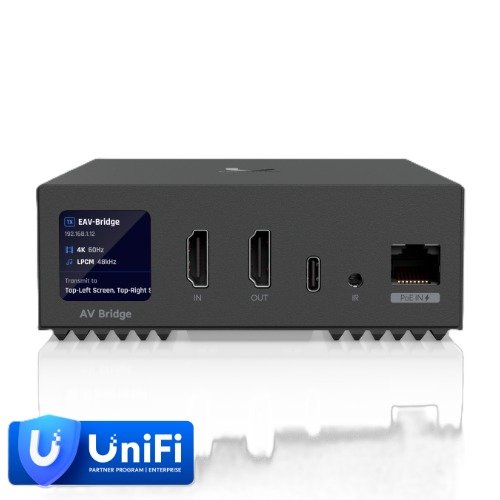

Ubiquiti Enterprise Audio/Video Bridge,PoE+Powered AV-Over-IP Transceiver,Bridges 4K60 HDMI,Professional XLR Audio *Require Deal Reg*

Ubiquiti Enterprise Audio/Video Bridge *Require Deal Reg*

SKU: EAV-Bridge

Description: PoE+ Powered AV-Over-IP Transceiver,Bridges 4K60 HDMI,Professional XLR Audio As Source/Destination.

*Require Enterprise Deal Registration, please register the deal Here before place the order.*

Category: Network - UniFi / Campus / Enterprise

Mechanical

• Dimensions: 109 x 134.4 x 40.4 mm
  (4.3 x 5.3 x 1.6")
• Weight: 560 g (1.2 lb)
• Enclosure Material: Aluminum

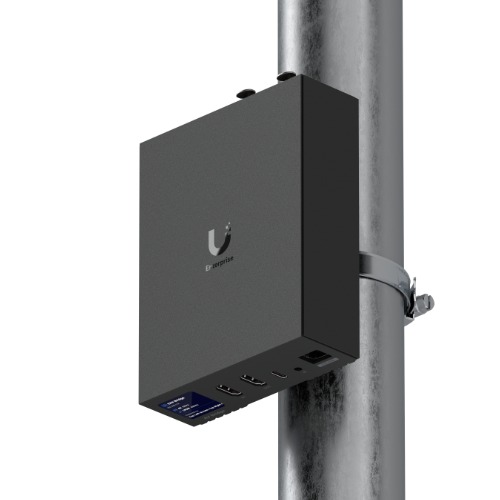

• Mounting: DIN rail, Wall, Pole (Included)
• Pole Mount Diameter: 1.5–2" (38–50 mm)

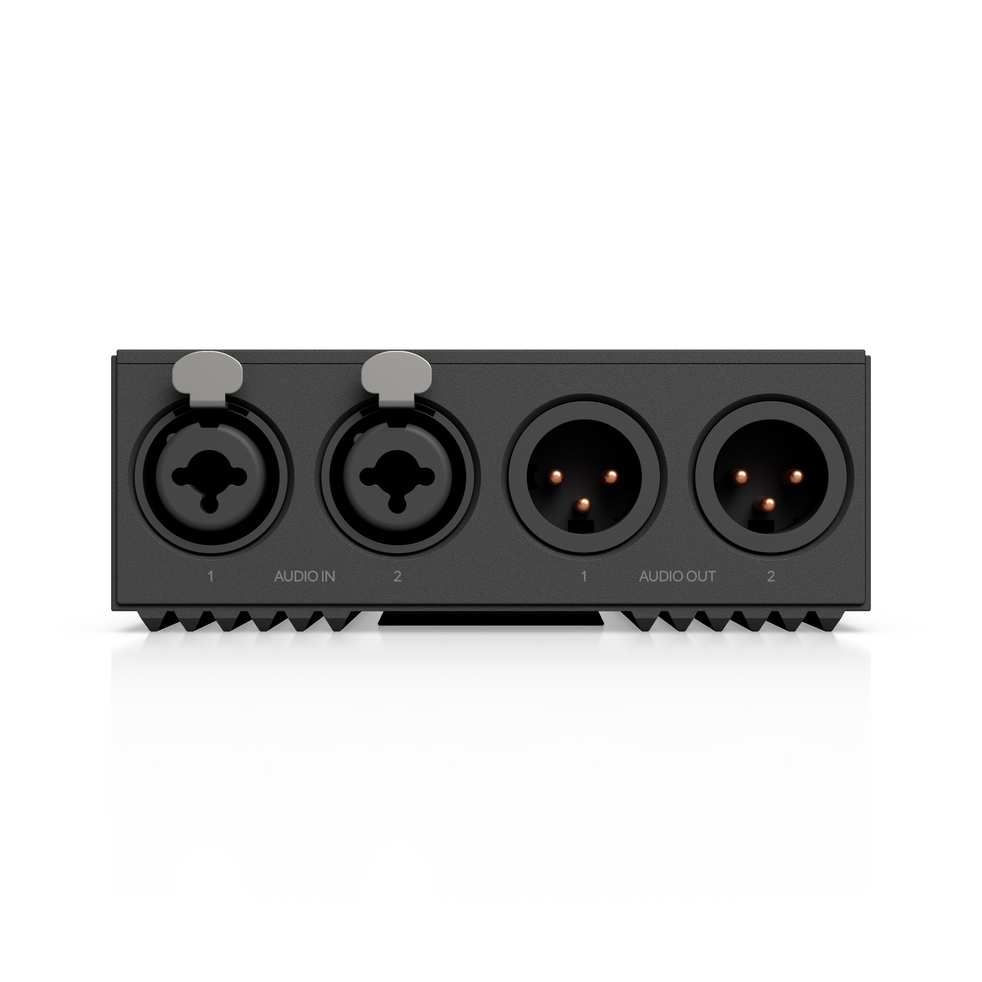

Audio

• Output: Mono / Stereo sound
• Surround Format: PCM
• Audio Input: (1) HDMI in
  (2) XLR female analog with 6.35 mm analog combo input, phantom power: 48V DC supported
• Audio Output: (1) HDMI out
  (2) XLR male analog output
• Frequency: 20 Hz – 20k Hz ±0.5dB

Video

• Video Input: (1) HDMI 2.0, 4K at 60 Hz (60 FPS)
• Video Output: (1) HDMI 2.0, 4K at 60 Hz (60 FPS)
• Video Content Support: 480p / 720p / 1080p / 4K
• Signal Distribution: 1-to-1, 1-to-N streaming
  1 to 8x8 TV wall configuration

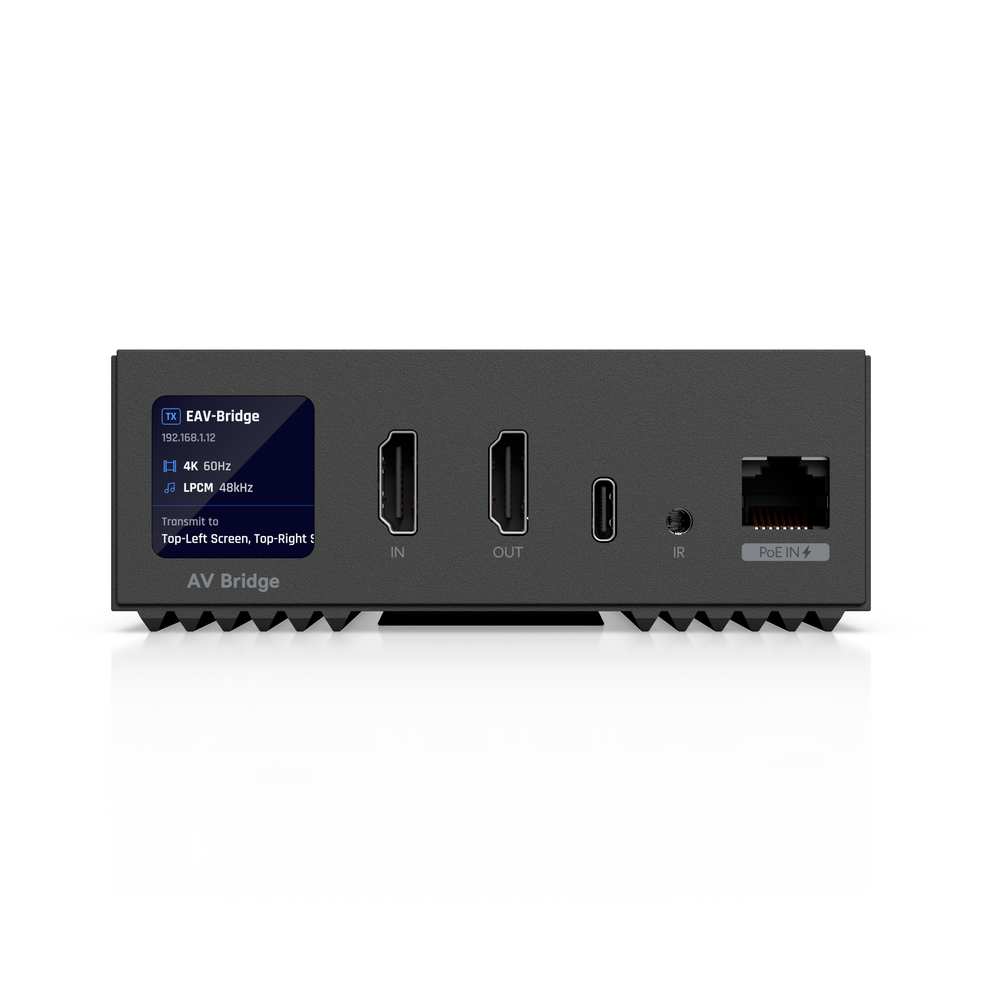

Hardware

• Networking Interface: (1) GbE RJ45 PoE+ In Etherlighting™ port
• Versatile Port: (1) USB Type-C 5V, 1A
• IR Connection: (1) 3.5 mm Input or Output
• Power Method: PoE+
• Max. Power Consumption: 14W
• Etherlighting™
• Ethernet: Yes
• LCM Display: (1) 1.3” touchscreen
• Button: (1) Factory reset
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: FCC, IC, CE
