ZEBRA GAMBER VEHICLE DOCK L10 ANDROID NO/PTA

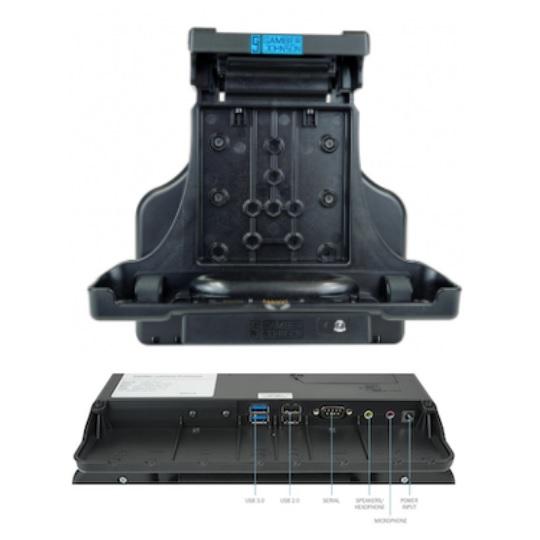

GAMBER JOHNSON VEHICLE DOCK, L10 ANDROID, 1 RS232, 4 USB 2.0, MICROPHONE, HEADSET / SPEAKERS, PWRS SOLD SEPARATELY • Designed for rugged vehicle/fork lift operations. • Provides the following ports: - Power (barrel jack) - 2 USB 3.0 providing 900maH current - ports operate as USB 2.0 - 2 USB 2.0 providing 500maH current - 1 hidden USB port behind access door - 1 powered serial port (via Pin 9) - 3.5mm speaker/headphone - 3.5mm microphone - External antenna ports (based on SKU) • Two USB 900maH USB ports can power DS3508-ER/DS3608-ER in default full power mode. • Serial port includes switch for enabling/disabling power to pin 9. When enabled can power the DS3508-ER/DS3608-ER in default full power mode. • LED indicator lights show when "tablet is docked" and "dock is powered" • Compatible with all L10 series models except ATEX/IECEX versions which have a thicker armoured case. • Supports VESA 75mm, 50 x 100MM, AMPS, NEC mounting patterns. • Includes key lock.
