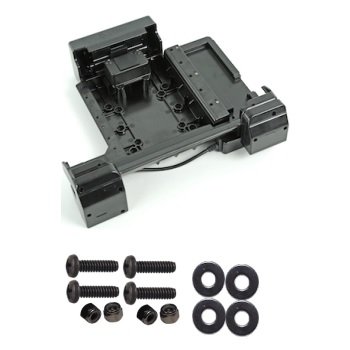

ZEBRA DOCK VEHICLE CHARGE/COMM TC8X

Charge/Communication Vehicle Dock

• Enhanced dock adds to Charge-Only dock providing the following features:

- 7-Port Expander Module (PEM), no Video provides these communication ports:
- (2) USB-A 3.0/2.0
- (2) USB-A 2.0
- (3) 10/100/1000 Ethernet RJ45, ideal for connecting to in-vehicle surveillance equipment

• Holds tablet in place under extreme vibration and stress - typically in vehicle/fork lift installations.
• Barrel-style keylock provides secure vehicle docking. Includes two keys. All locks use a common key.
• Easy one-hand release allows for fast “grab and go” transitions between the vehicle, field, and office.
• Resistant to water and dust ingress (IP65).
• E-Mark certified for 12V vehicle systems.
• Supports VESA 100x100, VESA 75x75 mounting patterns.
• Includes four 10-32 7/8" pan head Phillips screws and nylock nuts for mounting.
• USB ports capable of providing enough current for DS3608-ER in default full-power mode.
• Compatible with Rugged Boot, Expansion Back accessories and Companion Keyboard.
• All connectors on sides of tablet, camera and integrated barcode scanner remain accessible while in dock.
