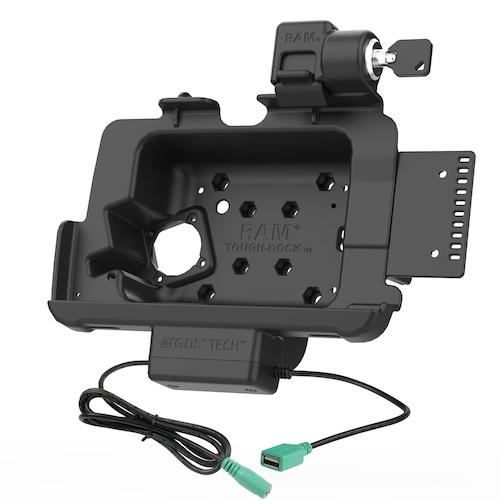

ZEBRA RAM CRADLE CHARGE/COMM SGL/USB ET40/45 8IN

RAM EZ-Roll'r Power + Data vehicle dock (Non-Locking version) for ET40 / 45 8-inch with Zebra exoskeleton.

Notes

• Cradle for ET4X 8” or 10" - for Vehicle/Forklift/ Wall installations
• Compatible with devices with Expansion Back w/Rotating Hand strap installed.
• Provides one USB-A port for connecting peripherals like keyboards or barcode scanners.
• The USB port will NOT power DS3608-ER scanner in default power mode. Scanner will need to use ER Low Power option to work properly.
• Does not block access to the tablet's built in scanner.
• Selectable versions include lock for securing tablet in cradle.

Required Items

• ET4X must have Exoskeleton/Rugged Boot installed (SG-ET4X-8EXOSKL1-01 for 8" tablets - SG-ET4X-10EXOSKL1-01 for 10" tablets) OR install RAM Inserts (3PTY-RAP-INS-ZE21LU) in cradle to use without boot.
• For Charging:

In-vehicle:
RAM GDS Modular Charger, vehicle powered (3PTY-RAM-GDS-CHARGE-V10U)
AC wall power:
RAM GDS Modular Charger, AC powered (3PTY-RAM-ACDC60)

• For Mounting:

Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Specifications

• Interface: USB
• Type: Charging Cradle/Dock
• Model: ET40, ET45
