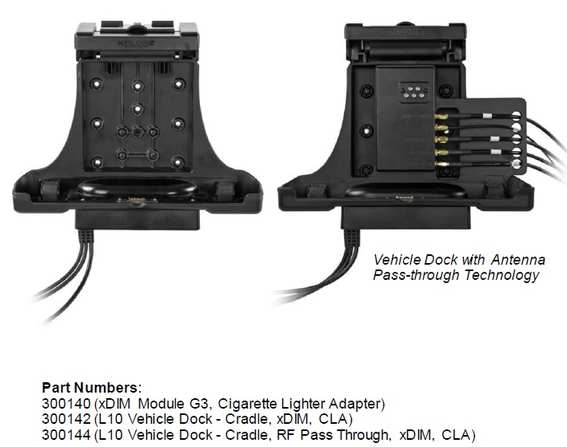

ZEBRA DOCK VEHICLE RF PASS THROUGH/DIM/CLA L10

Vehicle Dock - powered with xDIM module and RF Pass Through Antennas - For L10 - Holds rugged tablet in place under extreme vibration and stress. - Shock and Vibration: Minimum Integrity Vibration: Category 24 Unit is not operating (Tablet with Dock and Vehicle Kit) MIL-STD-810G, Method 514.6, Procedure I - Vehicle Vibration: Unit is operating (Tablet with Dock and Vehicle Kit) MILSTD-810G, US Highway Truck and Composite Wheel, Method 514.6C-1 and 514.6C-3 - Functional Shock: 40 g operating (peak); 11 ms, saw tooth 6+/- shocks x 3-axis=18 shocks MIL-STD-810G, Method 516.6, Procedure I - Barrel-style keylock provides secure vehicle docking. - Easy one-hand release allows for fast “grab and go” transitions between the vehicle, field, and office. - Resistant to water and dust ingress (IP55). - Provides charging via included Cigarette Lighter adapter - compatible with 12-14V vehicle systems. - Provides two USB 2.0 ports which are powered from the tablet. External power not required for ports to operate. - USB ports capable of providing enough current for DS3608-ER in default full-power mode. - USB cables should be terminated in dry area of the vehicle. - Dock provides MIMO WWAN (2 connections), MIMO WLAN (2 connections), and GPS antenna pass-through connections for improved in-vehicle signal strength and throughput (external antennas and cables purchased separately). - Compatible with all L10 series models with antenna pass-through on back of tablet option. - Not compatible with ATEX/IECEX versions of L10 which have a thicker armored case. - Supports VESA 100x50 and VESA 100x100 hole mounting pattern. - Includes four screws for mounting. - For other powering options besides 12-14V Cigarette Lighter Adapter, see section below.
